SELECTION GUIDE

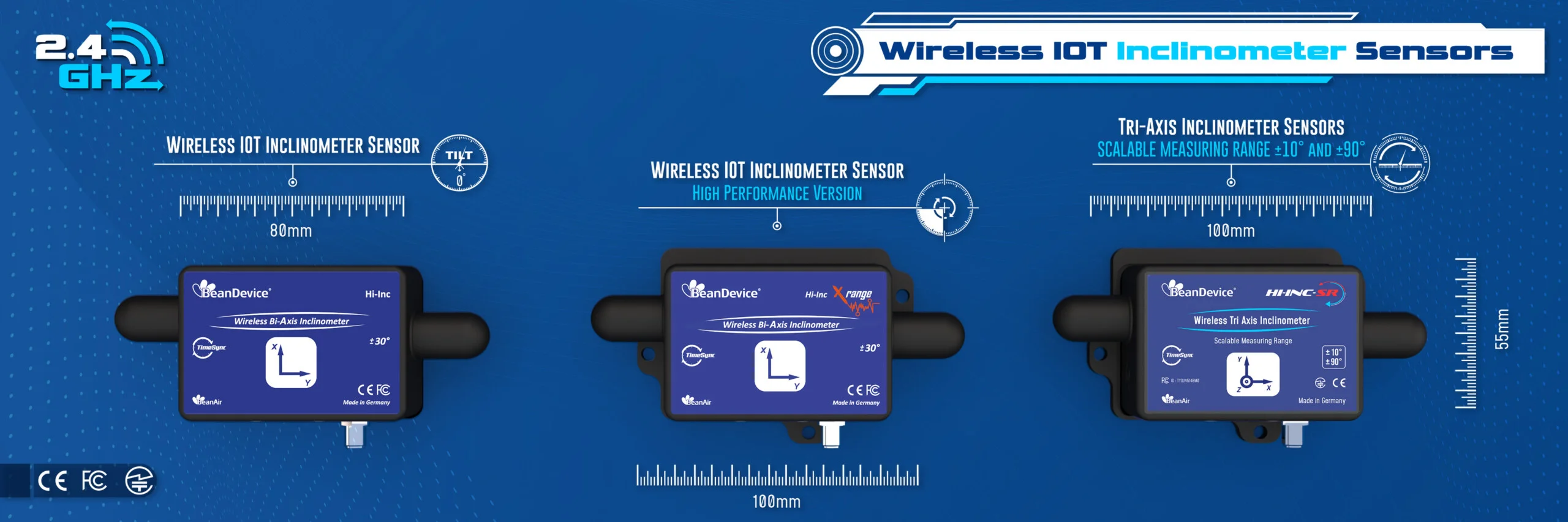

BeanDevice® 2.4GHz | Wireless IOT Inclinometer Sensors

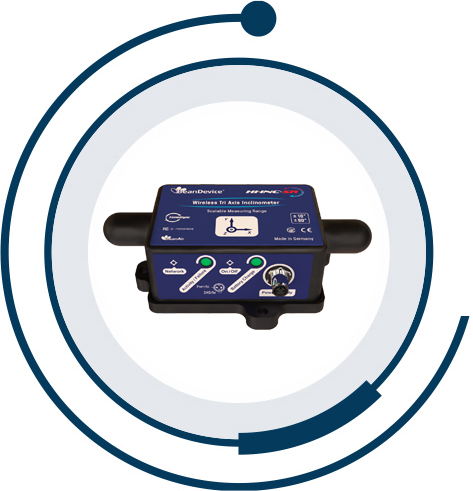

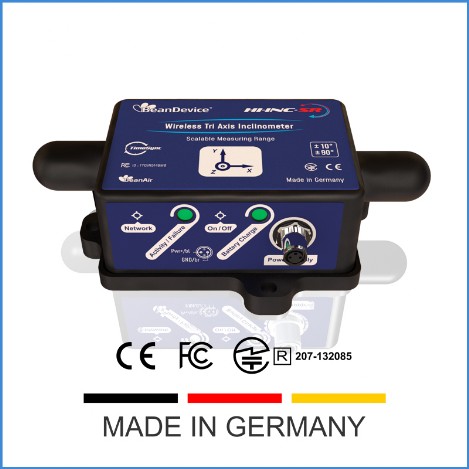

BeanDevice® 2.4GHz | HI-INC-SR
Wireless Tri-Axis inclinometer sensor
Scalable Measuring Range
 | Reference & Measurement Range | BND-2.4GHZ-HI-INC-SR-10T-SCM | BND-2.4GHZ-HI-INC-SR-10T-XT-MM |
 | Scalable Measurement Range | ±10° or ±90°, with automatic range adjustment depending on the application | |
 | Sensor precision (full scale, @ 25°C, Static Measurement Mode every 2s) | ±0.005° for ±10° measurement range ±0.009° for ±90° measurement range | |
 | Sensor Technology | Accurate and low power MEMS technology | |
 | Sensor Resolution | 0.003° | |
 | Power Mode available | Battery saver mode & Active power mode (not available on XT version, External power supply) | |
 | Data Logger Size | 8 million logs | |
 | Casing | Waterproof IP67 aluminum enclosure , Dimensions in mm (LxWxH): 100 x 71 x 36 Weight : 225g (screw mounting) | |

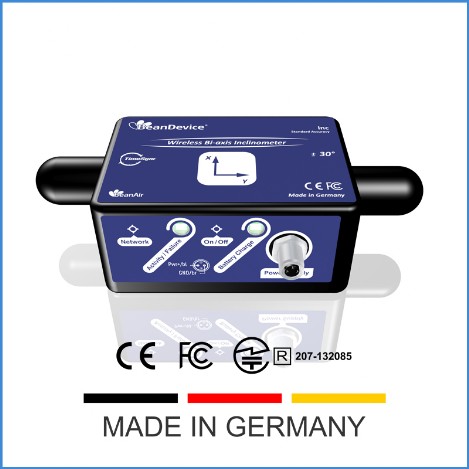

Wireless inclinometer sensor
Low-cost version
 | Reference & Measurement Range | BND-2.4GHZ-INC-30B-RB | BND-2.4GHZ-INC-90B-RB | BND-2.4GHZ-INC-30B-XT | BND-2.4GHZ-INC-90B-XT |
| Measurement Range | ±30° | ±90° | ±30° | ±90° |
 | Sensor Technology | Bi-axial MEMS Inclinometer |
| Sensor Resolution | ±0.0025° |
 | Sensor repeatability (fullscale @25 °C) | ±0.1° |
| Power Mode available | Active and Battery saver power modes | Battery saver power modes |
 | Available Measurement mode | Low Duty Cycle and Alarm, mode 1s to 24h, Streaming (60SPS) | Low Duty Cycle and Alarm, mode 1s to 24h |
 | Internal Battery | Rechargeable, Lithium-Polymer battery, 2Ah | No Internal battery |
| Data Logger Size | 1 million logs |
| Casing | Waterproof IP67 aluminum enclosure , Dimensions in mm (LxWxH): 80x55x36 , Weight : 155g |
 | Mounting Option | Adhesive Mounting |

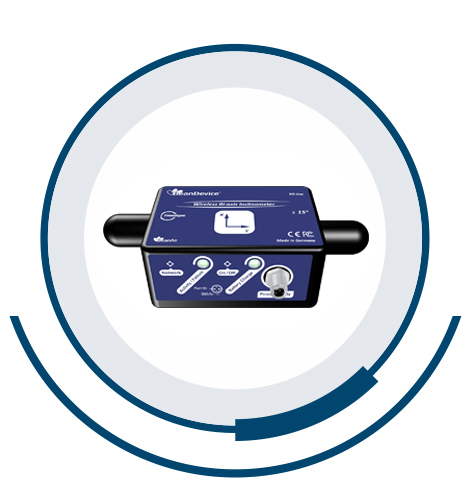

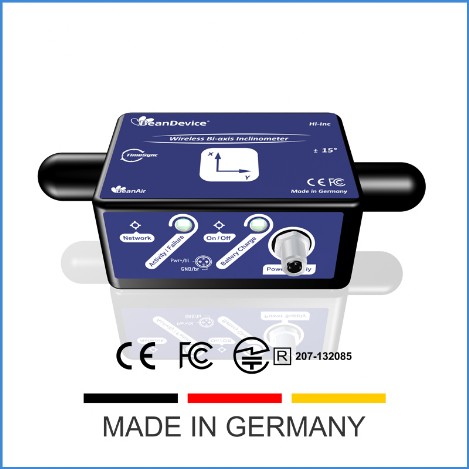

Wireless IOT Inclinometer Sensor
| Reference & Measurement Range | BND-2.4GHZ-HI-INC-30B-XT | BND-2.4GHZ-HI-INC-30B-RB |
| Measurement Range | ±30° |
| Sensor Technology | Bi-axial MEMS Inclinometer |
| Sensor Resolution | ±0.001° |
| Sensor repeatability (fullscale @25 °C) | ±0.006° for bi-axis ±30° version |
| Power Mode available | Active and Battery saver power modes | Battery saver power modes | Active and Sleep power modes |
| Available Measurement mode | Low Duty Cycle and Alarm
mode 1s to 24h, Streaming (60SPS) | Low Duty Cycle and Alarm mode 1s to 24h | Low Duty Cycle and Alarm
mode 1s to 24h, Streaming (60SPS) |
| Internal Battery | Rechargeable Lithium-Polymer battery 2Ah |
| Data Logger Size | 1 million logs |
| Casing | Waterproof IP67 aluminum enclosure , Dimensions in mm (LxWxH): 80x55x36 , Weight : 155g |
| Mounting Option | Adhesive Mounting |

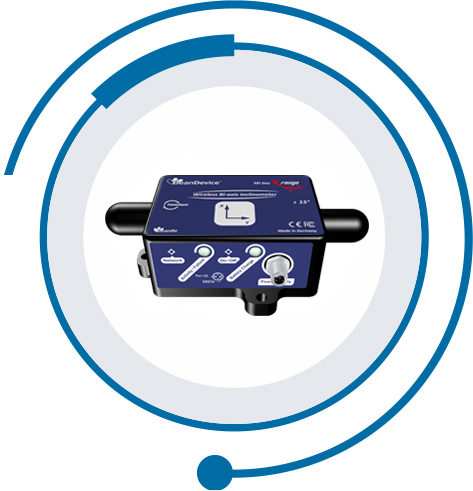

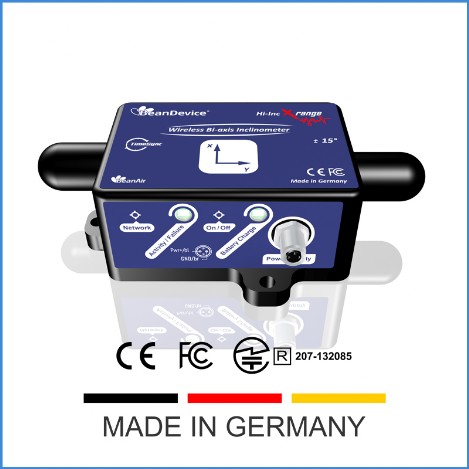

Wireless inclinometer sensor
High-Performance version
SCREW MOUNTING OPTION-SCM
 | Reference & Measurement Range | BND-2.4GHZ-HI-INC-30B-XR-RB-SCM | BND-2.4GHZ-HI-INC-30B-XR-XT-SCM |
| Measurement Range | ±30° | ±30° |
| Sensor Technology | Bi-axial MEMS Inclinometer |
| Sensor Resolution | ±0.001° |
| Sensor repeatability (fullscale @25 °C) | ±0.006° for bi-axis ±30° version |
| Power Mode available | Active and Battery saver power modes | Battery saver power modes |
| Available Measurement mode | Low Duty Cycle and Alarm mode 1s to 24h, Streaming (60SPS) | Low Duty Cycle and Alarm mode 1s to 24h |
| Internal Battery | Rechargeable, Lithium-Polymer battery, 2Ah | No Internal battery |
| Data Logger Size | 8 million logs |
| Casing | Waterproof IP67 aluminum enclosure , Dimensions in mm (LxWxH): 100 x 71 x 36 Weight : 225g (screw mounting) |
MAGNETIC MOUNTING OPTION-MM
| Reference & Measurement Range | BND-2.4GHZ-HI-INC-30B-XR-RB-MM | BND-2.4GHZ-HI-INC-30B-XR-XT-MM |
| Measurement Range | ±30° | ±30° |
| Sensor Technology | Bi-axial MEMS Inclinometer |
| Sensor Resolution | ±0.001° |
| Sensor repeatability (fullscale @25 °C) | ±0.006° for bi-axis ±30° version |
| Power Mode available | Active and Battery saver power modes | Battery saver power modes |
| Available Measurement mode | Low Duty Cycle and Alarm mode 1s to 24h, Streaming (60SPS) | Low Duty Cycle and Alarm mode 1s to 24h |
| Internal Battery | Rechargeable, Lithium-Polymer battery, 2Ah | No Internal battery |
| Data Logger Size | 8 million logs |
| Casing | Waterproof IP67 aluminum enclosure , Dimensions in mm (LxWxH): 80 x 61 x 39 Weight : 252g (magnetic mounting) |
COMMON SPECIFICATIONS
BeanDevice® 2.4GHz
WIRELESS IOT SENSORS FOR INDUSTRIAL APPLICATIONS
 | Max. wireless Range (L.O.S. and N.L.O.S.) | 500 m in L.O.S, 30-100 meters in N.L.O.S |
 | Power supply options | External wall plug-in power supply (12V) with M8 Connector (Ref: PWR-M8-12V) |
