Wireless IOT DAQ for 4-20mA (current loop) sensors

REQUEST PRICE
	Included Free Software BeanScape® 2.4GHz LITE®
	Student and Education Discount Please Contact us (sales@beanair.com)

Wireless IoT Data Acquisition (DAQ) Instrument 4-20mA (current loop) inputs Built-in datalogger
BeanDevice® 2.4GHz AN-420 The BeanDevice® AN-420 is a wireless IOT data acquisition instrument with 4-20 mA current loop inputs. Special care is taken in the analog signal conditioner design with a measurement repeatability of ±0.01% (Full Scale, @25°C, both Static and Dynamic measurement mode) and a dynamic range of 16-bit. External analog sensor can be directly powered by a high precision and adjustable DC/DC converter integrated inside the device. The excitation voltage is remotely configurable through the BeanScape® (4.5 to 20V). Characterized by a waterproof (IP67/NEMA6) and rugged aluminum enclosure, an ultra-low power (30 µA in sleeping mode), an integrated data logger that can store up to 1 million data logs, as well as a maximum wireless range of 650 meters (Line of Sight), this wireless device is well suited for all types of industrial applications.

A Flexible Wireless DAQ for Industrial Applications

While the vast majority of wireless sensors are not adapted for harsh industrial environment, the BeanDevice® AN-420 integrates an innovative antenna diversity design, boosting the radio link quality in environments subject to random and diverse disturbances. Antenna diversity improves both the quality and reliability of a wireless link by 30%.

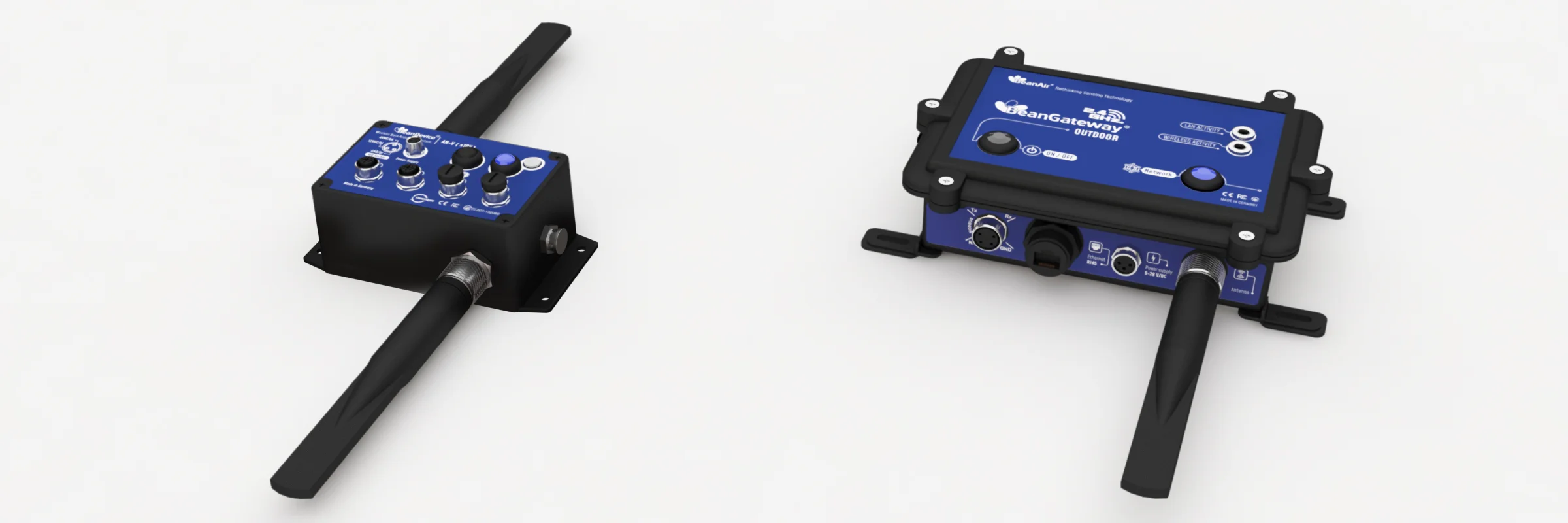

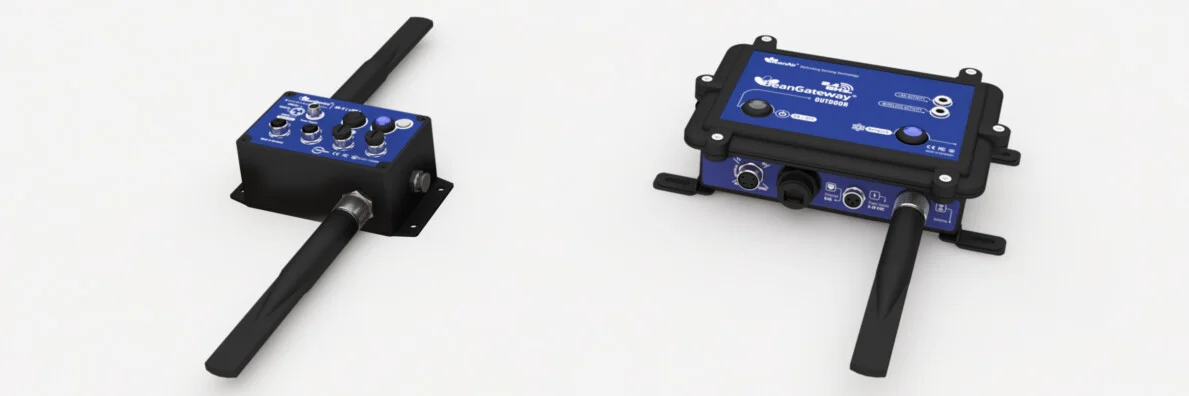

Users looking for a quick and easy integration with a third party software, have choice between ModBus TCP/RTU/ASCII protocol available on our BeanGateway®

The BeanDevice® 2.4GHz AN-420 is suitable for the following applications:

• Remote monitoring

• Built-in test Equipment

• Condition monitoring

• Structural Health Monitoring (SHM)

Technical Documents

Technical Documents Main Features HOW IT WORKS ? StarterKit Examples of Sensors Certifications Ordering

Technical Documents
● Datasheet
● Selection Guide
● Quick Start
● User Manual
● Drawing
● 2.4GHz Wireless DAQ System Accuracy Test Report
● Datasheet StarterKit BeanGateway® Indoor + Beandevice® 2.4GHZ AN-420 ● Datasheet StarterKit BeanGateway®Outdoor + Beandevice® 2.4GHZ AN-420
● Step File

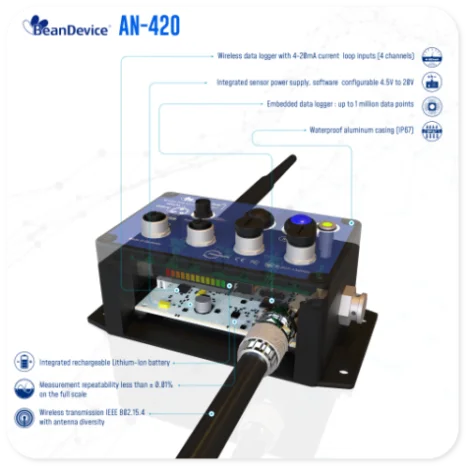

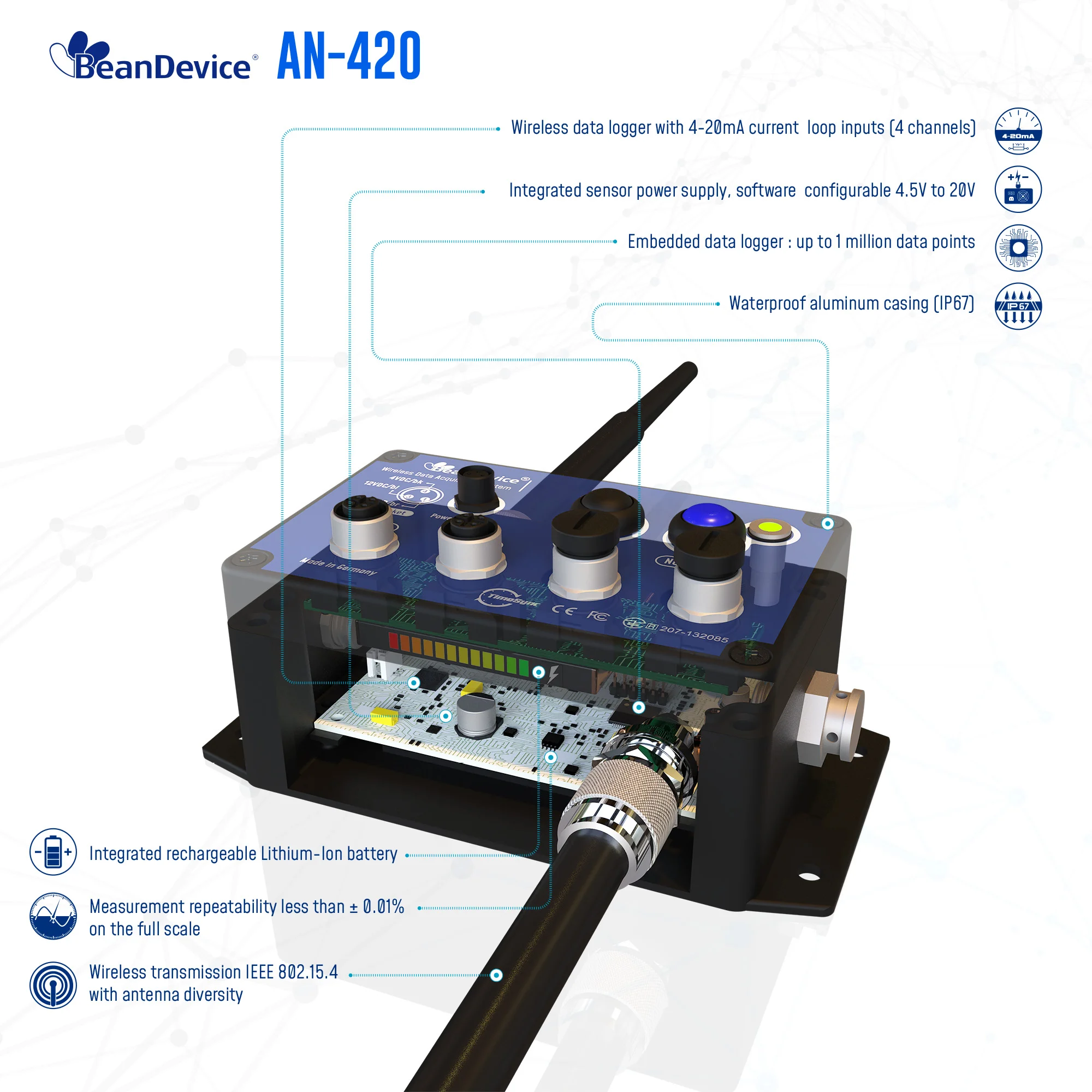

● Integrated sensor power supply, software configurable 4.5V to 20V
● Wireless data logger with 4-20mA current loop inputs (4 channels)

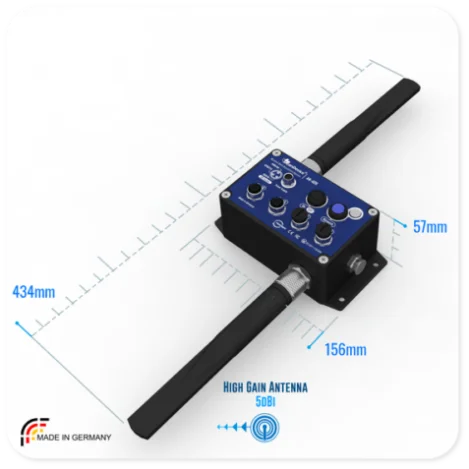

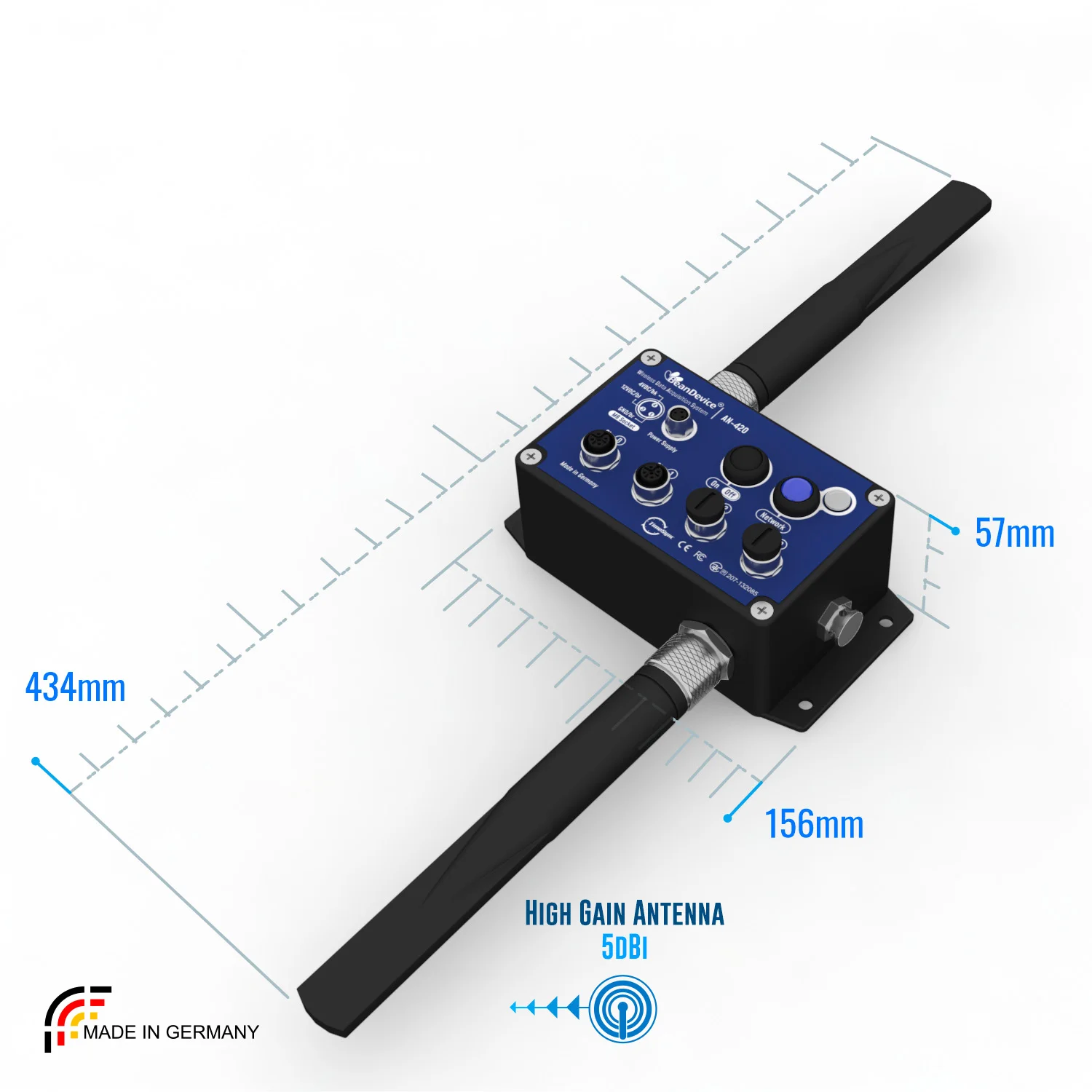

● Aluminum, Waterproof IP67 – Fire Protection : ULV94/Getex ● Weight : 760g, Size (Lxlxh) : 125mm x 82mm x 57mm
● Integrated rechargeable Lithium-Ion battery
● Embedded data logger : up to 1 million data points
● Measurement repeatability less than ± 0.01% on the full scale
● Wireless transmission IEEE 802.15.4 with antenna diversity

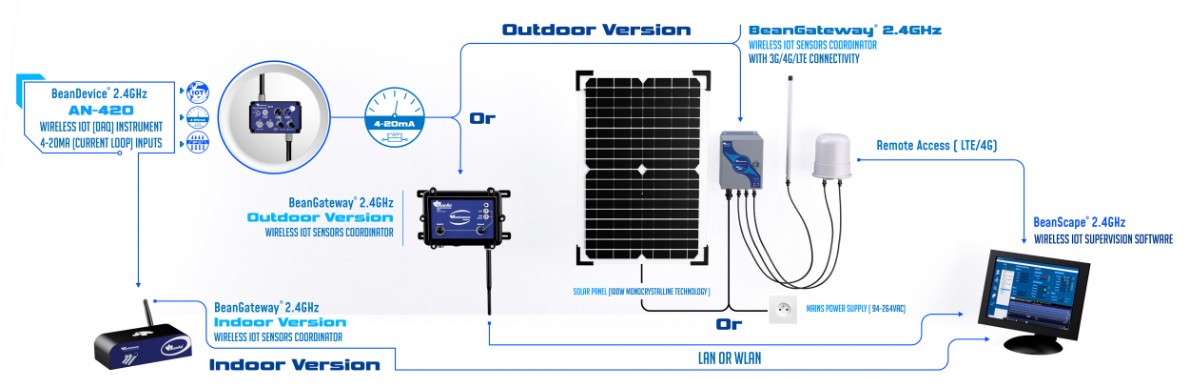

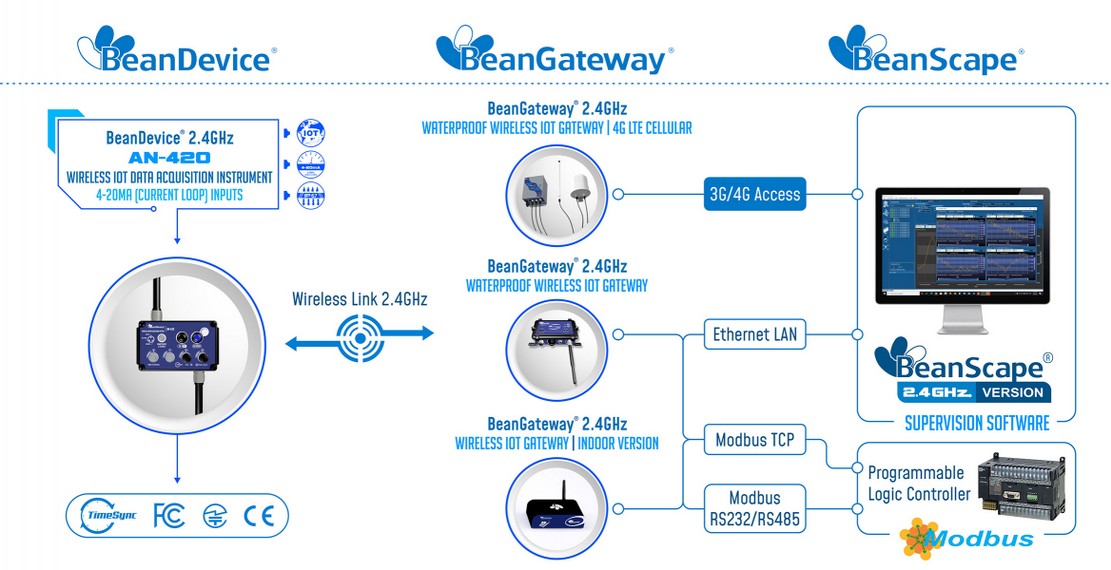

HOW IT WORKS ?

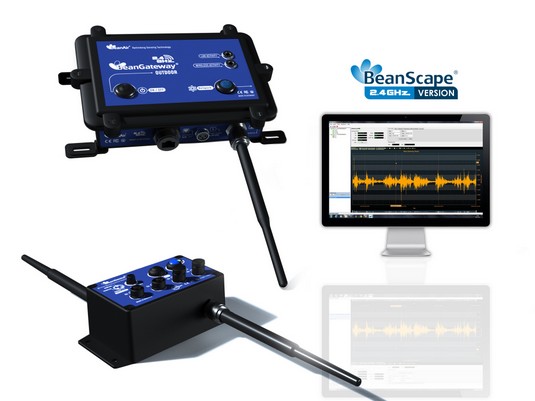

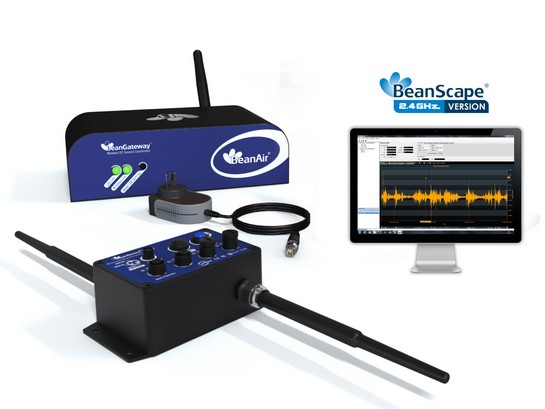

STARTERKIT

Examples of sensors used
	Integration with LVDT Displacement sensor (4-20mA output)
	Wireless DAQ System Integration with Load Transducer
	Wireless DAQ Sytem Integration with Strain Gauges

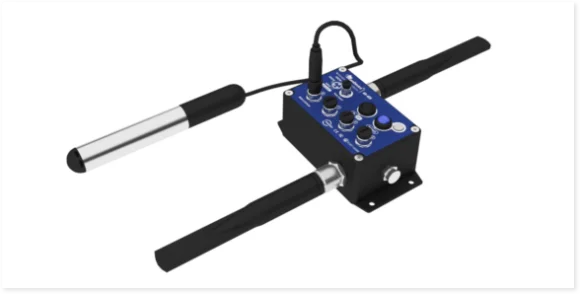

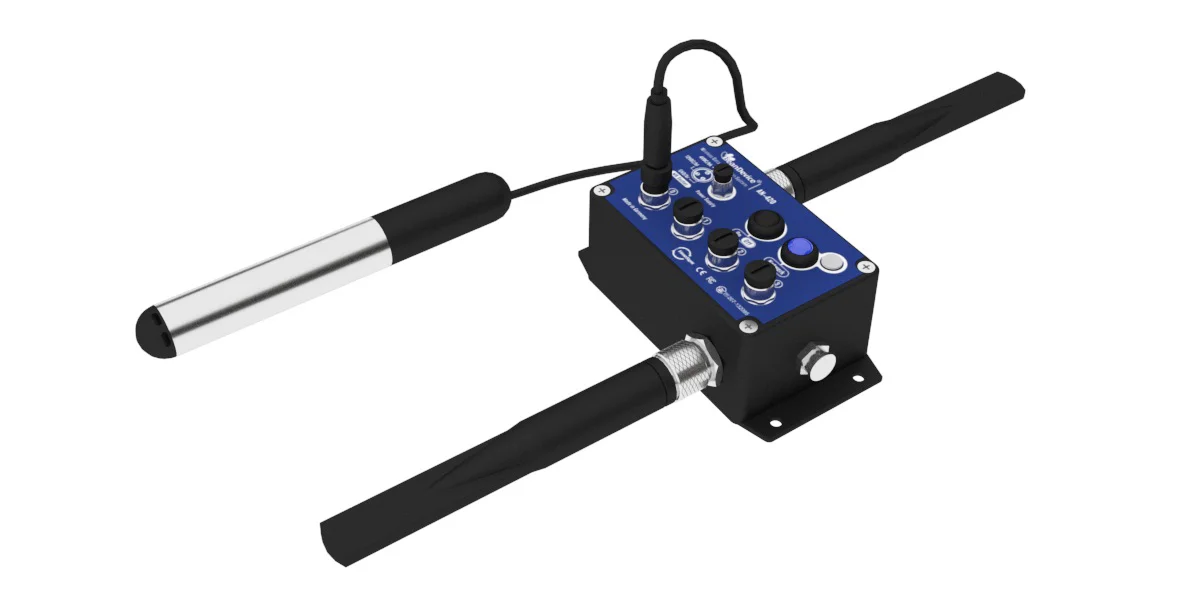

	Wireless DAQ Temperature and Pressure
	Integration of Weather station
	Integration with potentiometer Displacement sensor' (Voltage output)
