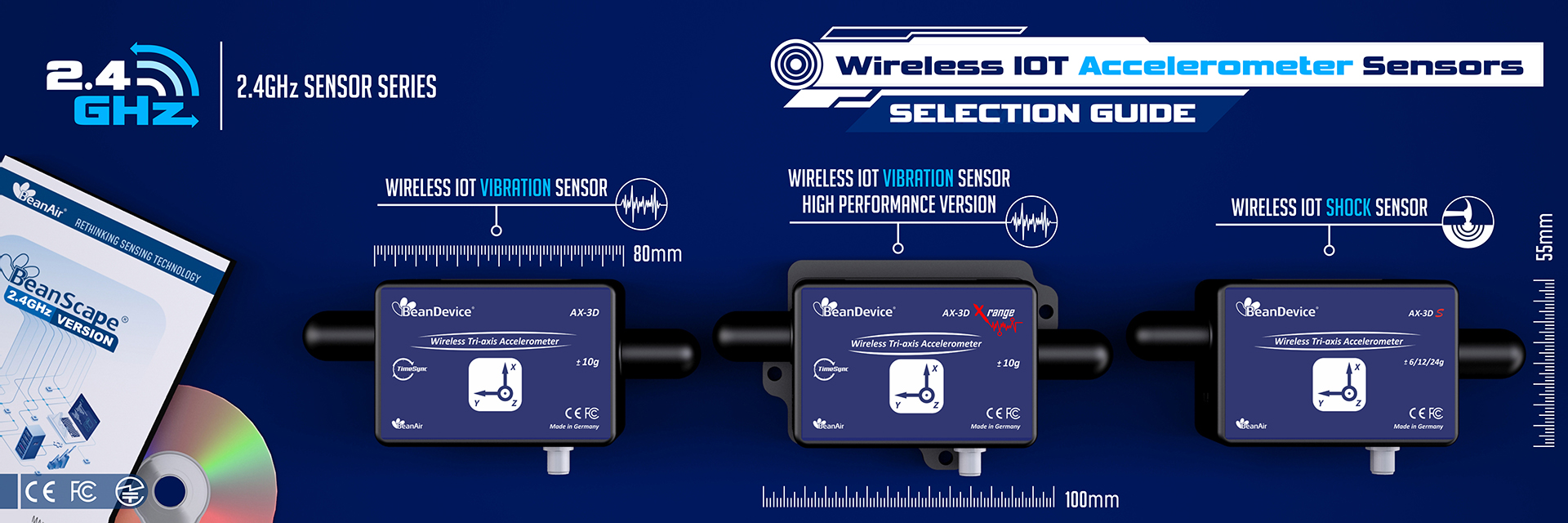

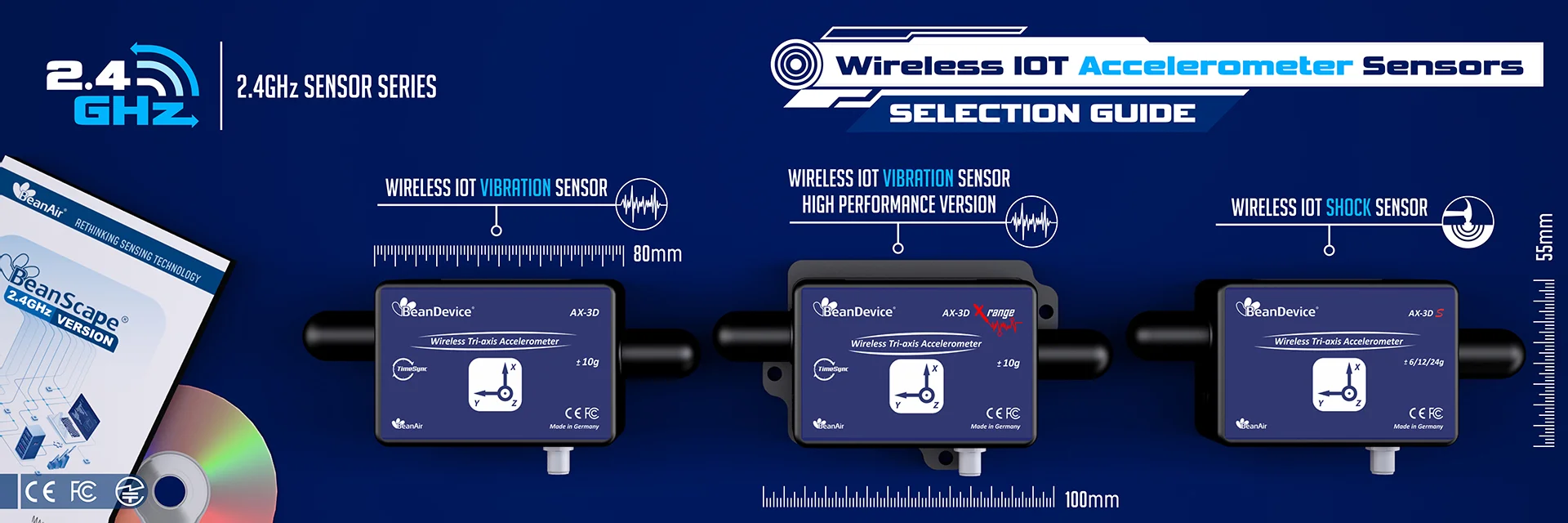

SELECTION GUIDE
BeanDevice® 2.4GHz | Wireless IOT Accelerometer Sensors

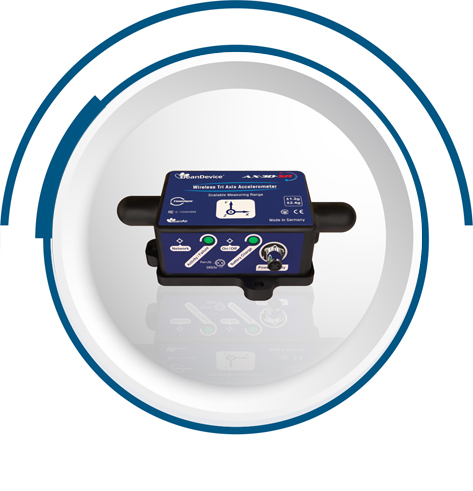

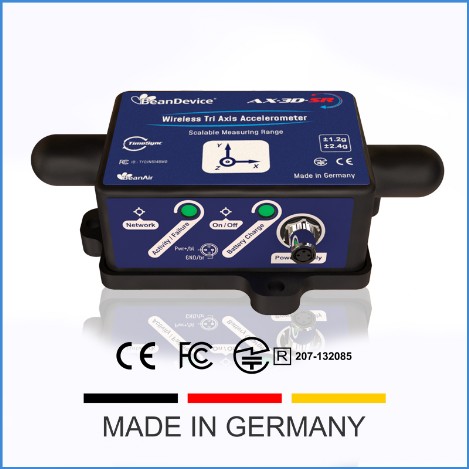

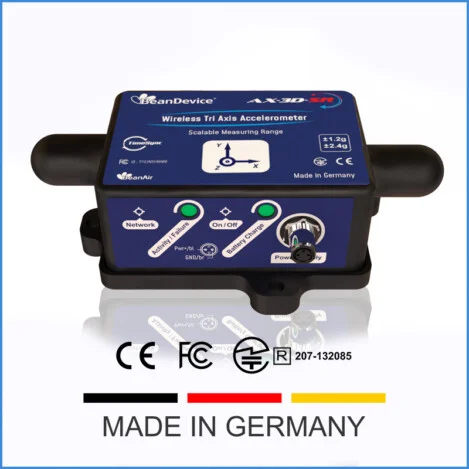

BeanDevice® 2.4GHz | AX-3D-SR
Wireless Ultra-Low Noise Vibration Sensor
 | Reference & Measurement Range | BND-2.4GHZ-AX-3D-SR-MR-PS-MO | |||
 | Sensor Resolution | 0.17mg | |||
 | Sensor Technology | High performance wireless tri-axial vibration sensor based on MEMS Technology | |||
 | Scalable Measuring Range | user-seletctable range ±1.2g or ±2.4g, with automatic range adjustment depending on the application | |||
 | Noise density | 20 µg/√Hz for ±1.2G measurement range 32 µg/√Hz for ±2.4G measurement range | |||
| Sensor precision (full scale, @ 25°C, Static Measurement Mode every 2s) | ±0.7mg for ±1.2G measurement range ±1.3mg for ±2.4G measurement range | |||
 | Sensor frequency Response (-3 dB) | DC to 40 Hz for ±1.2g measurement range DC to 70 Hz for ±1.2g measurement range | |||
 | Data Logger Size | Embedded data logger : up to 8 millions data points (with events dating) | |||
 | Internal Battery | Integrated Lithium-Polymer rechargeable battery with industrial battery charger (8-28VDC) | |||
 | Mounting option | Screw Mounting | Magnetic Mounting | ||
 | Casing | Waterproof IP67 aluminum enclosure Dimensions in mm (LxWxH):100 x 71 x 38 Weight : 225g (screw mounting), 252g (magnetic mounting) | |||

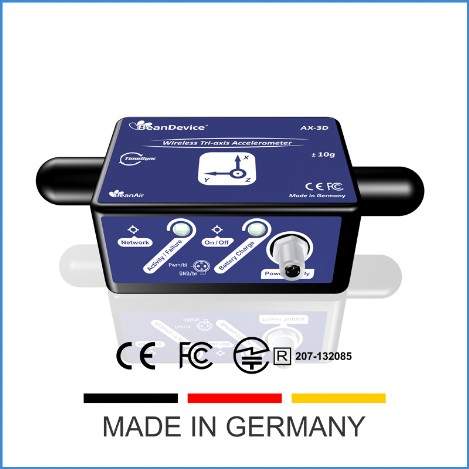

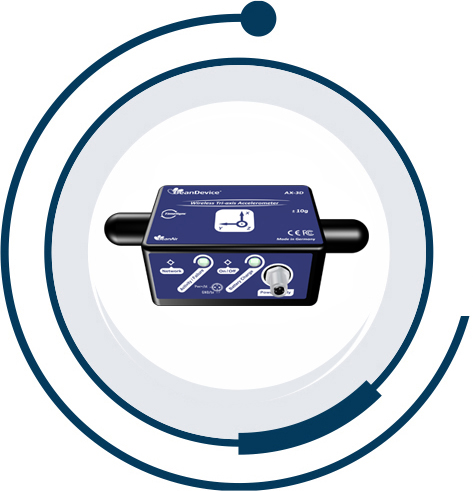

BeanDevice® 2.4GHz | AX-3D
Wireless IOT Vibration Sensor | Acceleration
 | Reference & Measurement Range | BND-2.4GHZ-AX-3D-2G-RB | BND-2.4GHZ-AX-3D-10G-RB |
 | Measurement Range | ±2g | ±10g |
 | Sensor Technology | Tri-axial MEMS accelerometer |
 | Applications | Vibration Monitoring |
 | Spectral Noise Density @ BW 10Hz | 35μg/√Hz | 60μg/√Hz |
 | Maximum sampling rate per axis (SPS—sample per second) | 1000 SPS |
 | Data Logger Size | 1 million logs |
 | Internal Battery | Rechargeable Lithium-Polymer battery 2Ah |
 | Mounting option | Magnetic Mounting |
 | Casing | Waterproof IP67 aluminum enclosure Dimensions in mm (LxWxH): 80x55x36 Weight : 155g |

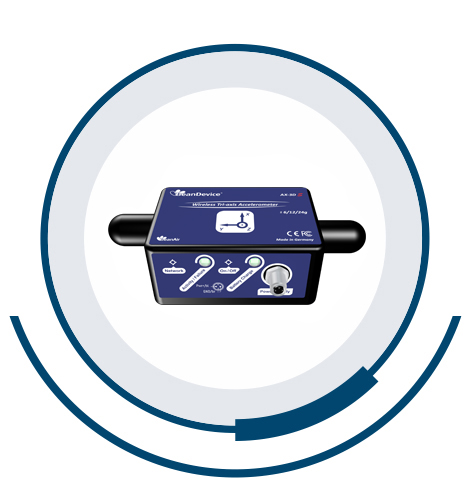

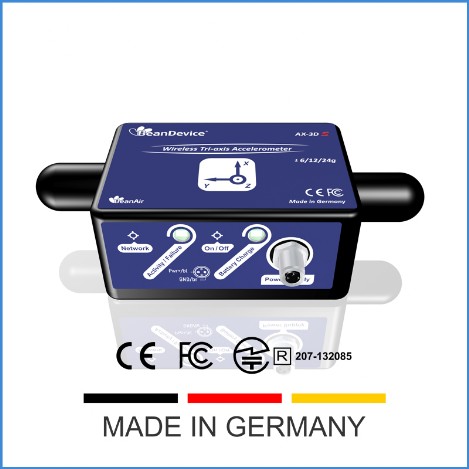

BeanDevice® 2.4GHz | AX-3DS
Wireless IOT Accelerometer Sensor
Shock and Impact Monitoring
| Reference | BND-2.4GHZ-AX-3DS-8G-RB | BND-2.4GHZ-AX-3DS-24G-RB | BND-2.4GHZ-AX-3DS-8G-RB-SCM | BND-2.4GHZ-AX-3DS-24G-SCM | BND-2.4GHZ-AX-3DS-8G-RB-MM | BND-2.4GHZ-AX-3DS-24G-RB-MM |
 | M.Range | ±2/4/8g | ±6/12/24g | ±2/4/8g | ±6/12/24g | ±2/4/8g | ±6/12/24g |
| Sensor Technology | Tri-axial MEMS accelerometer |
| Applications | Shock, Impact and vibration monitoring |
 | Spectral Noise Density @ BW 10Hz | 118 μg/√Hz | 250 μg/√Hz | 118 μg/√Hz | 250 μg/√Hz | 118 μg/√Hz | 250 μg/√Hz |
| Maximum sampling rate per axis (SPS—sample per second) | 1000 SPS |
| Data Logger Size | 1 million logs |
| Internal Battery | Rechargeable Lithium-Polymer battery 2Ah |
 | Casing | Waterproof IP67 aluminum enclosure Dimensions in mm (LxWxH): 80x55x36 Weight : 155g | Waterproof IP67 aluminum enclosure Dimensions in mm (LxWxH): 100 x 71 x 38 , Weight : 225g (screw mounting), 252g (magnetic mounting) |
 | Mounting option | Adhesive Mounting | Screw Mounting | Magnetic Mounting |

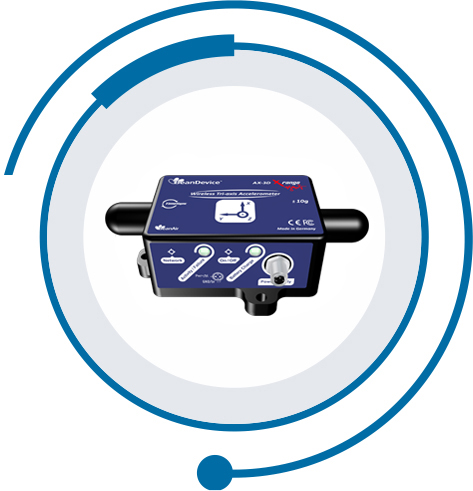

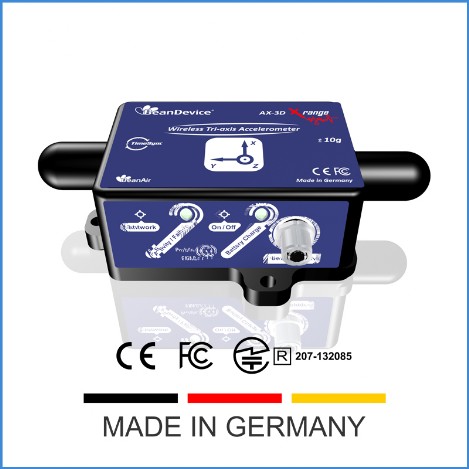

BeanDevice® 2.4GHz | AX-3D XRange
Wireless IOT vibration sensor
High performance version
| Reference & Measurement Range | BND-2.4GHz-AX3D-2G-XR-RB-SCM | BND-2.4GHz-AX3D-10G-XR-RB-SCM | BND-2.4GHz-AX3D-2G-XR-RB-MM | BND-2.4GHz-AX3D-10G-XR-RB-MM |
 | Measurement Range | ±2g | ±10g | ±2g | ±10g |
| Sensor Technology | Tri-axial MEMS accelerometer |
| Applications | Vibration Monitoring |
 | Spectral Noise Density @ BW 10Hz | 35μg/√Hz | 60μg/√Hz | 35μg/√Hz | 60μg/√Hz |
| Maximum sampling rate per axis (SPS—sample per second) | 1000 SPS |
| Data Logger Size | 8 million logs |
| Internal Battery | Rechargeable Lithium-Polymer battery 2Ah |
| Mounting option | Screw Mounting | Magnetic Mounting |
| Casing | Waterproof IP67 aluminum enclosure Dimensions in mm (LxWxH):100 x 71 x 38 Weight : 225g (screw mounting), 252g (magnetic mounting) |
COMMON SPECIFICATIONS
BeanDevice® 2.4GHz
WIRELESS IOT SENSORS FOR INDUSTRIAL APPLICATIONS
 | Max. wireless Range (L.O.S. and N.L.O.S.) | 500 m in L.O.S, 30-100 meters in N.L.O.S |
 | Power supply options | External wall plug-in power supply (12V) with M8 Connector (Ref: PWR-M8-12V) |
