SELECTION GUIDE
BeanDevice® WIFI | Wilow® Wireless IOT Inclinometer Sensors

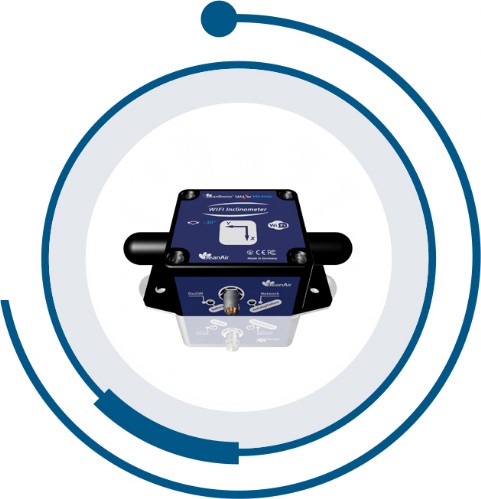

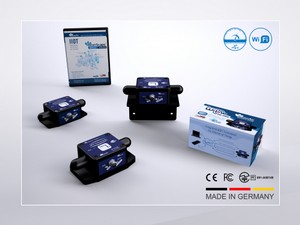

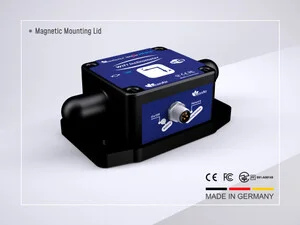

BeanDevice® WIFI | Wilow® HI-INC
Wireless IOT Inclinometer Sensor
Reference & Measurement Range | BND-WILOW-HI-INC-15B | BND-WILOW-HI-INC-30B |
Measurement Range | ±15° | ±30° |
Sensor Technology | Bi-axial MEMS inclinometer |
Sensor Resolution | 0.001° |
Sensor Repeatbility | ±0.003° | ±0.004° |
Spectral Noise Density DC to 100 Hz | 0.0004 °/√Hz |
Maximum sampling rate per axis (SPS—sample per second) | 2000 SPS |

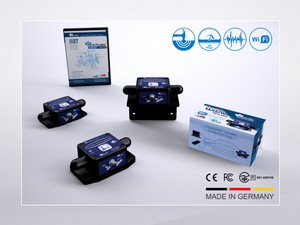

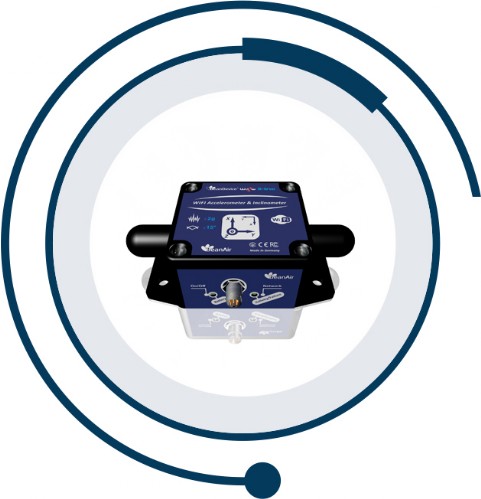

BeanDevice® WIFI | Wilow® X-INC
Wireless IOT Combo Sensors | Accelerometer and Inclinometer sensors
Reference & Measurement Range | BND-WILOW-WIFI- X-INC-2G-15B | BND-WILOW-WIFI- X-INC-2G-30B | BND-WILOW-WIFI- X-INC-10G-15B | BND-WILOW-WIFI- X-INC-10G-30B |
Inclinometer | Measurement Range | 15B | 30B | 15B | 30B |
Accelerometer | Measurement Range | 2G | 2G | 10G | 10G |
Sensor Technology | Triaxial MEMS accelerometer Biaxial MEMS inclinometer |
Applications | Accelerometer and Inclinometer sensors |
Accelerometer | Spectral Noise Density @ BW 10Hz | ±2g Version : 45μg/√Hz | ±10g version: 100μg/√Hz |
Inclinometer | Spectral Noise Density DC to 100 Hz | 0.0004 °/√Hz |
COMMON SPECIFICATIONS
BeanDevice® WIFI | Wilow®
OPEN-STANDARD, WIFI SENSORS FOR INDUSTRIAL INTERNET OF THINGS
Maximum wireless Range (L.O.S.) | 200 m, can be extended by adding WIFI Repeater/Bridge |
Internal Battery/ External Power Supply | • Internal Rechargeable Lithium-Ion 780 mAh • External Power supply: • USB power supply (5VDC) • Option for auxiliary power supply : 6-24VDC compatible with solar energy harvesting (add the extension –EHR) |

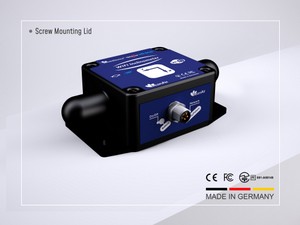

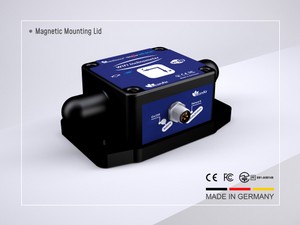

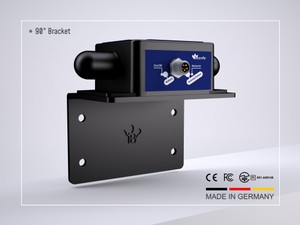

Mounting techniques | Screw mounting by default, options: 90 degree bracket (add the extension –BR) or magnetic mounting (add the extension -M) |
Casing | Waterproof IP67/NEMA 6 aluminum enclosure |
