Wireless IoT Data Acquisition Instrument
Voltage inputs (±5V or ±10V) | built-in datalogger
BeanDevice® 2.4GHz AN-V | |||

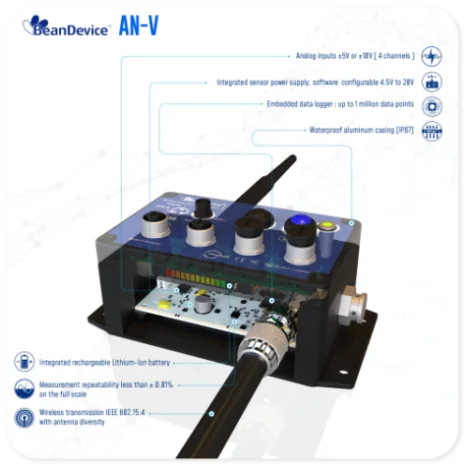

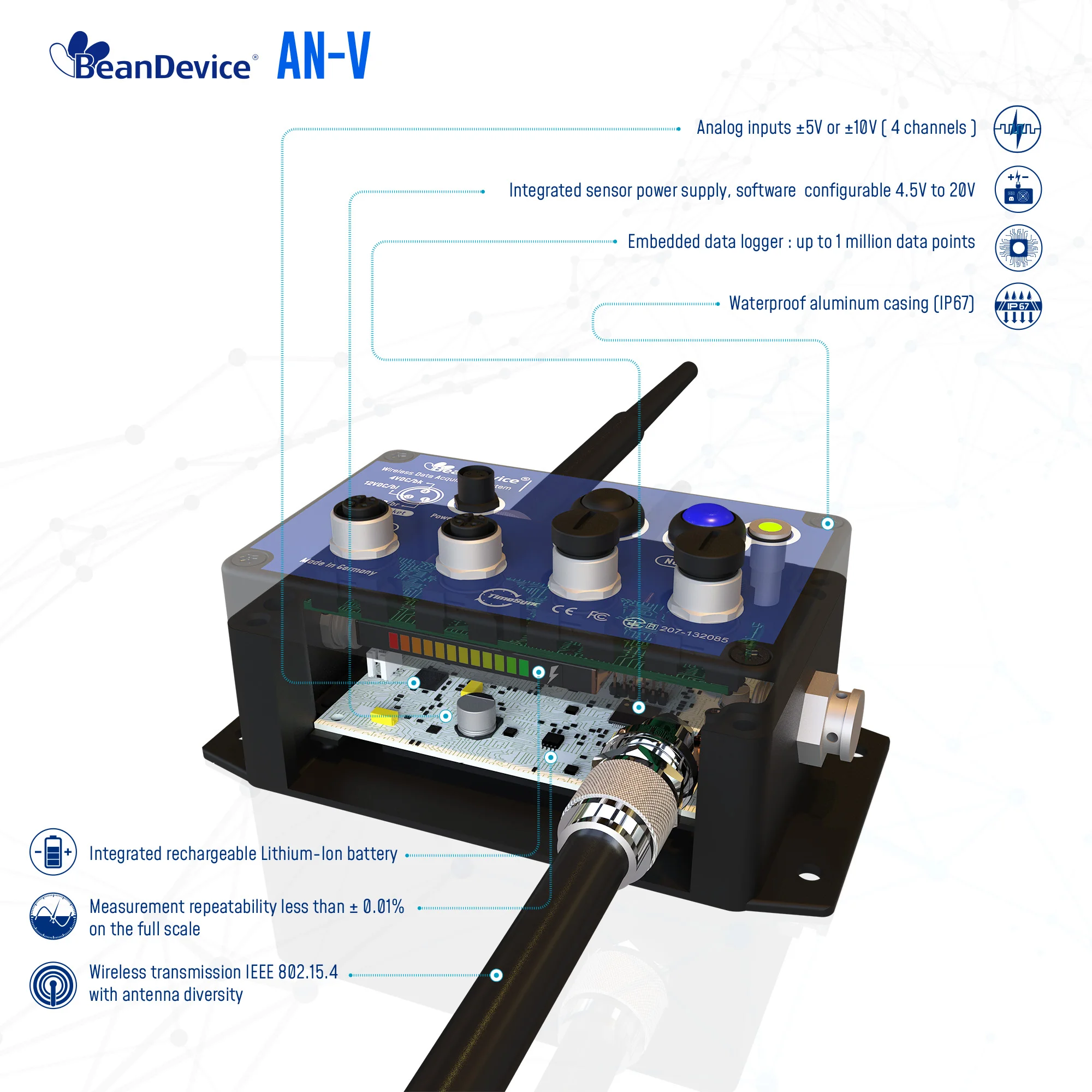

Engineered for high-accuracy industrial IoT applications, the BeanDevice® AN-V is a robust wireless data acquisition system with analog voltage inputs (±5V or ±10V) that delivers unmatched signal integrity with a ±0.01% measurement repeatability (Full Scale, @25°C) and 16-bit dynamic range. Designed for seamless integration with analog sensors, it features a high-precision, remotely configurable DC/DC converter (4.5–20V) to power external sensors directly—eliminating the need for additional wiring or power supplies. Experience precision, durability, and smart connectivity—redefined for industrial IoT. | |||
 | • Included Free Software | ||
 | • Wireless DAQ Inputs: • 4-channel ±5V or ±10V | |
 | • Wireless Protocol: • 2.4GHz radio Technology | |
 | • Integrated data logger: • Up to 1 million data points | |
 | • Enclosure: • Waterproof ( IP67 / NEMA 6 ) | |
Technical Specifications
High-Precision Wireless Analog Data Acquisition • 4-channel ±5V or ±10V input for seamless integration with industrial sensors. • ±0.01% measurement repeatability (16-bit resolution) for ultra-accurate data capture—ideal for critical applications. | ||
 | Long-Range, License-Free 2.4GHz Wireless Connectivity • IEEE 802.15.4E radio technology for reliable, interference-free communication. • 650m line-of-sight range (30–100m in obstructed environments)—perfect for remote monitoring in large facilities. | |
 | Plug-and-Play IoT Integration • Seamless compatibility with BeanScape® for remote configuration, monitoring, and data export. • Modbus TCP/IP connectivity through our wireless Gateway (BeanGateway® Modbus) | |
 | High-Speed Data tranmission & Datalogging • 400 samples/second for real-time monitoring of fast-changing processes. • 1 million data-point capacity with timestamped events—ensuring no data loss even in offline conditions. | |
Smart Power Management & Sensor Excitation • Programmable 4.5–20VDC power supply for external sensors—eliminates extra wiring. • Ultra-low power consumption (<30 µA in sleep mode) with automatic sensor power cutoff for extended battery life. | ||
 | Industrial-Grade Durability & Battery Flexibility • IP67/NEMA 6-rated aluminum enclosure—waterproof, dustproof, and rugged for harsh environments. • Integrated Li-Po rechargeable battery with industrial charger (8–28VDC) for uninterrupted operation. | |
Applications

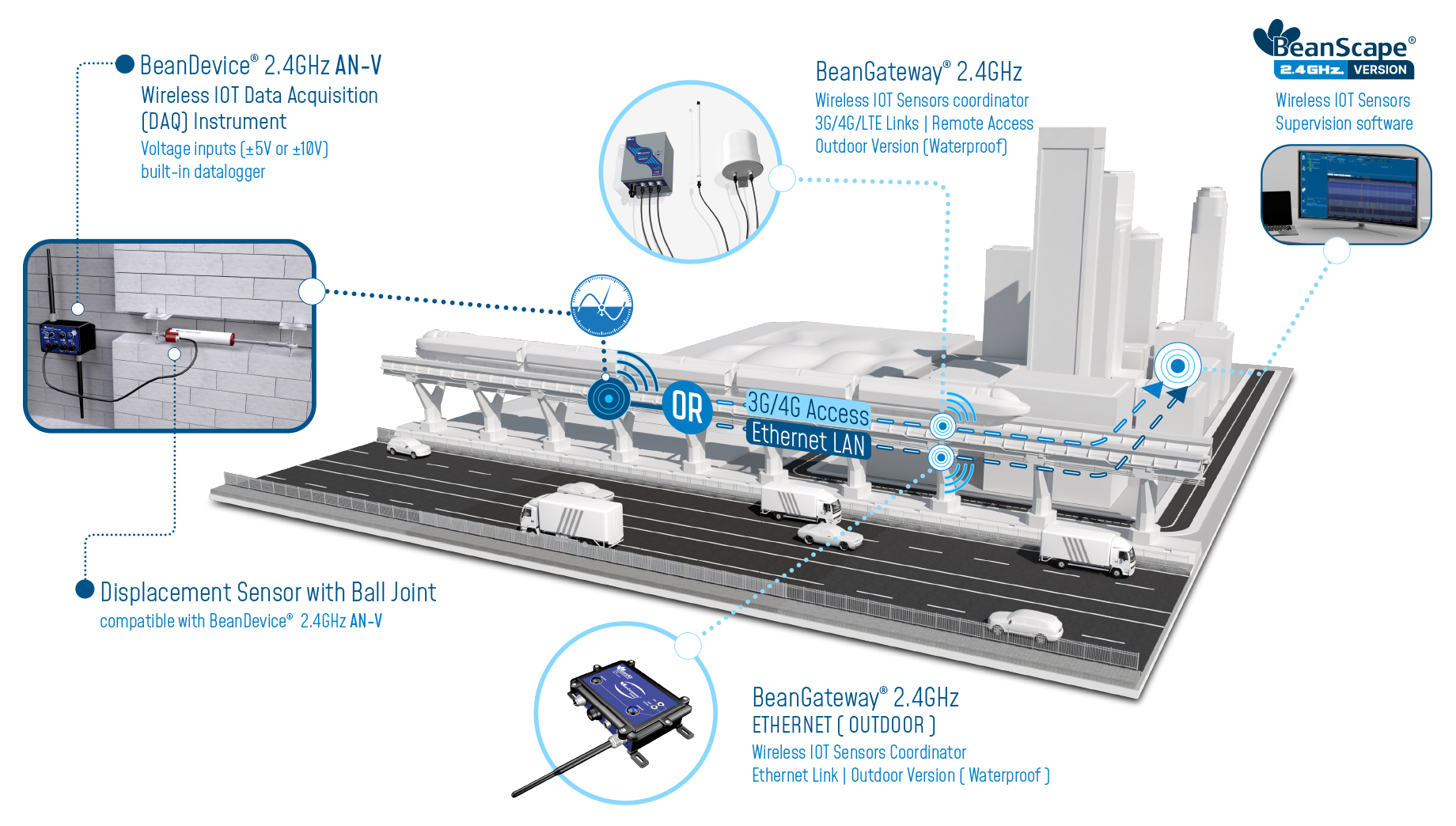

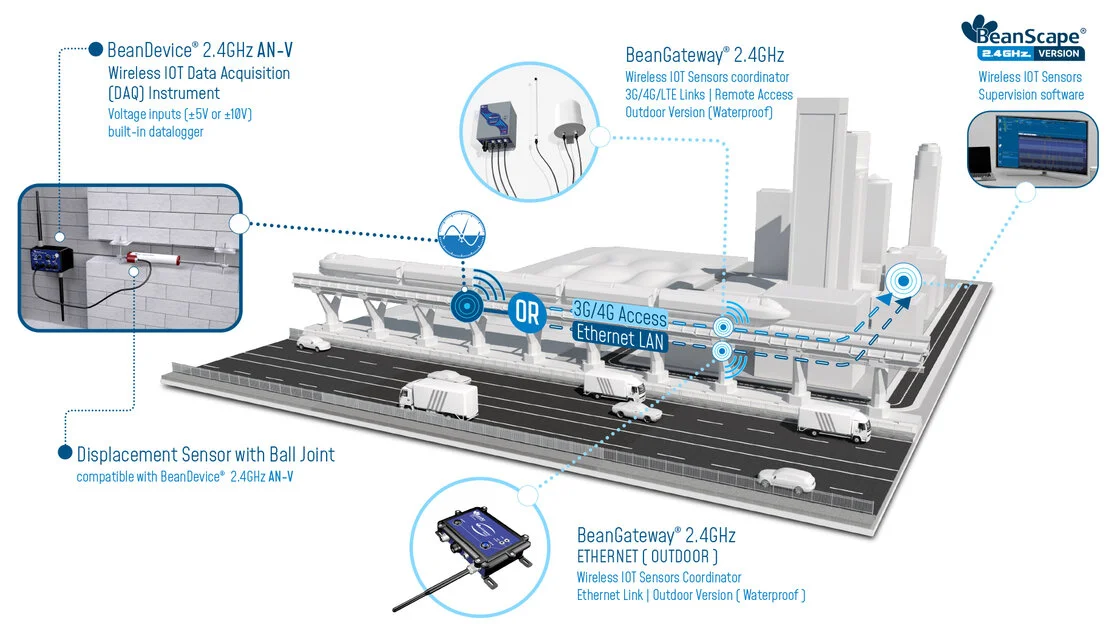

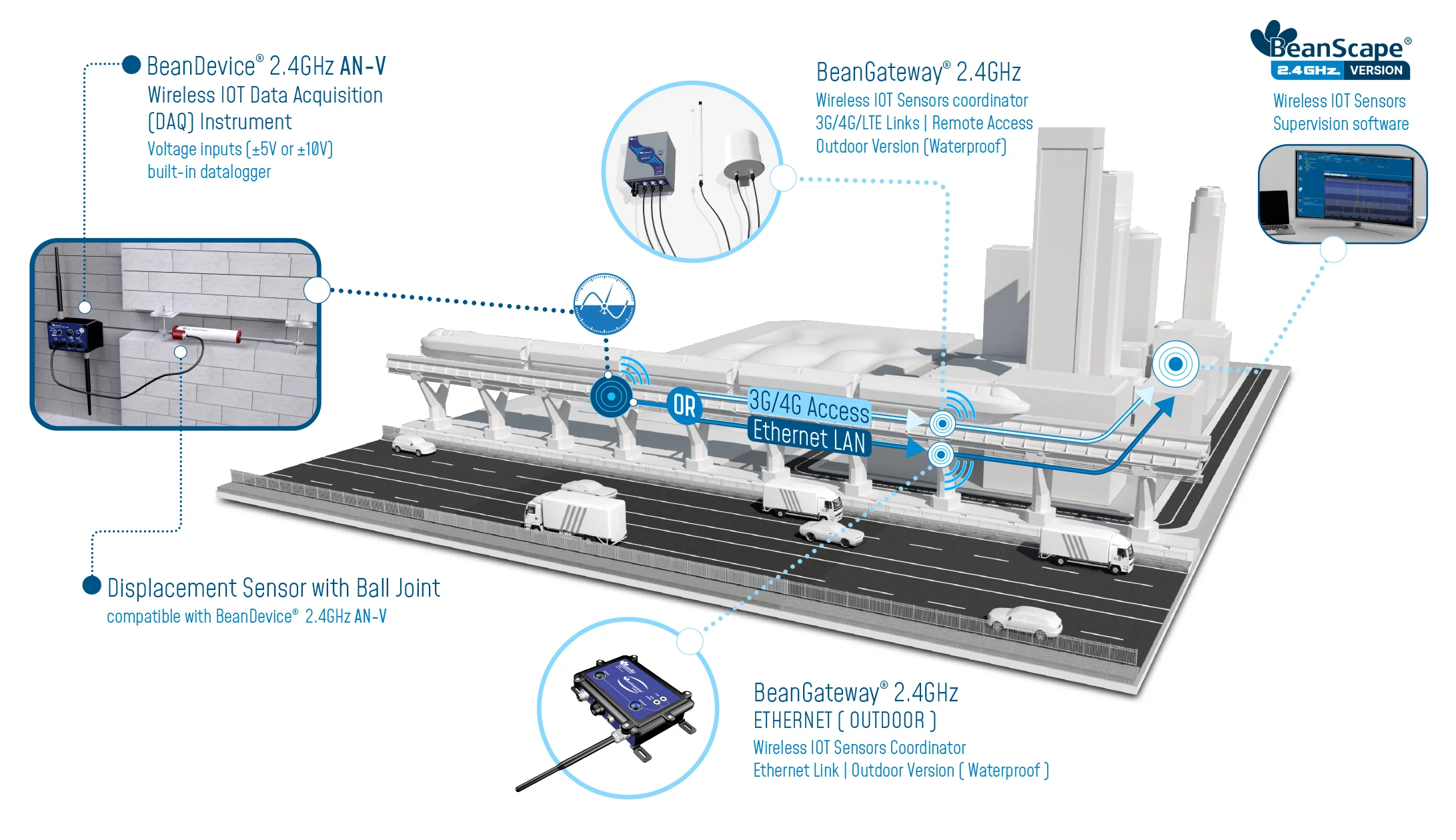

Displacement Sensor with Ball Joint on Bridge | |||
 |
Video
Featured Video
Product Video

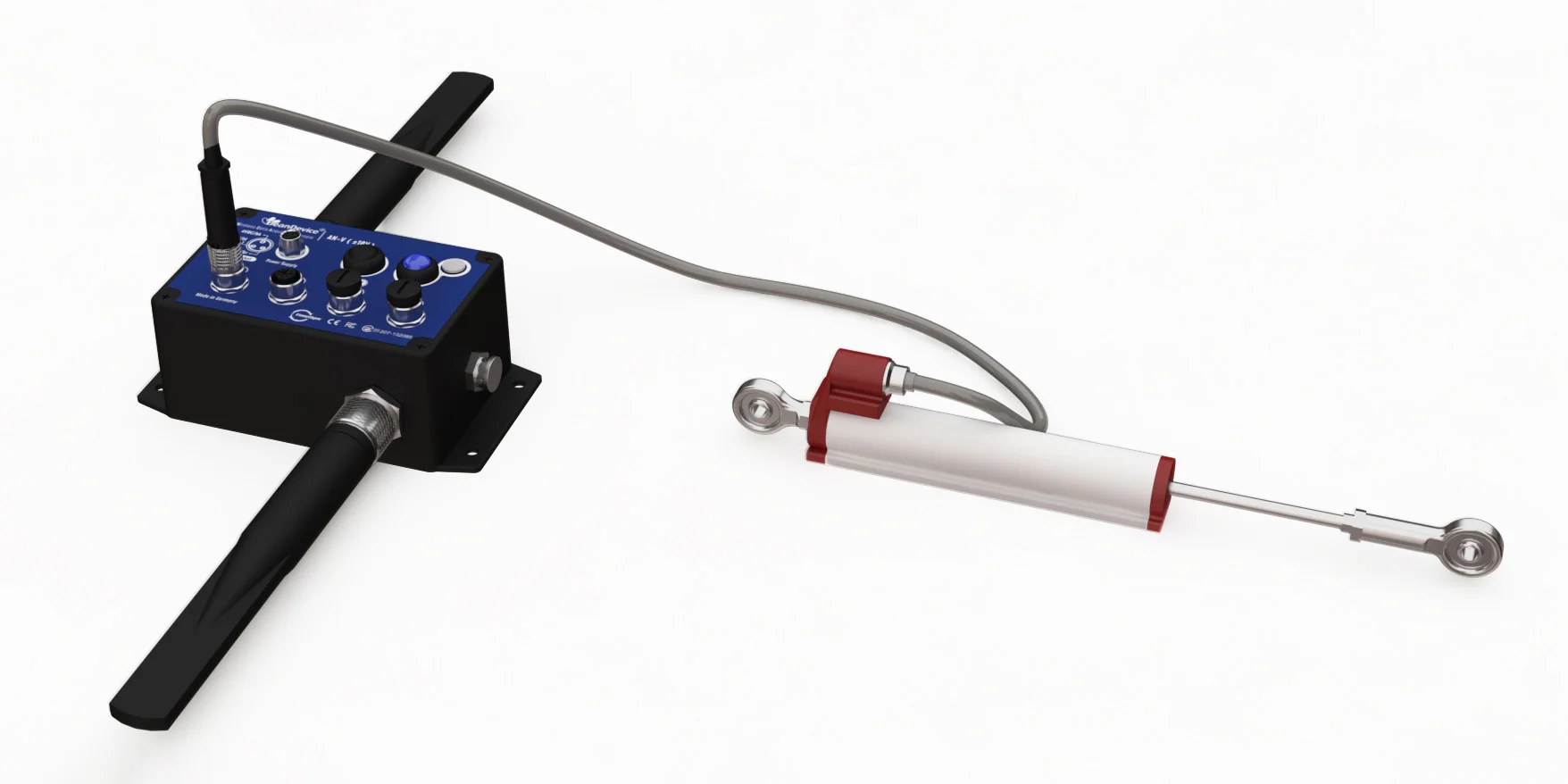

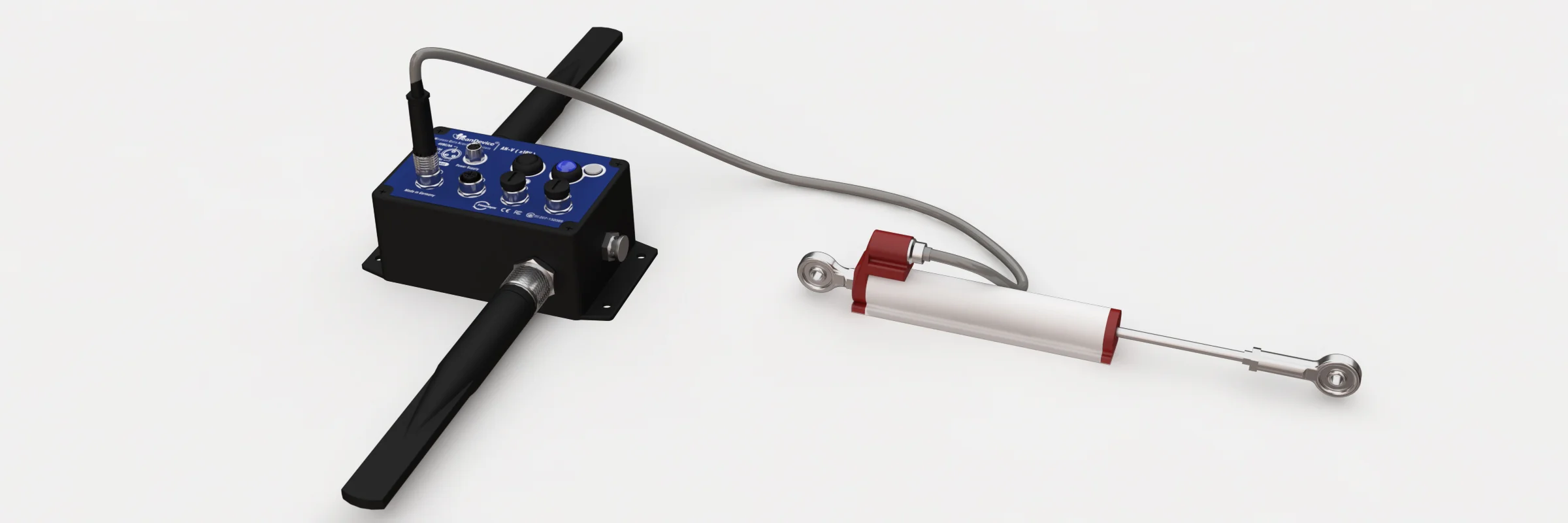

Simplified Sensor Integration
Streamline your entire measurement chain with the BeanDevice® AN-V's integrated and intelligent power source. This device eliminates the need for external power supplies and complex wiring, simplifying your setup and reducing installation time.At the heart of this feature is a high-precision, adjustable DC/DC converter that powers your external analog sensors directly. Through our intuitive BeanScape® software, you have complete remote control to configure the sensor excitation voltage, with a wide adjustable range from 4.5 to 20V.This capability offers significant advantages:• Reduced Cabling:By powering the sensor directly from the measurement device, you eliminate the need for separate power cables, reducing clutter, potential points of failure, and installation costs.• Optimal Sensor Performance:Providing the precise, stable excitation voltage recommended by the sensor manufacturer is crucial for accurate and reliable measurements. The ability to fine-tune this voltage remotely ensures your sensors are always operating at their peak performance.• Centralized Control:Manage and adjust sensor power settings from the safety and convenience of your control room through the BeanScape® software. This removes the need for manual, on-site adjustments, which is especially beneficial for sensors located in hard-to-reach areas.
Simplified Sensor Integration

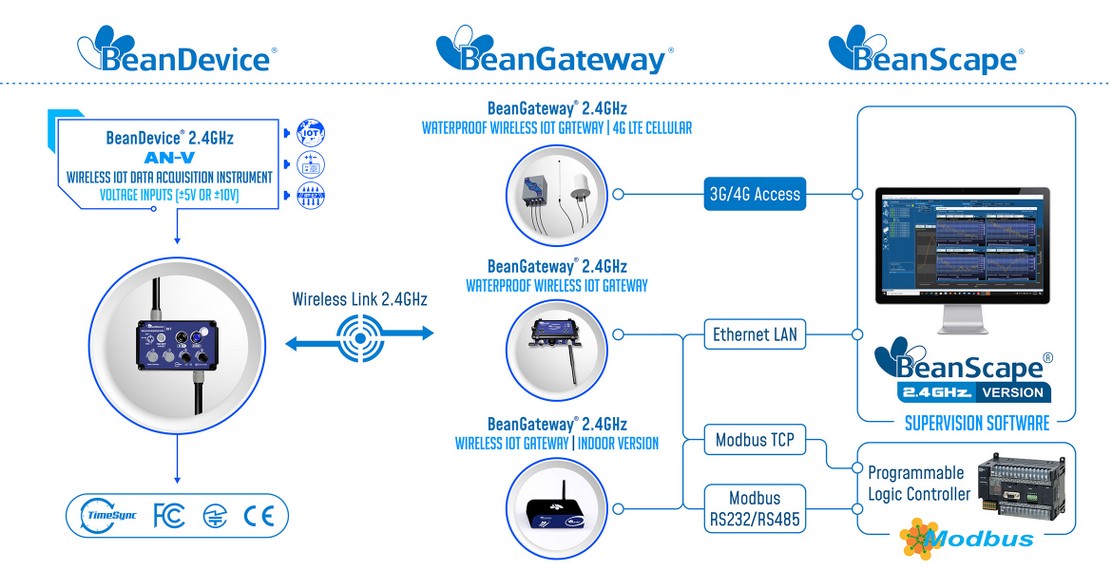

Instantly connect your BeanDevice® AN-V to your modern industrial network using the BeanGateway®. The gateway seamlessly translates wireless sensor data into Modbus TCP/IP, the standard protocol for Ethernet-based industrial communication.This ensures true "plug-and-play" compatibility, allowing you to easily feed high-precision sensor data directly into your SCADA systems, PLCs, and any other IP-based monitoring platform. By leveraging your existing Ethernet infrastructure, the BeanDevice® AN-V with Modbus TCP/IP support simplifies installation and streamlines your entire data acquisition process.
Accessories
INCLUDED ACCESSORIES | |
 | M12 Plastic Cap 4 x M12 Cap |
| M8 Plastic Cap 1 x M8 Cap |
 | Waterproof 2.4GHz Antenna · High gain antenna 5.5 dBi · V.S.W.R : 1.5 :1 · Connector : N-Type (Waterproof) |
OPTIONAL ACCESSORIES AND SERVICES | |
 | External Power Supply Wall plug-in, Switchmode power Supply 12V @ 1,25A with sealed M8 Plug (IP67/Nema 6) Ref: M8-PWR-12V |
M8 Extension Cable for External Power Supply Molded cable with M8-3pins male plug Material: PVC with shield protection IP Rating : IP67 | Nema 6 Cable length: 2 meters , Ref: CBL-M8-2M Cable length : 5 meters, Ref: CBL-M8-5M Cable length: 10 meters, Ref: CBL-M8-10M | |
M12 Plastic ABS plug for sensors M12-4 Pins Male plug for sensor interface Coding : A , Locking type: Fix screw, Material: Plastic ABS IP Rating: IP67 in locked condition Ref: M12-PL-SENSOR | |
M12 Aluminum plug for sensors M12-4 Pins Male plug for sensor interface Coding : A , Locking type: Fix screw, Material: Aluminum IP Rating: IP67 in locked condition Ref: M12-AL-SENSOR | |
| High Gain Antenna option High Gain Omnidirectional antenna Frequency range 2400-2500MHz VSWR < 1.4, Impedance 50 Ohm, Polarization Vertical Vertical plane 24° (7dBi Gain version), 16°(9dBi Gain version), 6°(12dBi Gain version), Horizontal plane 360° Connector N female, Wind load (170km/h) 7.3N Included: N-Type cable (Male/Male), length: 1 meter Ref: HG-OMNI-OUT-7DBI Ref: HG-OMNI-OUT-9DBI Ref: HG-OMNI-OUT-12DBI |
Antenna Cable N-Type cable (Male/Male), Cable type: RF-5/H155 Cable length: 1 meter, Ref: CBL-ANT-1M Cable length: 2 meters, Ref: CBL-ANT-2M Cable length: 3 meters, Ref: CBL-ANT-3M Cable length: 5 meters, Ref: CBL-ANT-5M Cable length: 10 meters, Ref: CBL-ANT-10M | |
 | Calibration Certificate Calibration certificate linked to German Accreditation Body (DAkkS) REF: CERT-CAL-PROCESS |

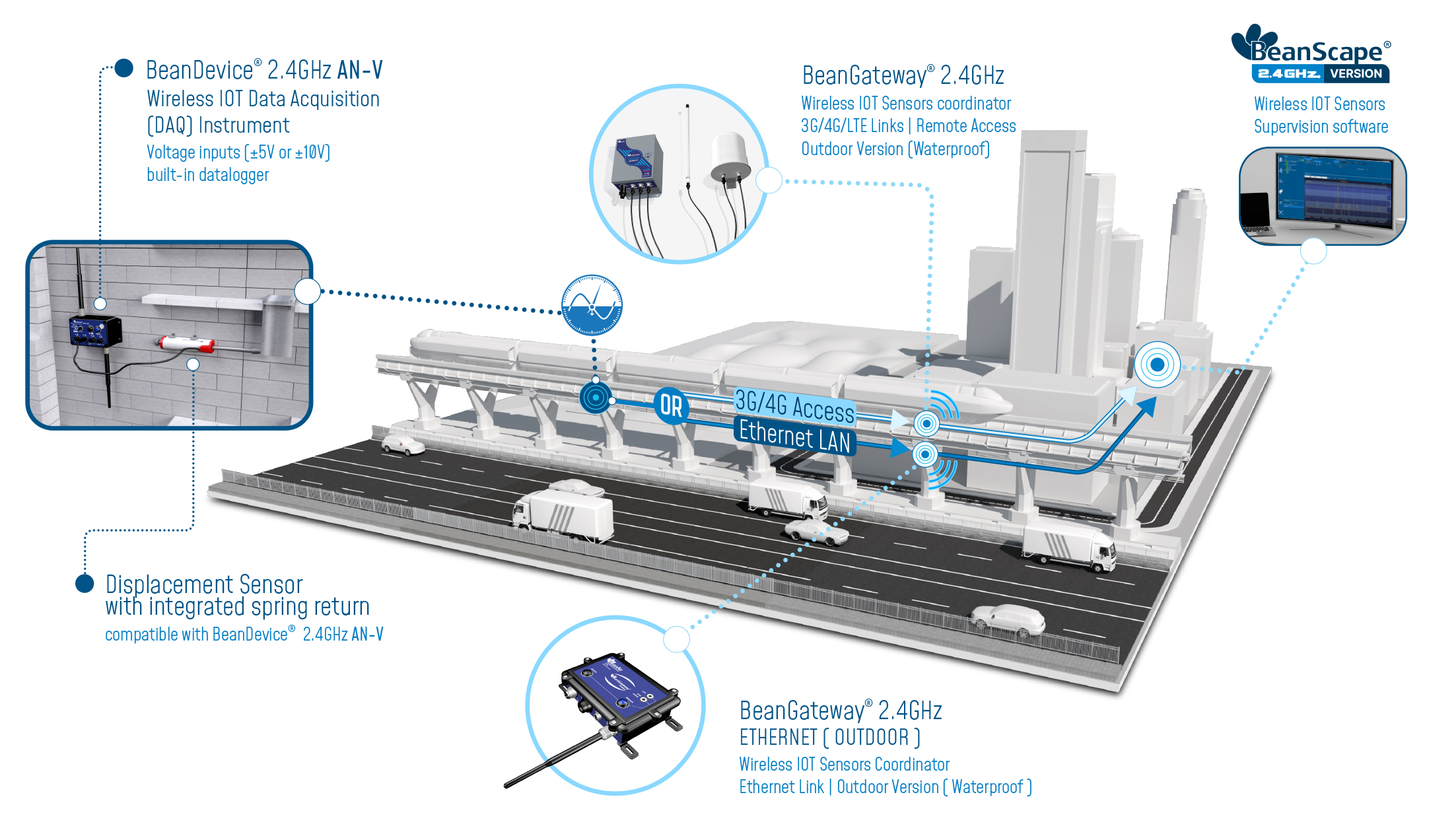

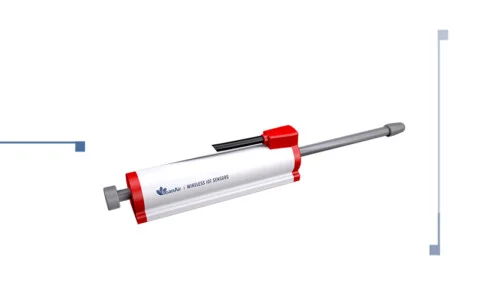

Displacement Sensor with integrated spring return
• Measurement range 10 - 100 mm
• Long mechanical life
• Excellent repeatability <0.01 mm

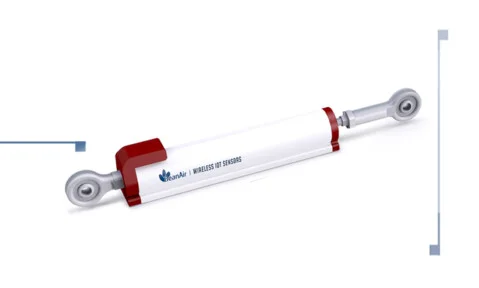

Displacement Sensor with Ball Joint
• Measurement range 10 - 400 mm
• Long mechanical life
• Excellent repeatability <0.01 mm
Reliable 4G IoT Gateway for Instant Remote Access
