Power supply options for IOT sensor and devices

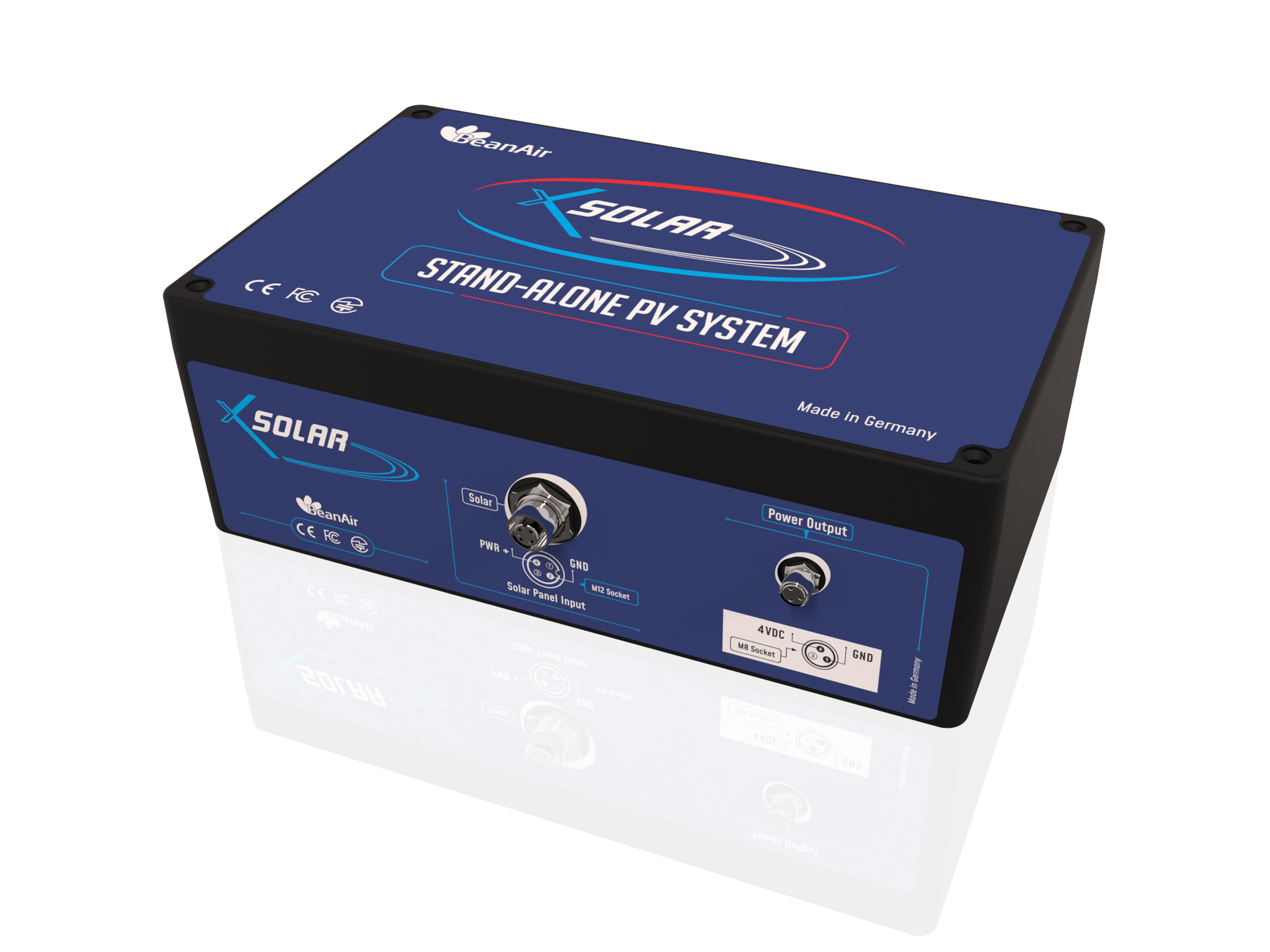

X-SOLAR

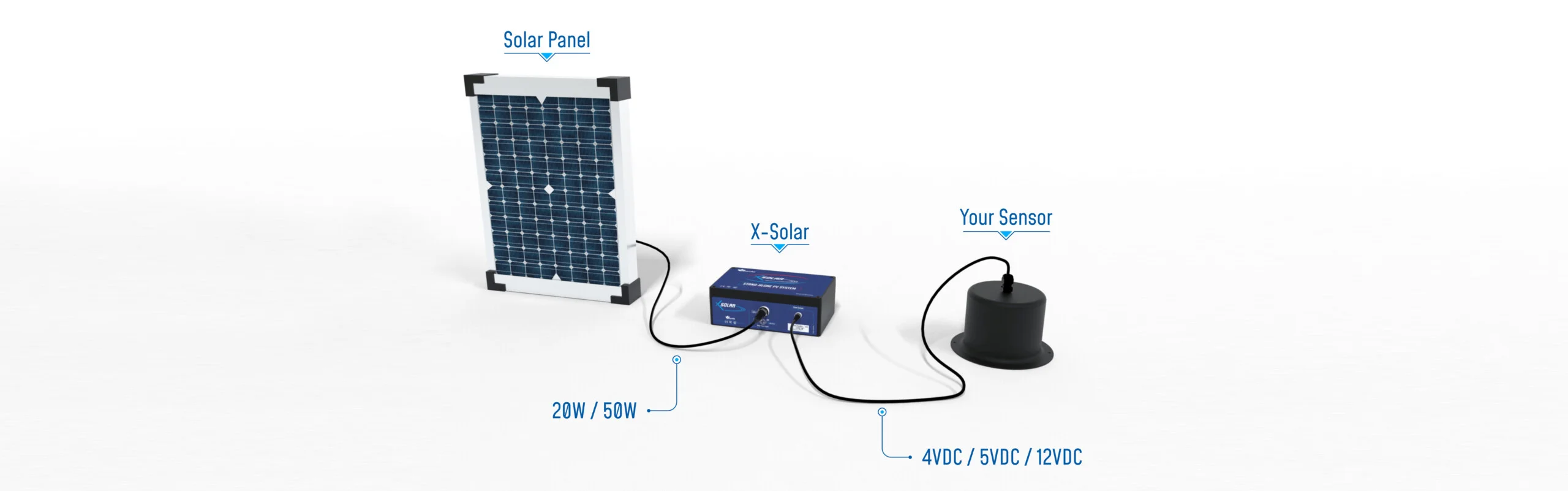

Standalone PV System for IOT sensor and devices

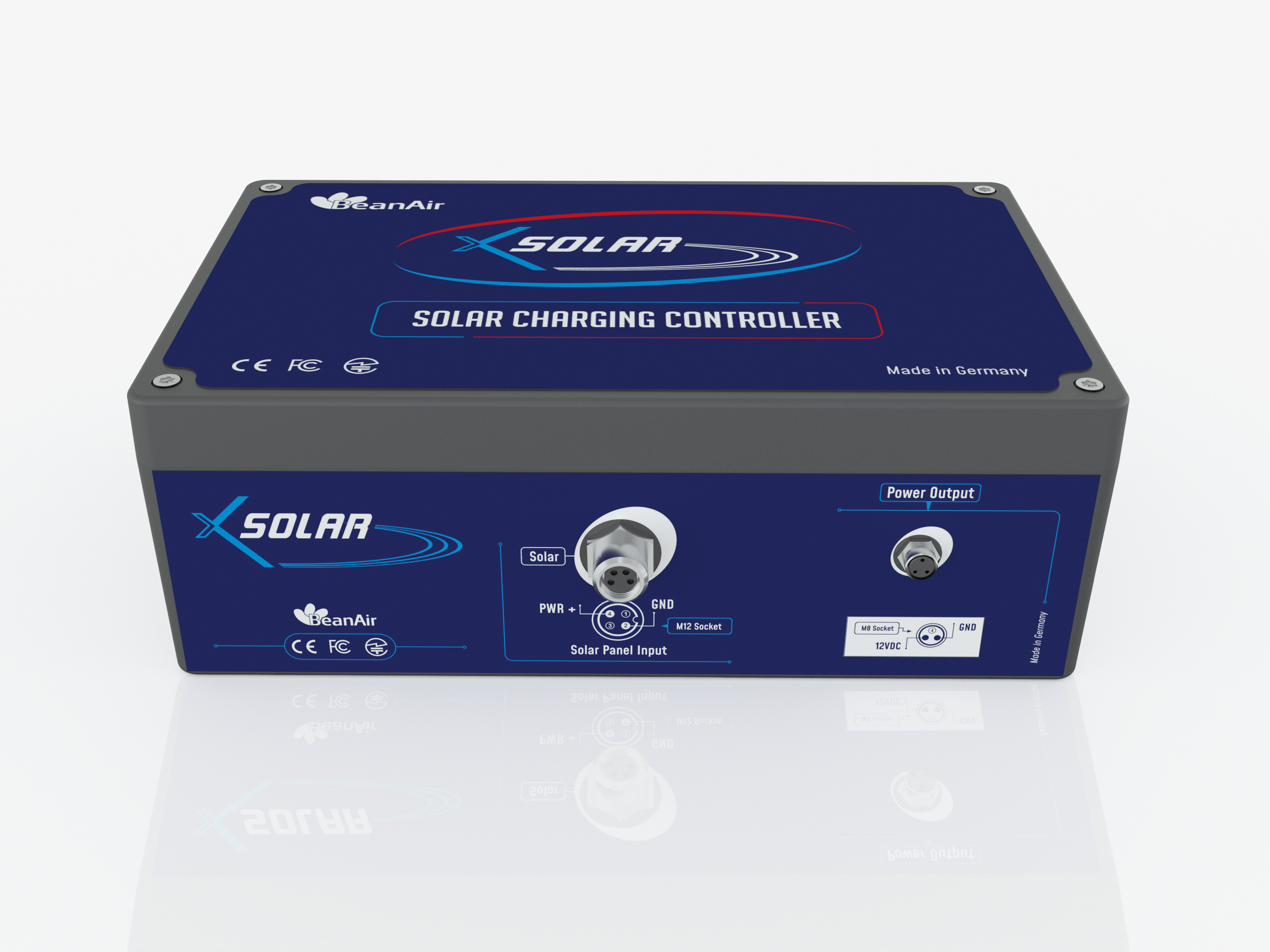

The X-solar is a standalone PV system for your IOT Sensor and Device.
It contains a 7AH Lead-acid battery, a solar battery controller and an optional solar panel.
It can provide a continuous power supply (4VDC/5VDC/12VDC) to your sensor.
The power output and the connector type can be customized for your application.
It's particularly adapted for Harsh Industrial Environment where mains power can not be used .
Technical Documents
Certifications & Approvals
Technical Specifications
Product reference |
X-SOL-7AH-SLP-1CH-VOUT-CL |
SLP- Solar Panel Power - 20W (adapted to countries with very High level of solar Irradiance: Africa/South Asia/South America) - 50W (adapted to countries with High level of solar Irradiance: South of Europe/South USA) - No solar Panel |
VOUT - Voltage Output 4VDC : 1 channel with 4VDC output 12VDC: 1 channel with 12VDC output 5VDC: 1 channels with 5VDC output |
CL– Cable length between X-solar box and solar panel 5M : 5meters |
Solar panel specifications | |
Maximum Power (Pmax) | High effciency Monocrystalline solar cell technology |
Max Energy efficiency | 20,4% |
Maximum Power (Pmax) | 20W or 50W |
| Voltage at Pmax | 17.8VDC |
| Current at Pmax | 1.12A(20W), 2.8A(50W) |
| Operating Temperature | -40°C to +85°C |

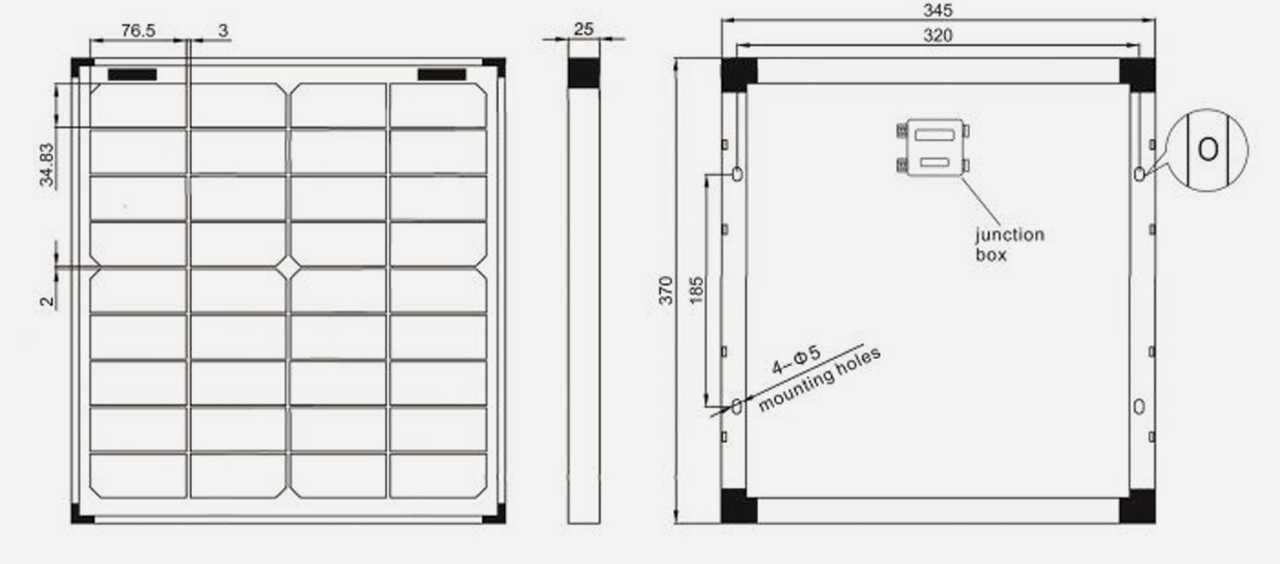

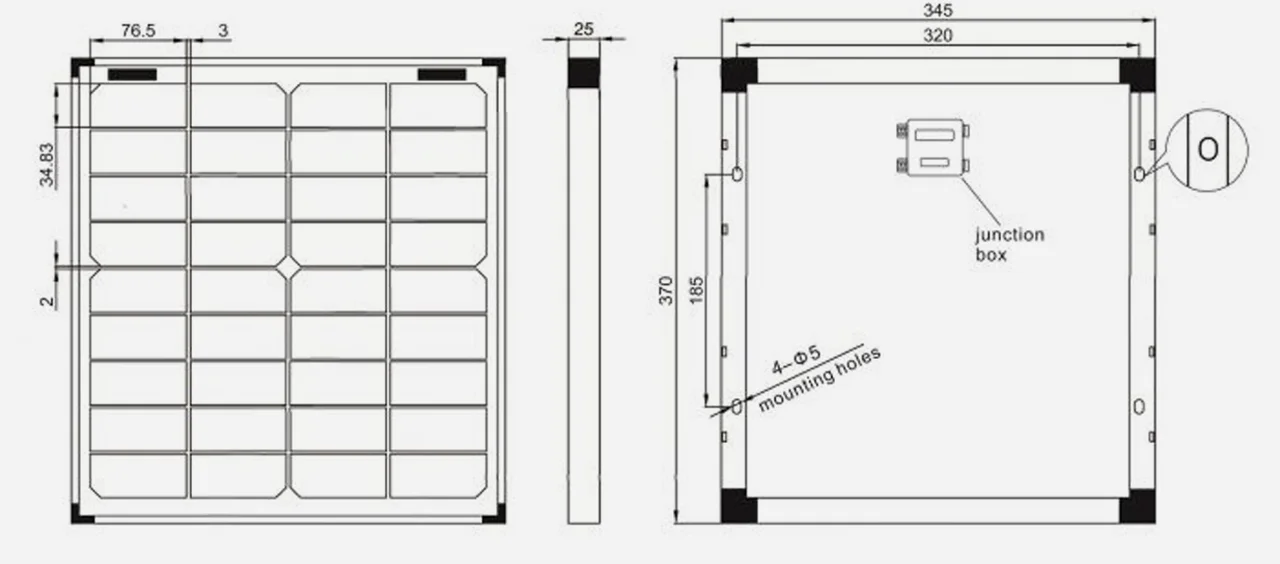

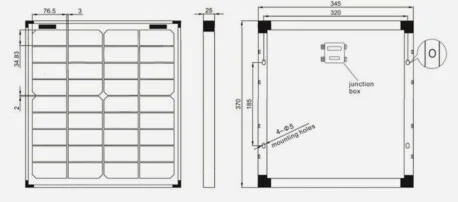

Dimensions and Weight (20W version) | 345mm x 370mm x 25mm, 2 kg weight |

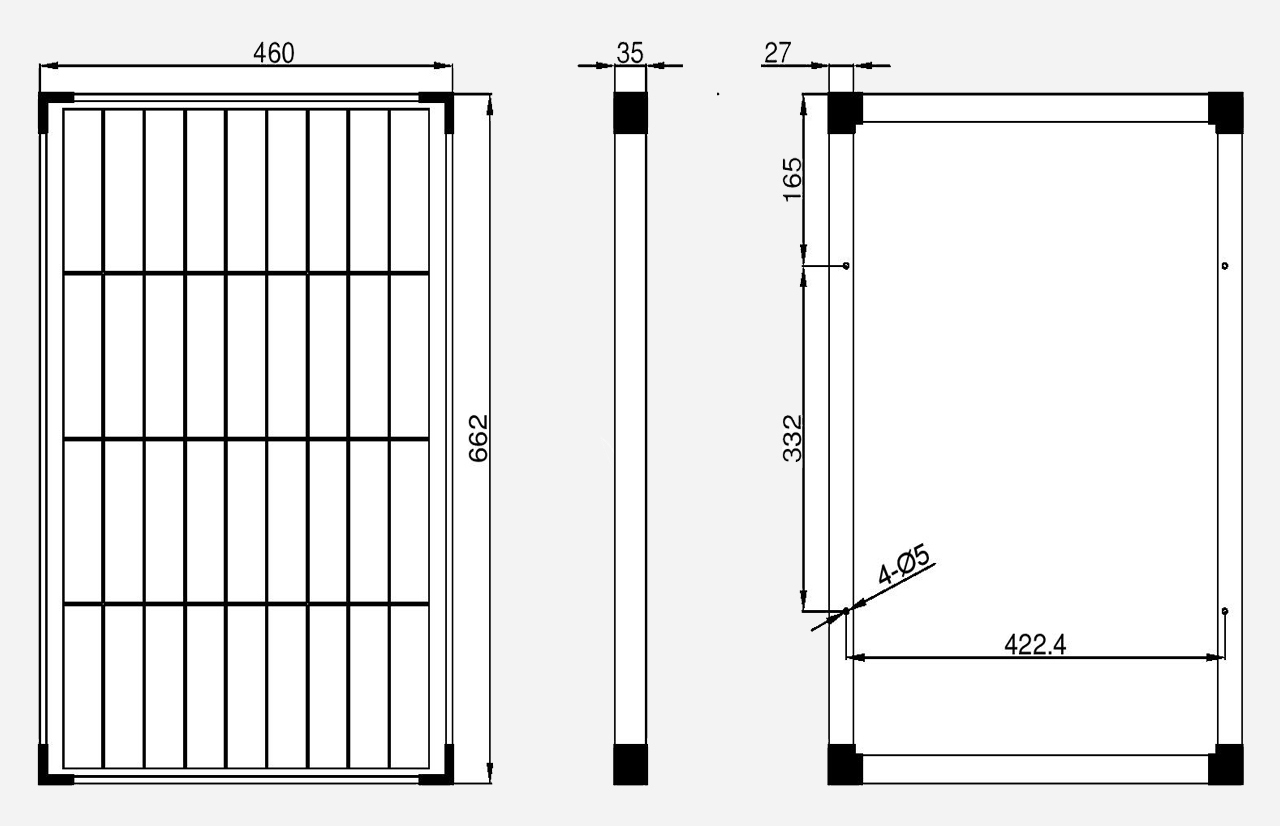

Dimensions and Weight (50W version) | 662 x 460 x 35mm, 4 kg weight |
| Connector Type | M12-4pins Male , A-Coding |
| IP Rating | Waterproof IP67|NEMA 6 |
| Cable length | 5 meters |
Mounting method | Screw mounting |
Charging controller box specifications | |
Charging controller type | Solar charging controller with Overvoltage/Undervoltage protection |
Input voltage solar cell panel | 14-30VDC |
Number of output voltage | 1 |
Connector Types | 1 x M8-3Pins Female A-Coding for sensors power 1 x M12-4Pins Female A-Coding for Solar panel |
| Max Input current | 10A |
| Power consumption | < 10mA , Led switch on |
| Battery Technology | Valve regulated lead acid battery |
| Battery Capacity | 7Ah |
Output Voltage | 4VDC 12VDC 5VDC |
Led displays | Battery Full and Charging |
Dimensions | 260 mm x160 mm x 90 mm |
IP Rating | Waterproof IP67|NEMA 6 |
Weight | 4.5kg |
Operating Temperature | -15°C to +50°C |
Optional Accessories |
| Molded Cable M8-3 pins to M8-3Pins for X-Solar Box Only, PVC Material XSOLAR-CBL-2M for 2 meters of cable length XSOLAR-CBL-5M for 5 meters of cable length XSOLAR-CBL-10M for 10 meters of cable length |

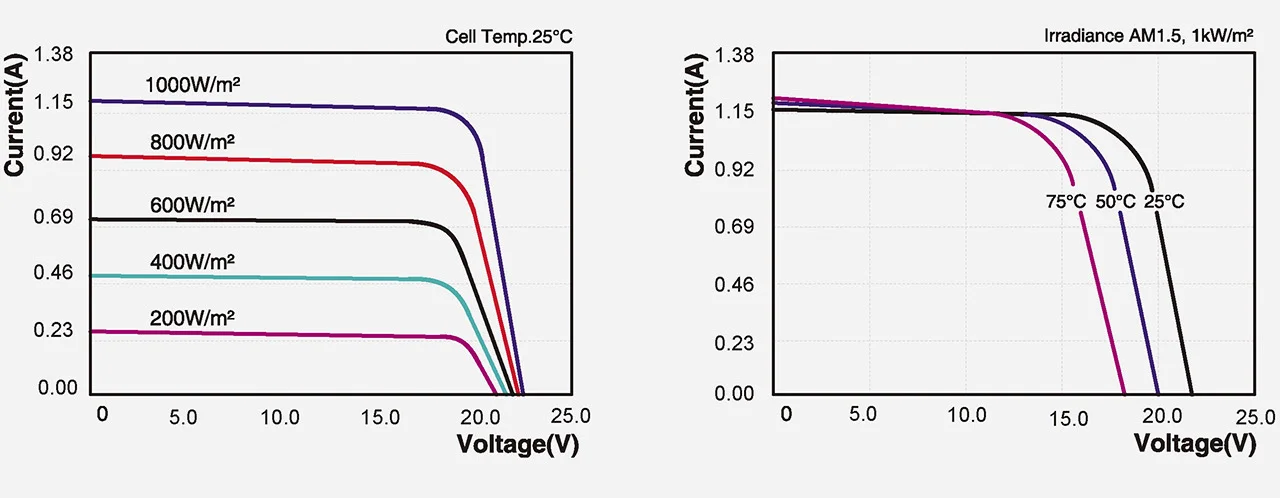

Solar Panel Characteristics

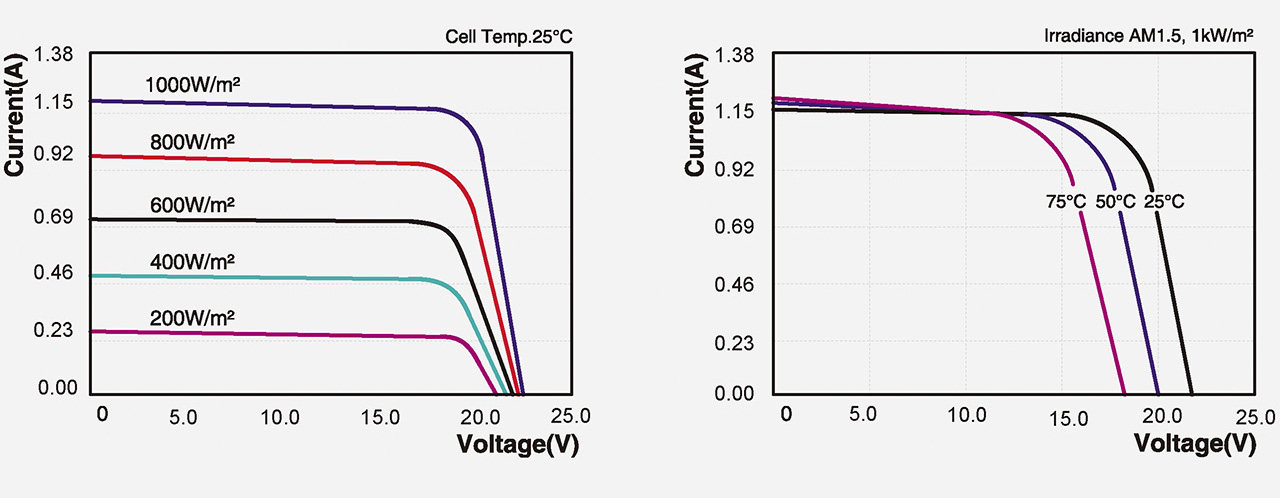

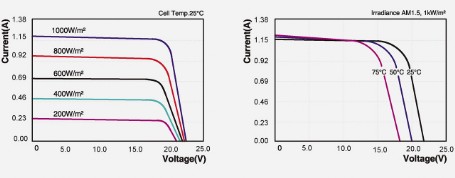

X-SOL-7AH-20W-1CH-4V-5M or X-SOL-7AH-20W-1CH-12V-5M

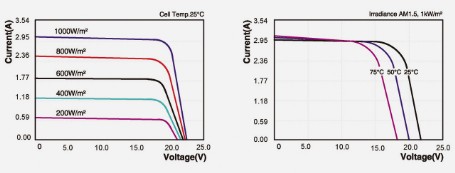

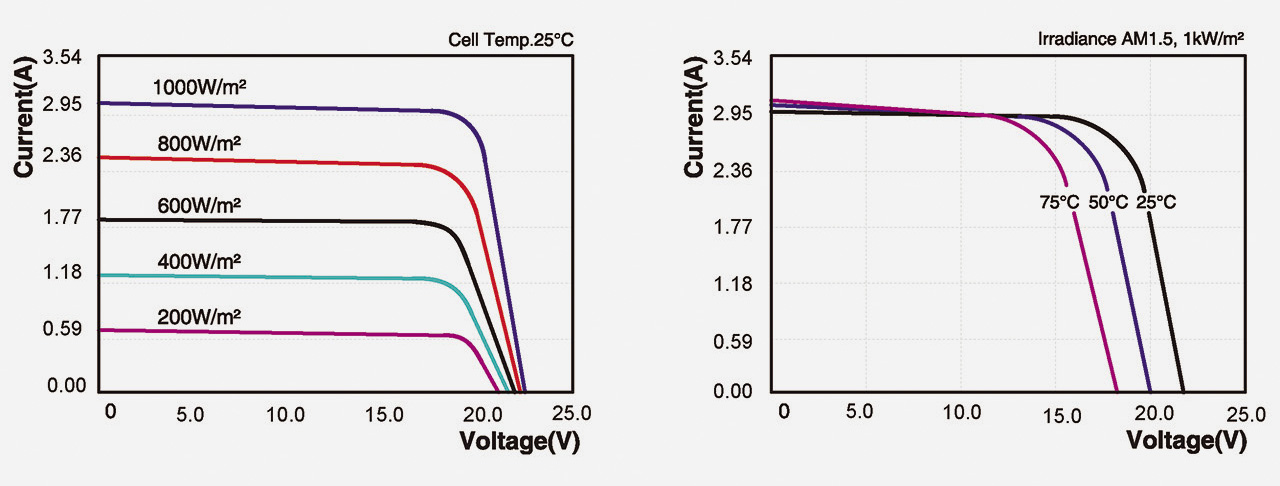

X-SOL-7AH-50W-1CH-4V-5M or X-SOL-7AH-50W-1CH-12V-5M

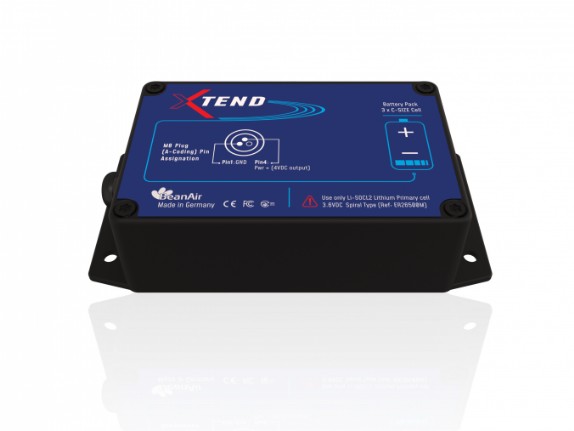

X-TEND
Battery box for long-term Monitoring Applications

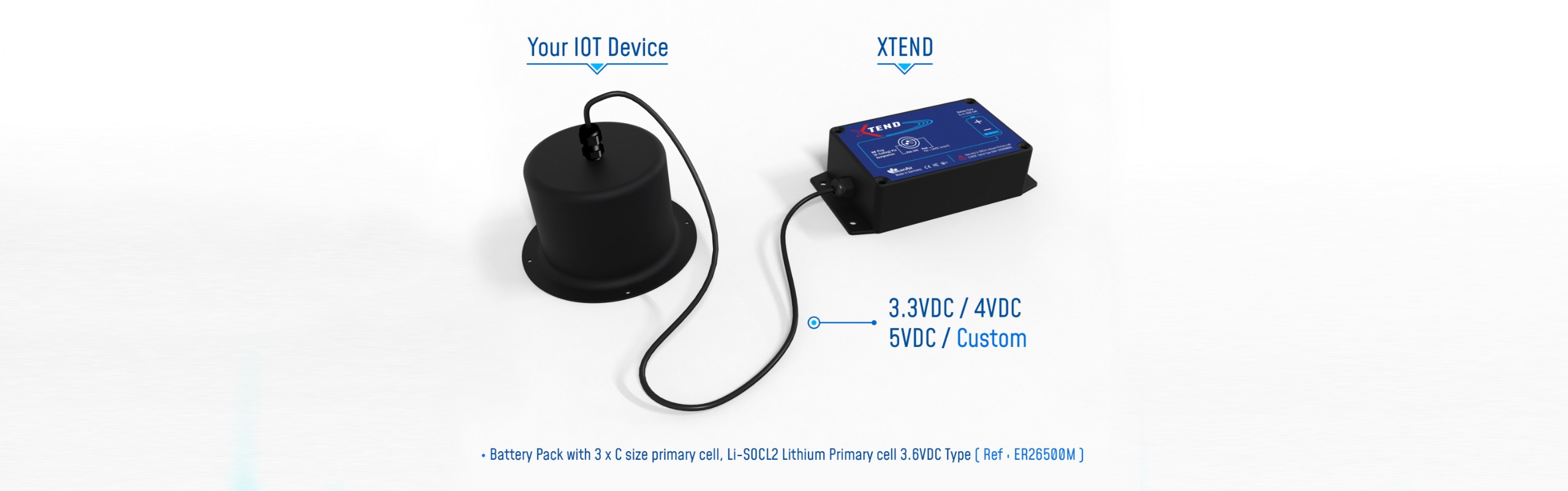

• Battery Pack with 3 x C size primary cell, Li-SOCL2 Lithium Primary cell 3.6VDC Type ( Ref : ER26500M )
• Capacitance 19.6Ah @3.3VDC, 16.2Ah @4VDC, 13AH @5VDC
• Suitable for your IOT sensor devices
• Waterproof (IP67) aluminum casing with 4 x eyelets for screw mouting
• Waterproof M8 plug , cable length : 2 meters, 5 meters and 10 meters

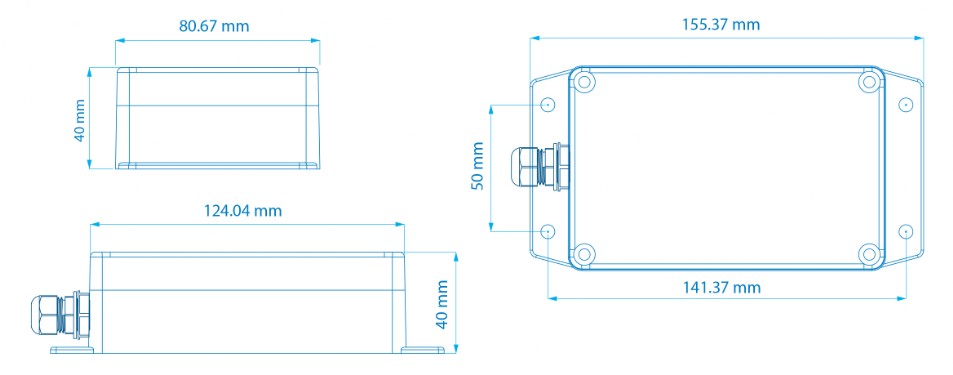

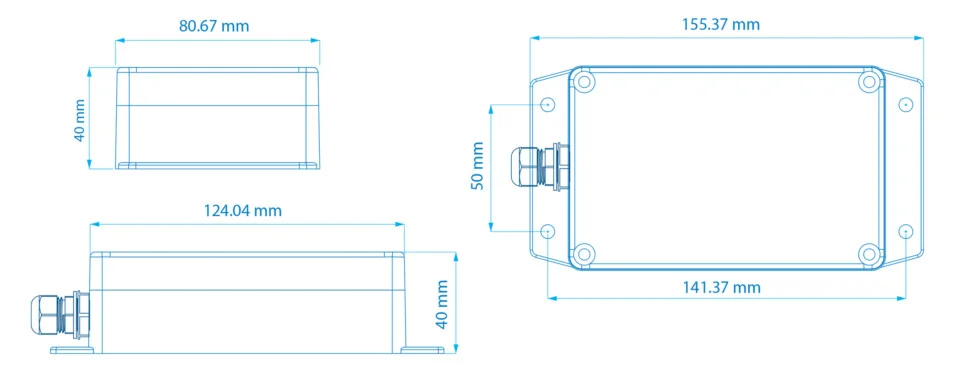

• Dimensions (with eyelets) : 155 x 80 x 40 mm • Weight : 700 g
Product Reference:
• PRIM-XTEND-2M : 2 meters of cable lenght
• PRIM-XTEND-5M : 5 meters of cable lenght
• PRIM-XTEND-10M : 10 meters of cable lenght
drawing
