Wilow® Sensor series
Supervision Software dedicated to Wireless IOT sensors | Wilow® product line
Real Time & fully integrated Data Base
The real time database records high sampling measurement plots and Wireless IOT sensors activities with a small memory footprint :
• No installation is needed
• Data backup (activable/disactivable functionality).
• Easily exportable data in CSV format (Access, Excel, Matlab, Labview...).
Sophisticated and intuitive GUI
The BeanScape® wilow offers a complete and intuitive real time view of our Wireless IOT sensors :
• Detailed and efficient viewset representing different alarm levels (4 different customizable alarm thresholds high/low)
• Automatic alarm diagnostics generated by BeanAir®’s expert system
• Highly customizable GUI allowing the user to name and rename components and to associate metrics (in case of sensors)
• Highly configurable data panel and multi-chart board.

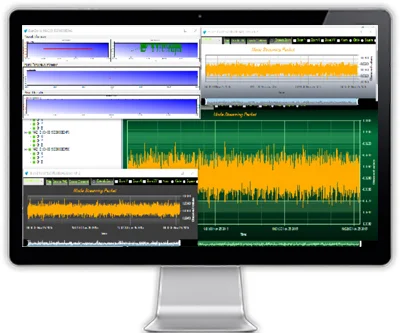

Active Supervision & Monitoring System
The BeanScape® Wilow® is an active monitoring system which allows a remote configuration of each and every component part of the Wireless IOT sensors:
• Data acquisition configuration: Data acquisition mode, sampling frequency and duration, sleeping mode cycle.
• Alarm notification by email when a measurement threshold is reached
• Power supply management
• Switch to manual or automatic radio channel with «Energy Scan» functionality (automatic setting to the best available radio channel)
• Sensor calibration interface
• Radio transmission configuration
• Global or partial network maintenance
• Visualization of all the information relative to the Wilow® IOT sensor performance: radio signal quality, PER ( Packet Error Rate)
• Battery diagnosis: battery level, battery voltage internal temperature,
• Real-Time FFT (Fast Fourier transform) and Velocity (BeanScape® Wilow® Basic)
• Automatic report : FFT, Velocity, PPV (Peak Particle Velocity)
BeanScape® Wilow® manager : Cost-free & eco-friendly Wireless IOT Sensors configurator
BeanScape® Wilow® Manager is suitable for users looking for configuring Beanair Wireless IOT sensors:
• Fully integrated Wilow® IOT Sensor Networks Maintenance and Installation Tool
• User Friendly and highly adaptable to user’s environment
• Real-time integrated Database
• MQTT configuration
• Data logging on CSV file
User looking for real-time data visualization, multi-Wireless IOT sensors supervision software, longer technical support and a full compatibility with a third-party supervision software, can migrate to the BeanScape® Wilow® Basic.
YOUR VIBRATION ANALYSIS REPORT AT A GLANCE
For user working on building and ground vibration, the BeanScape (except manager) provides advanced vibration analysis tools:
• Vibration analysis tools: FFT, PPV (Peak Particle Velocity), Velocity
• Automatic report meeting the DIN4150-3 standard (Excel, PDF and Word)
DIN4150-3 specifies a method of measuring and evaluating the effects of vibration on structures designed primarily for static loading. It applies to structures which do not need to be designed to specific standards or codes of practice as regards dynamic loading.
The report is generated with the following information:
• Building Type,
• Pipeline Material,
• Velocity Average,
• Sampling Rate,
• Analyze Duration,
• LTVEE: Long Term Vibration Evaluation Effect,
• LTEBP: Long Term Effect on Buried Pipework,
• STEBP: Short Term Effect on Buried Pipework,
• STVEE: Short Term Effect Evaluation
Minimum system requirements
To ensure optimal performance, your system should meet the following requirements:
• Processor: Intel Core i5 (Intel Core i7 recommended if using FFT and PPV functions)
• Operating System: Microsoft Windows XP (32-bit), Windows Server 2003 (32-bit), Windows
Server 2008 (32-bit), Windows Vista (32-bit), Windows 7 (32-bit and 64-bit), Windows 10 (32-bit
and 64-bit), or Windows 11 (32-bit and 64-bit)
• Memory: 8GB RAM (16GB RAM recommended if using FFT and PPV functions)
• Storage: 10GB of available disk space
• Graphics: 1GB dedicated graphics card (integrated or shared graphics cards are not recommended)
