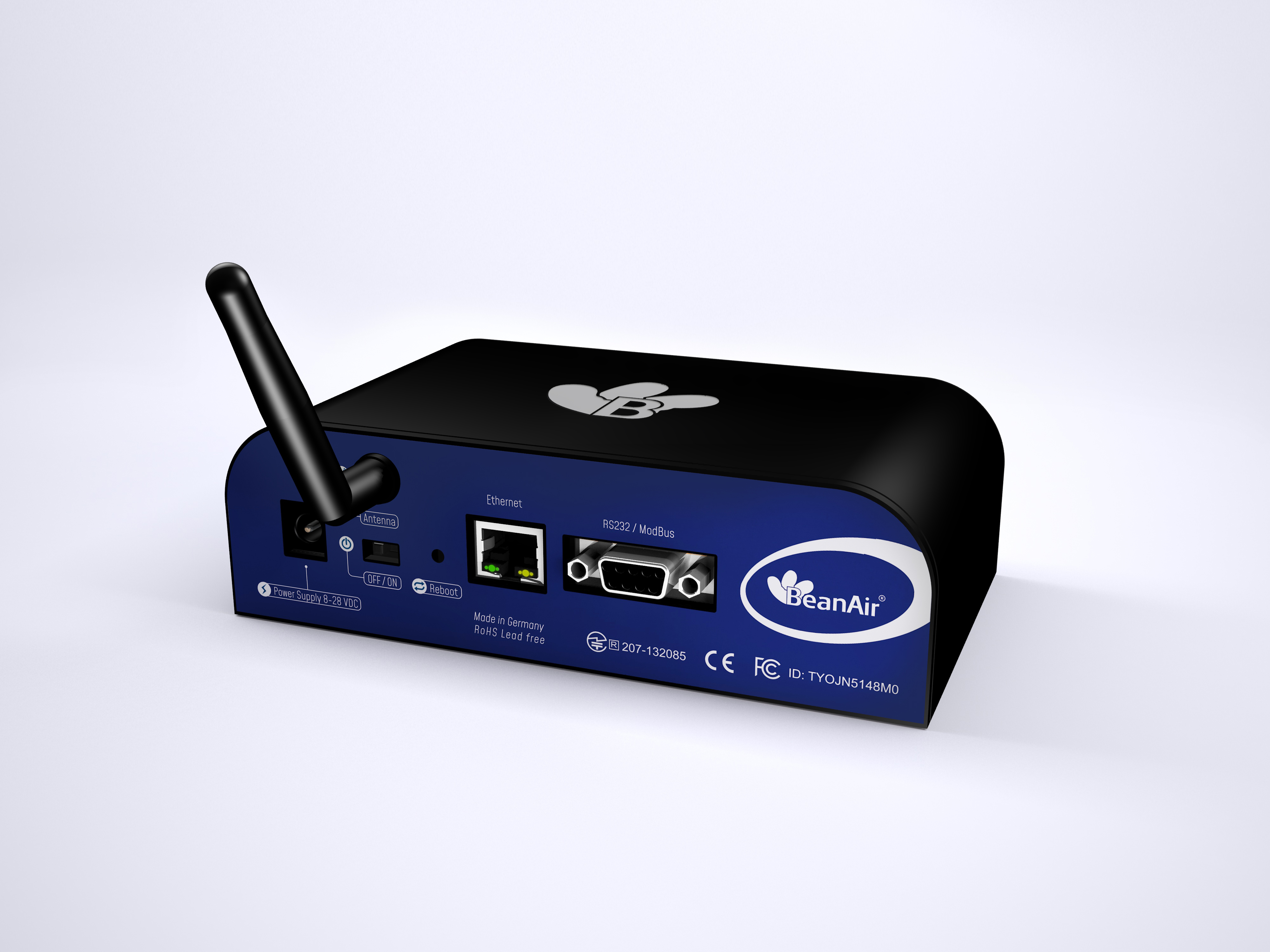

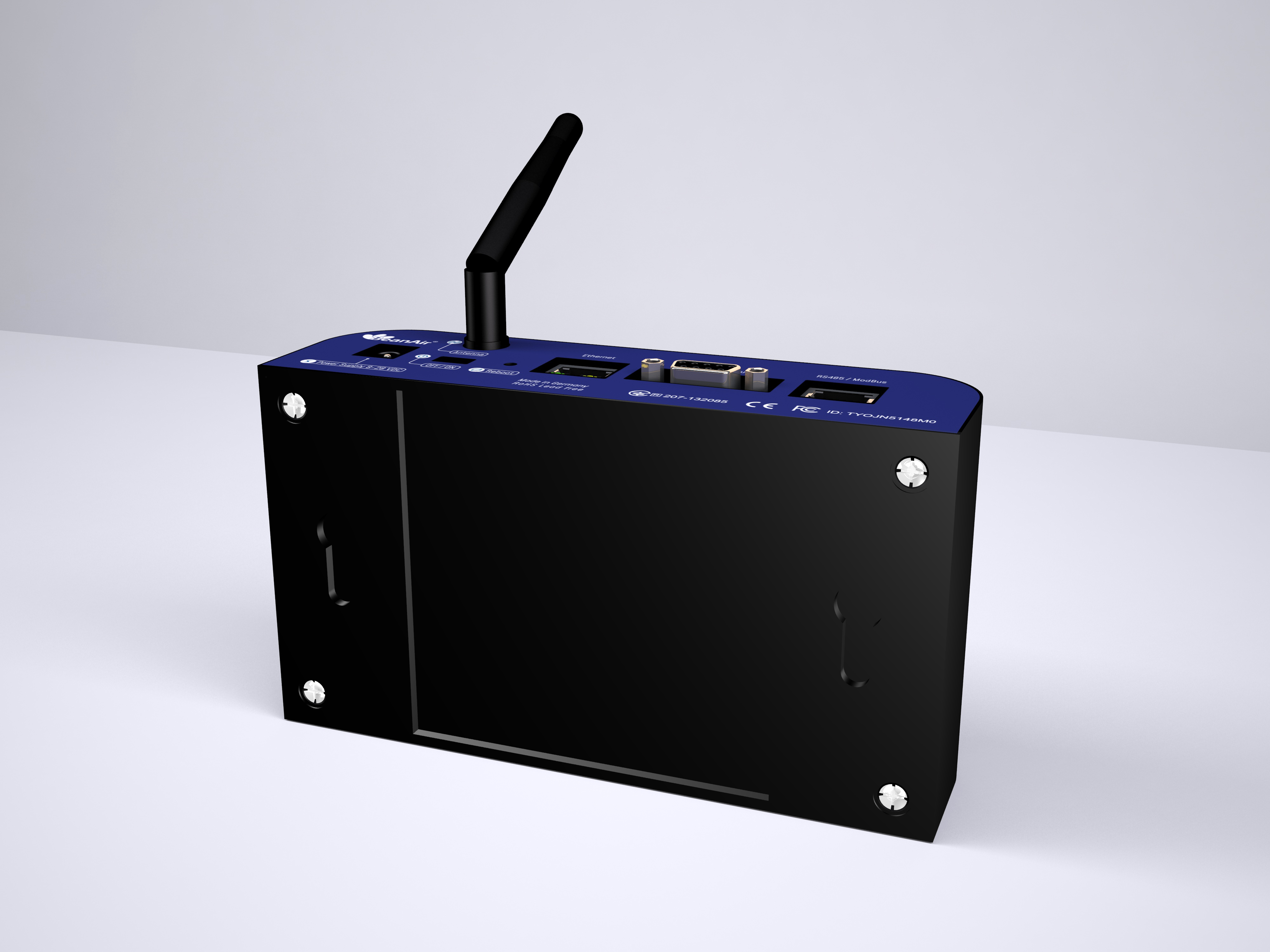

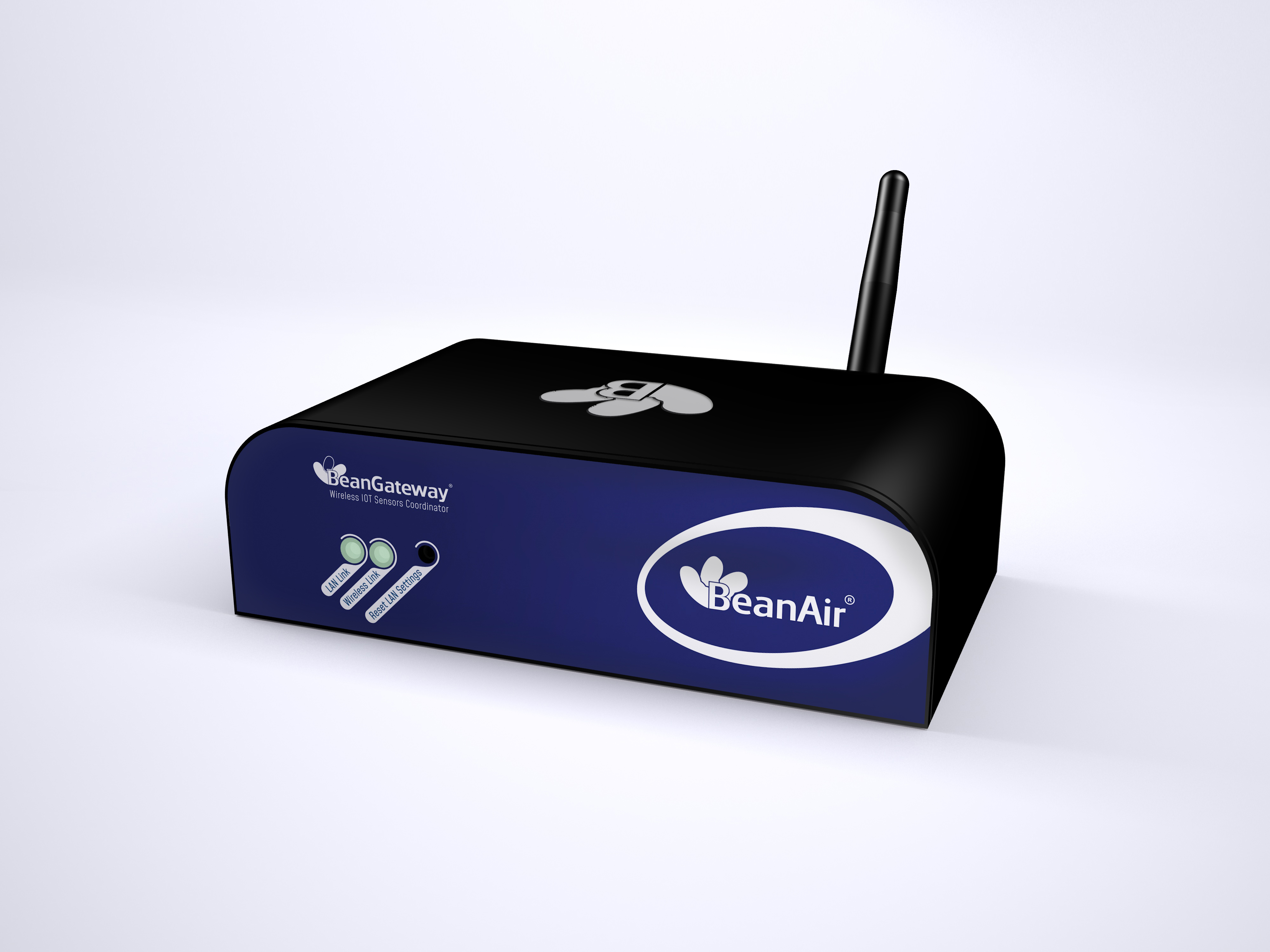

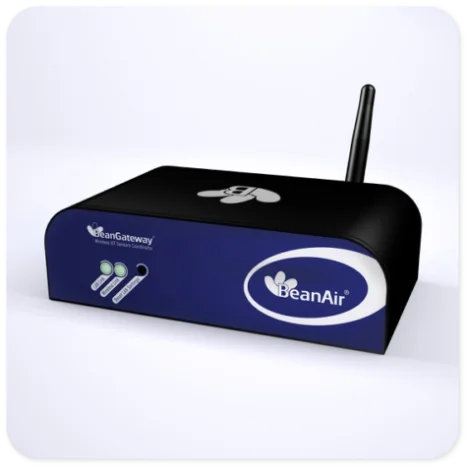

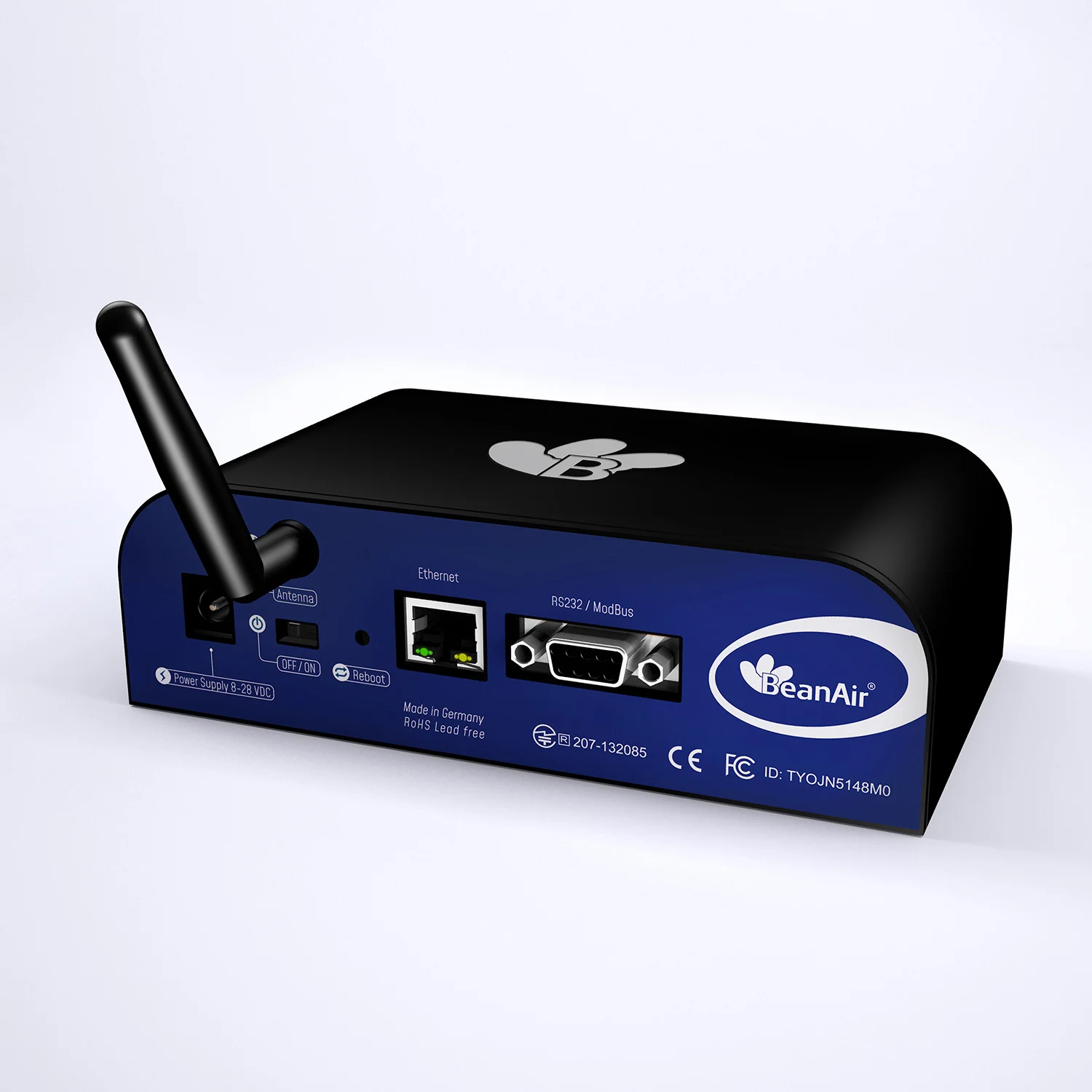

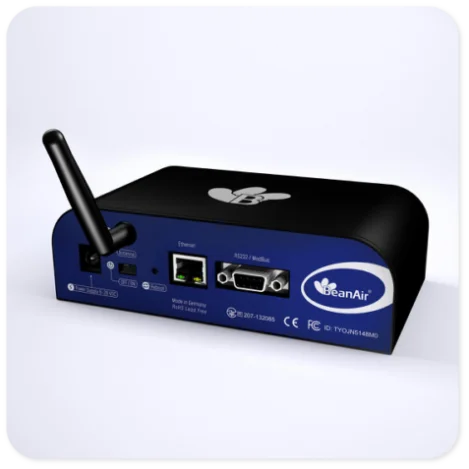

Wireless IoT Gateway | 2.4GHz
Ethernet Link | Indoor Version

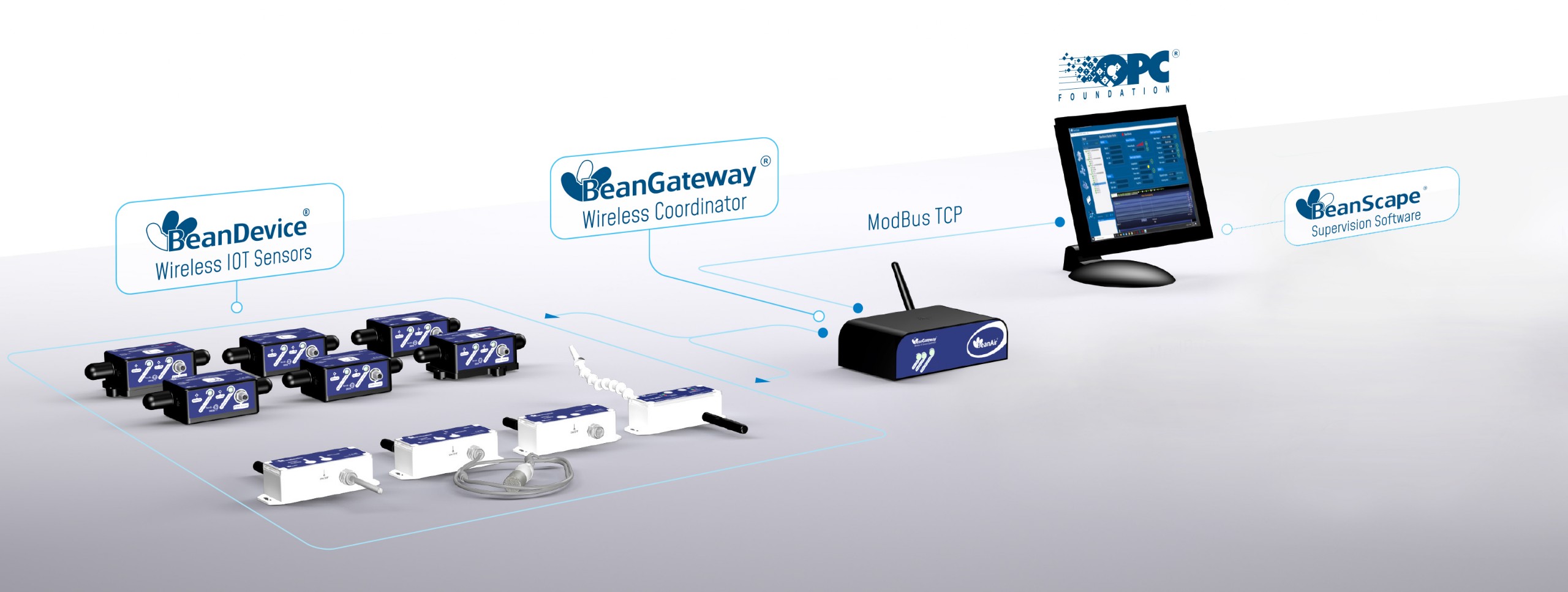

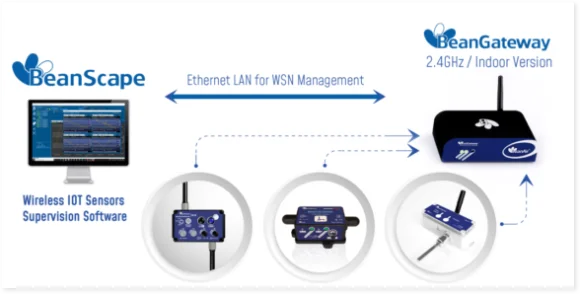

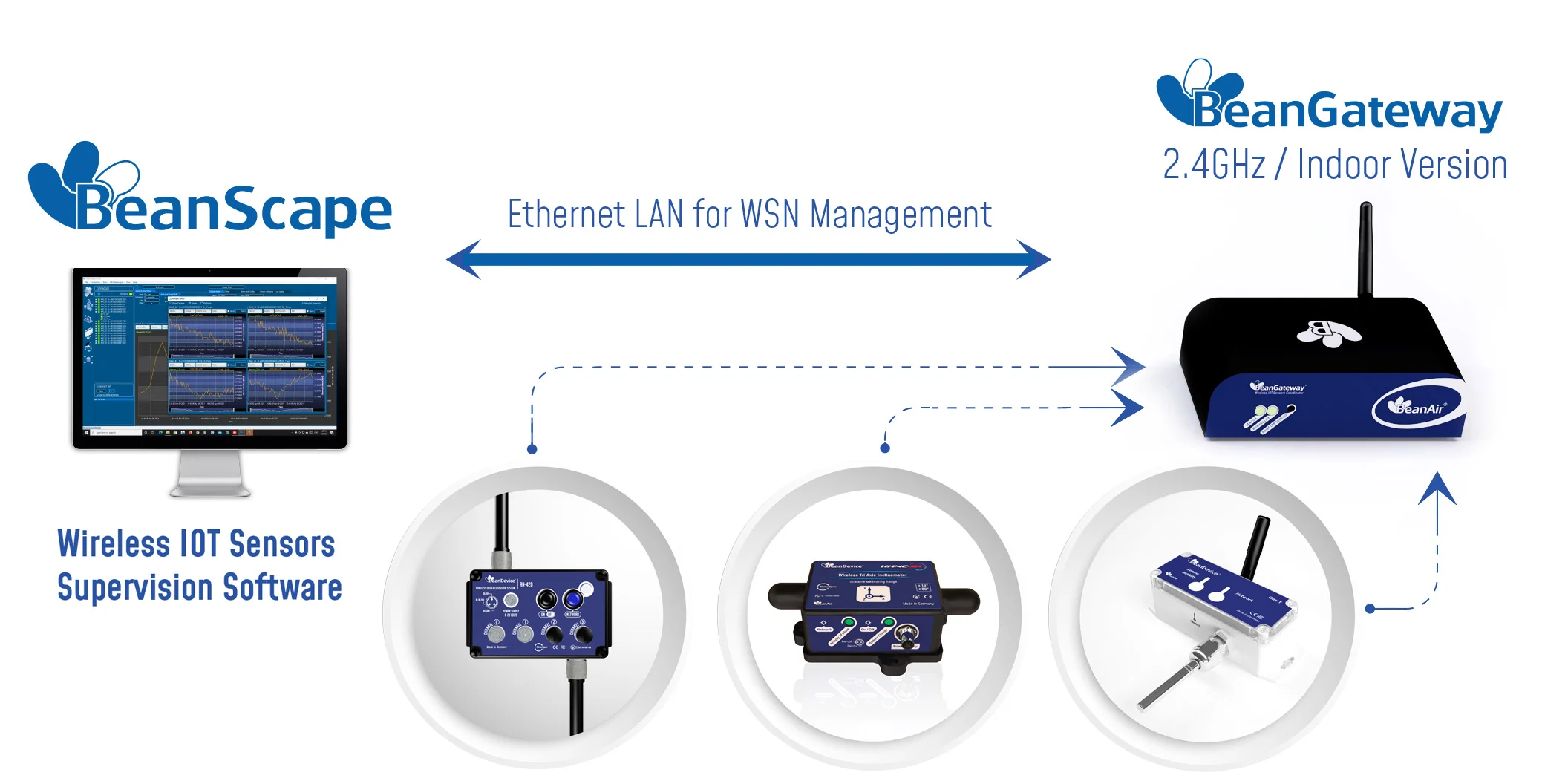

Experience effortless management of your Beanair® wireless sensor network with the BeanGateway® Ethernet (Indoor version). This intelligent gateway efficiently orchestrates communication and data flow for all your BeanDevice® sensors, ensuring reliability and performance. It secures external network access with a highly robust authentication process, protecting your critical data. By handling data conversion, compression, and IP connectivity, the BeanGateway® reduces the complexity and associated costs of your overall system. Reliability is paramount. The BeanGateway® Ethernet operates with an external DC 8-28V power supply and features an integrated rechargeable battery for uninterruptible power. This built-in UPS functionality guarantees continuous operation of your wireless sensor network and Ethernet LAN, even during sudden power interruptions. Deploy with confidence in remote sites thanks to our powerful Wireless Sensor Network (WSN) mapping management, offering: • Automatic Data Security: Network configurations are automatically backed up to both flash memory and the BeanScape® software. • Effortless Scalability: Easily export and import network configurations to streamline deployment across multiple BeanGateway® units. | |||
 | • Included Free Software | ||
Technical Specifications
Product Reference | ||
BGTW-2.4GHz-ETH-IND | ||
Wireless IOT Sensors Coordinator | ||
Wireless Technology | Ultra-Low-Power and license-free 2.4Ghz radio technology (IEEE 802.15.4E) | |
WSN Topology | Peer-to-peer/ Star | |
Raw Data rate | 250 Kbits/s | |
RF Characteristics | ISM 2.4GHz – 16 Channels. | |
RF Transmit Power | +18 dBm | |
Receiver Sensitivity | -104 dBm | |
Maximum Radio Range | 1 km (Line of Sight) , 70-150m (Non Line of Sight) | |
Built-in Wireless IIOT Sensors Diagnostic tool | - Energy Scan for choosing a suitable RF Channel - BeanDevice® PER (Packet Error Rate) calculation - LQI (Link Quality Indicator) between the BeanGateway® and the BeanDevice® - RF channels Blacklist | |

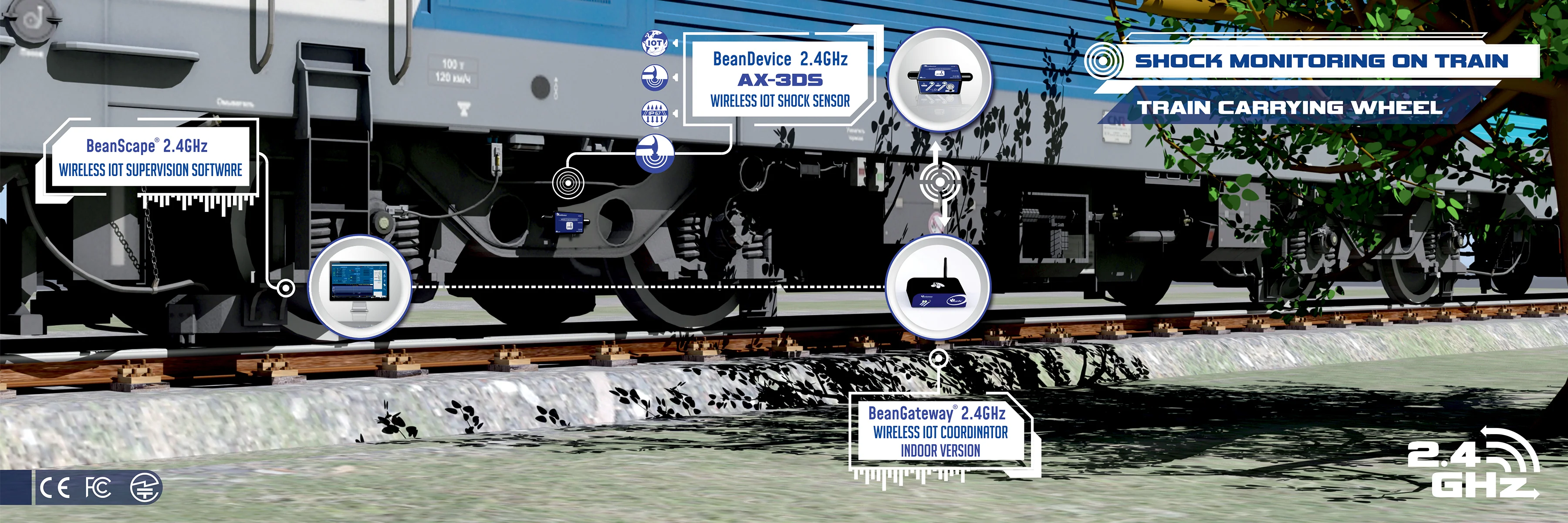

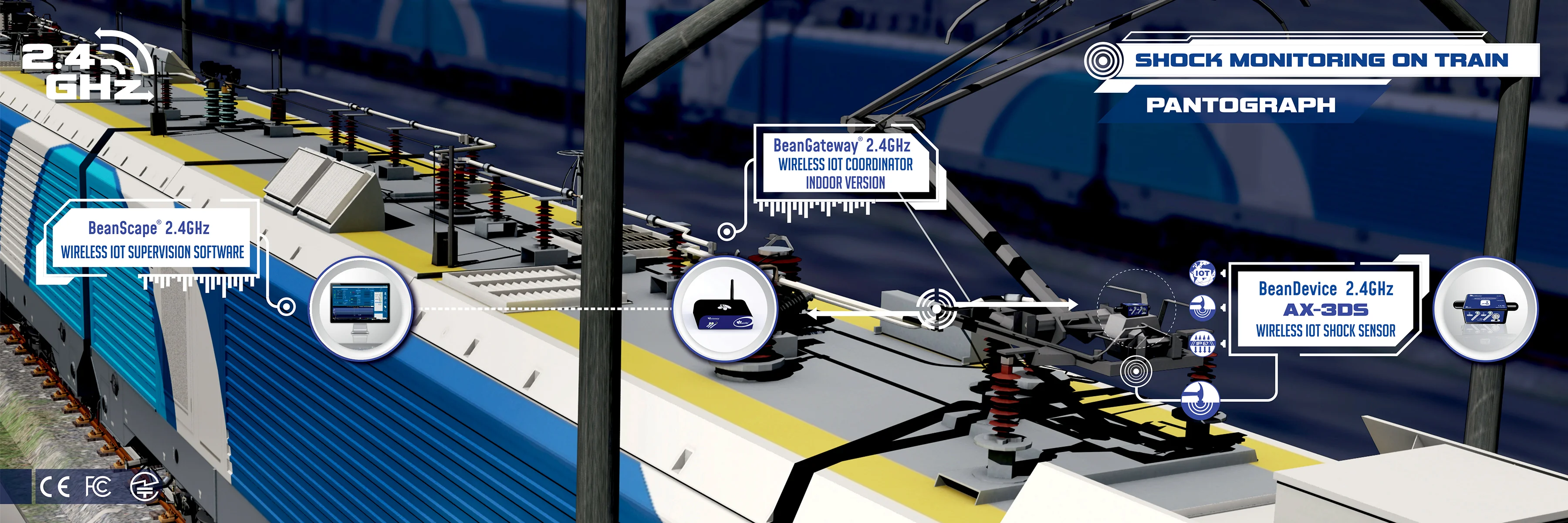

Applications

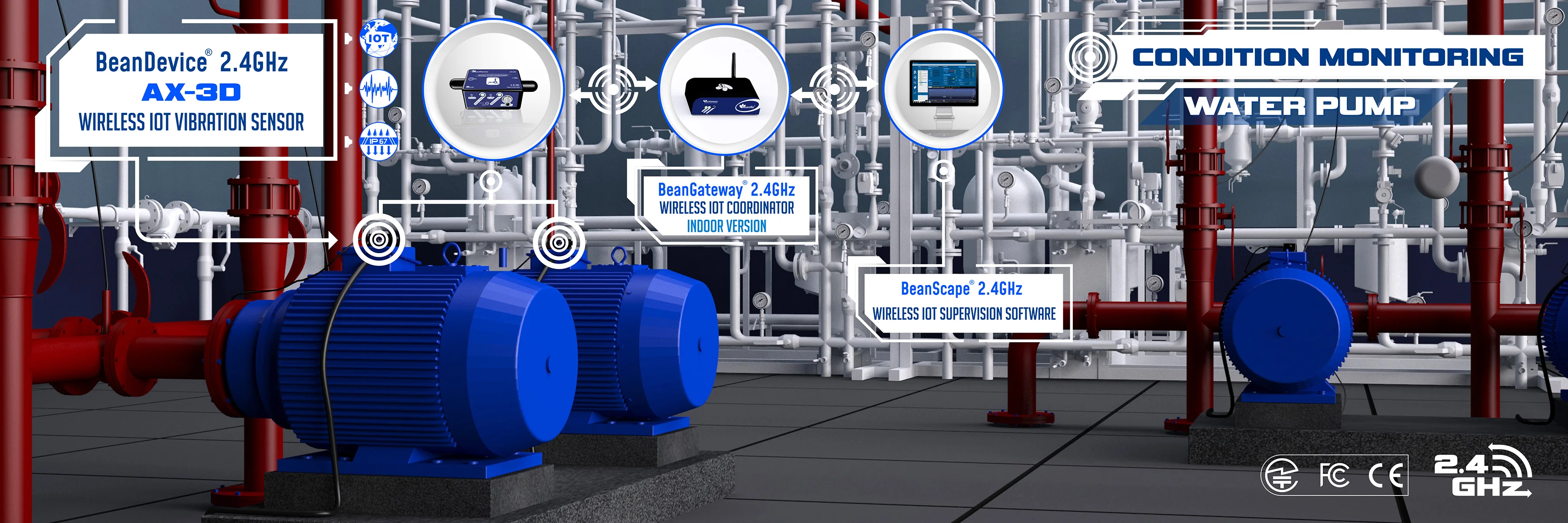

Water Pump Monitoring | |||
 |
Video
Featured Video
Product Video
Accessories
INCLUDED ACCESSORIES | |
 | 2.4 GHz Antenna · High gain antenna 5.5 dBi · V.S.W.R : 1.5 :1 · Connector : RPSMA |
 | Ethernet Cable · RJ45 Male · Cable length: 2 meters |
 | Wall plug-in power supply Wall plug-in, Switchmode power Supply 12V @ 1.25A |
