Technical Specifications
Product Reference | |
BND-2.4GHz-INC –MR–PS | |
MR – Measurement Range: - 30B : bi-axis ±30° - 90B : bi-axis ±90° | PS - Power supply : RB : Internal rechargeable battery XT : External Primary cell |
Example 1: BND-2.4GHz-INC-30B-RB-wireless bi-axial inclinometer with ±30° measurement range, internal rechargeable battery Example 2: BND-2.4GHz-INC-90B-XT-wireless bi-axial inclinometer with ±90° measurement range, external primary cell | |
Sensor specifications | |
Inclinometer technology | Accurate and low power MEMS technology |
Measurement resolution (Bandwidth 10 Hz) | 0,0025° |
Noise density | 0.0008 °/√Hz |
Measurement Repeatability (full scale, @ 25°C, Static Measurement Mode every 2s) | ±0.04° for bi-axis ±30° version ±0.08° for bi-axis ±90° version |
Long term stability (@23°C) | < 0.014 ° |
Offset temperature dependency | ±0.008 °/°C |
Sensitivity temperature dependency | ±0.008 %/°C |
Analog to Digital converter | 16-bits, SAR architecture (Successive Approximation Register) with temperature compensation |
Sensor frequency Response (-3 dB) | DC to 28 Hz |
Noise spectral density DC to 100 Hz | 0.0008 °/ √Hz |
Anti-aliasing Hardware filter | Butterworth 5th order filter – cut-off frequency : 1 Hz to 100 Hz remotely programmable (BeanScape®) |
Configurable settings from the BeanScape® 2.4GHz software | |
Data Acquisition mode (SPS = sample per second) | Static Data Acquisition: Low Duty Cycle Data Acquisition (LDCDA) and Alarm Mode (based on alarm thresholds) . Measurement heartbeat 1s to 24 hour Dynamic data acquisition(not available on devices with ref. extension XT ): Streaming and S.E.T. (Streaming with Event Trigger) Mode |
Alarm Threshold | Three-level alarms : Alert < Action < Alarm |
Sampling Rate (in streaming and S.E.T mode) | Minimum: 1 SPS Maximum: 100 SPS on each axis |
Programmable Cut-off frequency (Anti-aliasing filter) | 1-100 Hz |
Power Mode | Battery saver mode & Active power mode (not available on XT version, External power supply) |
RF Specifications | |
Wireless Technology | Ultra-Power and license-free 2.4Ghz radio technology (IEEE 802.15.4E) |
WSN Topology | Point-to-Point / Star |
Data rate | 250 Kbits/s |
RF Characteristics | ISM 2.4GHz – 16 Channels. Antenna diversity architecture designed by BeanAir® |
TX Power | +18 dBm |
Receiver Sensitivity | -104 dBm |
Maximum Radio Range | High Gain Antenna : 400m max (L.O.S, Antenna Pointing to Vertical position, BeanGateway Installed on a mast 10 meters height), 60-120m (N.L.O.S.) Integrated Radome Antenna : 150m max (L.O.S, Antenna Pointing to Vertical position, BeanGateway Installed on a mast 10 meters height), 30-60m (N.L.O.S.) |
Antenna | Antenna diversity : High Gain Antenna version: 2 x N-Type Antenna 5dBi , IP67 Radome Antenna version: 2 x Antenna 1.9 dBi , IP67 |
Embedded Data logger | |
Storage Capacity | up to 1 million data points |
Wireless data downloading | 3 minutes to download the full memory (average time) |
TimeSync function : Clock synchronization over the Wireless Sensor Networks (WSN) | |
Clock synchronization accuracy | ±2.5 ms (at 25°C) |
Crystal specifications | Tolerance ±10ppm, stability ±10ppm |
Environmental and Mechanical | |
Casing | Aluminum AL6061 & Waterpoof casing Dimensions in mm (LxWxH) without Antenna: 100x55x36 mm Weight : 200g with Integrated Radome Antenna 400g with HG Antenna (antenna included) |
Shocks resistance | 100g during 50 ms |
Operating Temperature | RB : Internal rechargeable battery -40 °C to +60 °C XT : External Power Supply -40 °C to +75 °C during battery discharge |
Norms & Radio certifications | • CE Labelling Directive R&TTE (Radio) ETSI EN 300 328 • FCC (North America) • ARIB STD-T66 Ver 3.6 • ROHS - Directive 2002/95/EC |
IP|NEMA Rating | IP67 | Nema 6 |
INCLUDED ACCESSORIES |
1x Magnet to Power ON/Power OFF the device 1x M8 Cap for Power Supply |
Optional Accessories and Services | |
External Power Supply | Wall plug-in, Switchmode power Supply 12V @ 1,25A with sealed M8 Plug (IP67/Nema 6) Ref: M8-PWR-12V |
| Standalone Solar System | High efficiency solar panel with with Solar charging controller and Lead-acid battery Ref.: X-SOL-7AH-20W-4V-5M for XT version Ref.: X-SOL-7AH-20W-12V-5M for RB version Ref: X-SOL-14AH-20W-4CH-4V-5M for XT version Ref: X-SOL-14AH-20W-4CH-12V-5M for RB version Ref: X-SOL-14AH-80W-4CH-4V-5M for XT version Ref: X-SOL-14AH-80W-4CH-12V-5M for RB version More options and references are available on X-SOLAR datasheet |
External Primary Cell in a Waterproof IP67 Casing | Waterproof IP67 battery box for long-term monitoring applications IP67 Battery Holder Battery Pack with 3 x C size primary cell, Li-SOCL2 Lithium Primary cell 3.6VDC Type Ref: PRIM-XTENDER |
| M8 extension cable for external power supply | Molded cable with M8-3pins male plug Material: PVC with shield protection IP Rating : IP67 | Nema 6 Cable length: 2 meters , Ref: CBL-M8-2M Cable length : 5 meters, Ref: CBL-M8-5M Cable length: 10 meters, Ref: CBL-M8-10M |
| Calibration certificate | Calibration certificate provided by Beanair Sensors. Important: This document should be requested during the sensor ordering. A static calibration method is used on a granite surface plate DIN876 Ref: CERT-CAL-SMART |
Power supply | |
Integrated battery charger | Integrated Lithium-ion battery charger with high precision battery monitoring : • Overvoltage/Overcurrent/Short-Circuit/Undervoltage protection • Battery Temperature monitoring |
Current consumption @ 3.3V | • During data acquisition : 30 to 40 mA • During Radio transmission : 80 mA @ 18 dBm • During Battery Saver Mode : < 38 µA |
External power supply | 8-28VDC with reverse polarity protection IEC-61000-4-2: ESD 30kV(Air), 30kV (Contact) Surge protection > 28VDC (600W during 10us max) |
Rechargeable battery | 2 Ah, Lithium-Polymer battery |
Included Accessories

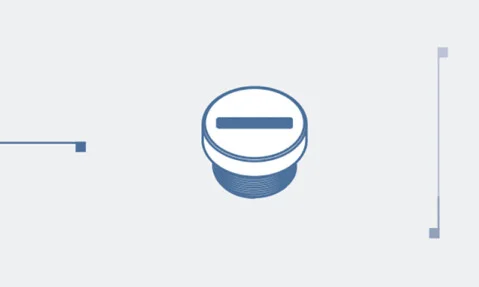

M8 plastic cap
1 x M8 Cap for Power Supply

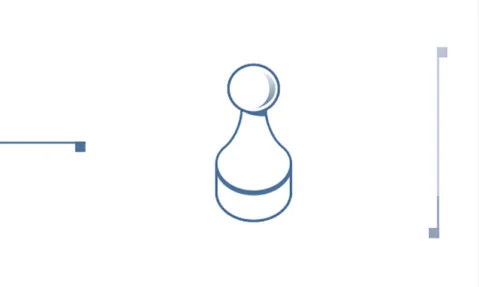

Magnet for Power ON | Power OFF
1pcs Magnet.
Optional Accessories and Services

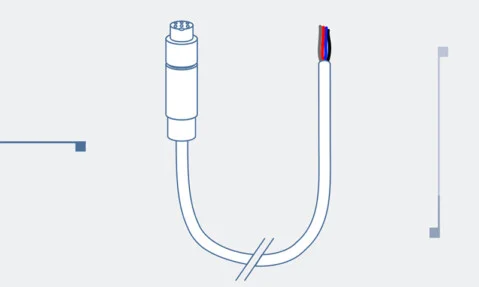

Molded Cable, M8 Male Plug to Bare wire
For sensor power supply (8-28VDC)
Material: PVC
IP Rating : Waterproof-IP67 ( M8 Plug side in locked conditions )
Cable length: 2 meters , Ref: CBL-M8-2M
Cable length : 5 meters, Ref: CBL-M8-5M
Cable length: 10 meters, Ref: CBL-M8-10M
Switch-Mode Power Supply 12V with M8-3Pins plug
Power supply complies with IS 13252 (Part 1)/IEC 60950
1-Safety Standards
Cable Lenght: 1.5meters
IP Rating : Waterproof-IP67 ( M8 Plug side in locked conditions )
Ref: M8-PWR-12V
External Battery Pack
Waterproof IP67 battery box for long-term monitoring applications
Ref: PRIM-XTEND
Solar Panel Kit
X-Solar 14ah | Solar Panel with Solar Charging Controller
Ref: X-SOL-14AH-SLP-VOUT-CL
Calibration Certificate
Calibration certificate provided by Beanair GmbH
A static calibration method is used on a granite surface plate DIN876
Ref: CERT-CAL-SMART
