2.4GHz | Wireless IoT Tri-Axis Inclinometer Sensor

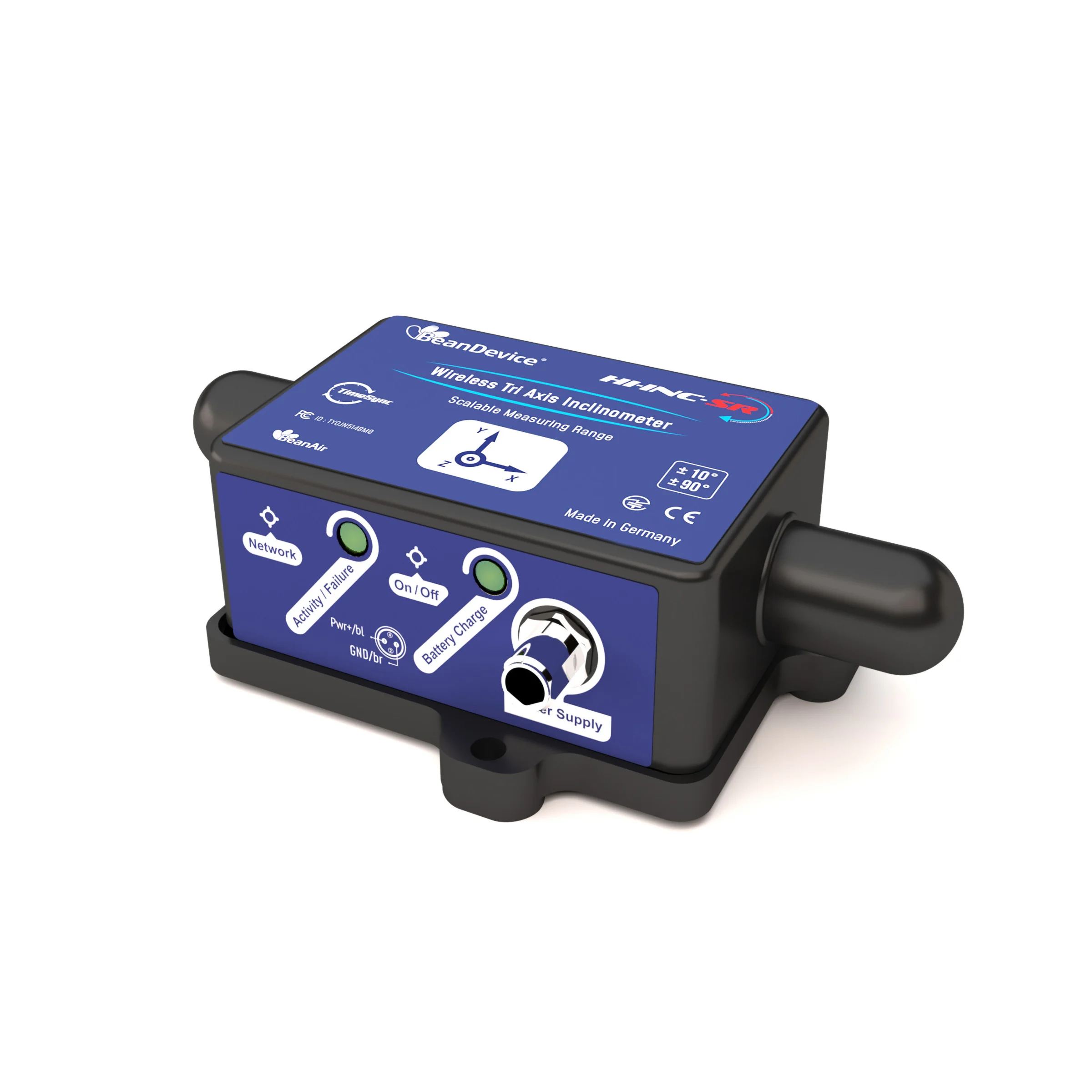

BeanDevice® 2.4GHz \| HI-INC SR
The BeanDevice® HI-INC SR is a high-performance wireless trix-axis inclinometer designed with a scalable measuring range (±10° and ±90°, with automatic range adjustment depending on the application). It provides exceptional precision, offering accuracy of up to ±0.01° for the ±10° range and ±0.02° for the ±90° range. Additionally, it incorporates a built-in temperature sensor, located at the device’s base, to monitor the temperature of your equipment or structure.
		• Included Free Software • BeanScape® 2.4GHz LITE®

Read our technical article on SHM Monitoring

• Wireless Protocol:

• 2.4GHz radio Technology

• Tri-Axis Range:

• ±10° and ±90° ( scalable )

• Enclosure:

• Waterproof ( IP67 / NEMA 6 )

• Integrated data logger:

• Up to 8 million data points

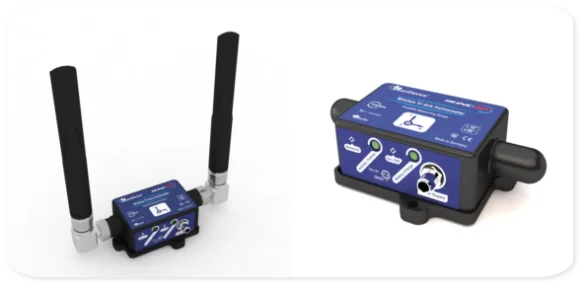

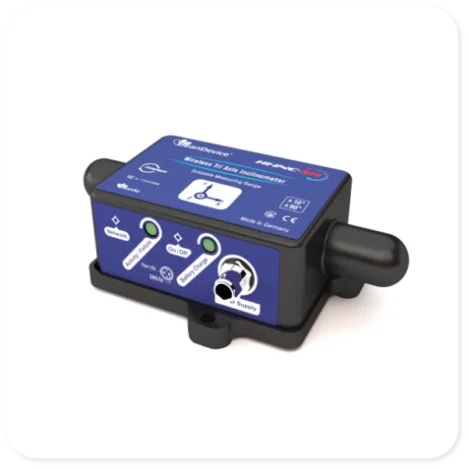

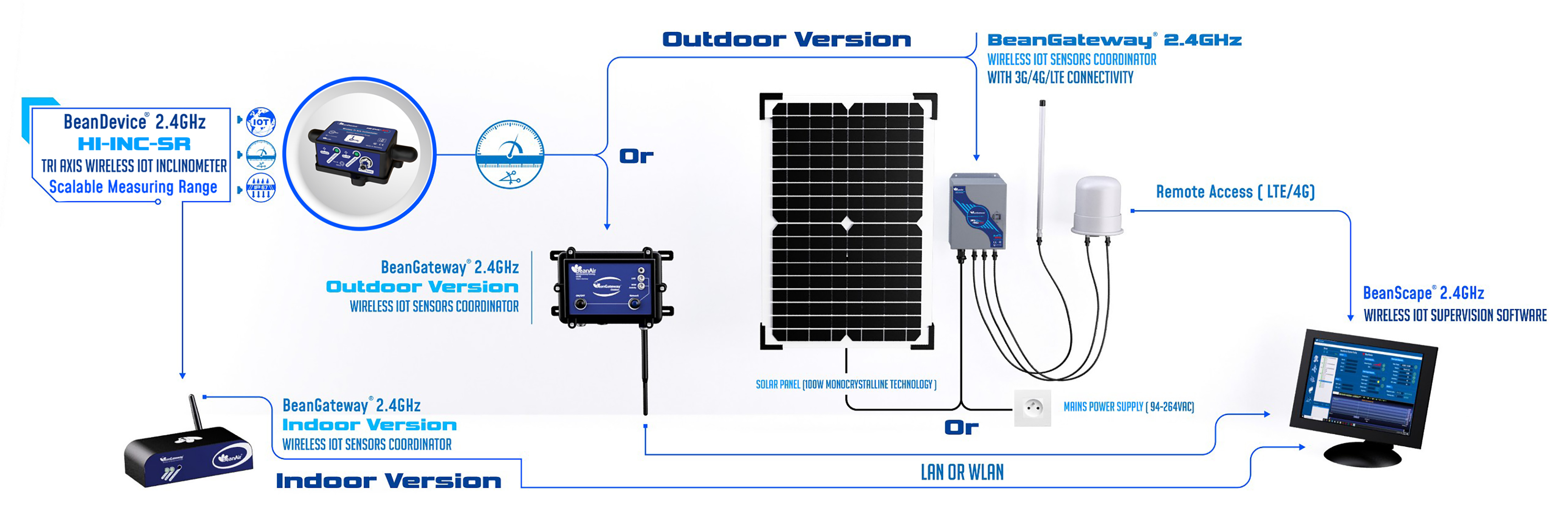

2.4GHz | SmartSensor with Antenna options

Technical Specifications

Technical Specifications

Main Features Ordering Sensor Specifications Temp. Sensor Software RF Specifications Data logger TimeSync Mechanical Accessories Power supply

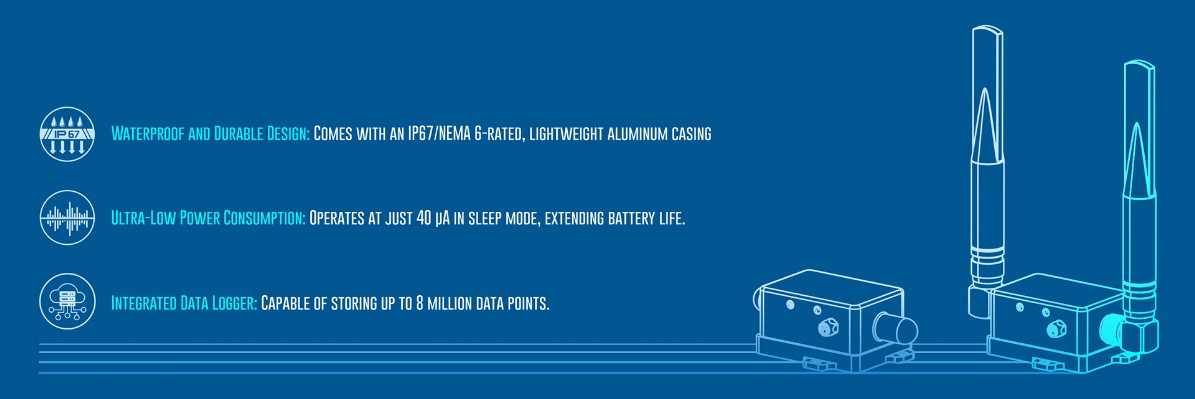

High performance wireless tri-axial inclinometer sensor based on MEMS Technology
Scalable Range: ±10° or ±90° with automatic range adjustment
High Resolution 0.0055° and a High precision (±0.01° for ±10° range, ±0.02° for ±90° range)
Ultra-Power and license-free 2.4Ghz radio technology (IEEE 802.15.4E)
Wireless range : -High Gain Antenna : 400m max LOS* , 60-120m (N.L.O.S.) -Integrated Low-profile Antenna : 150m max** , 30-60m (N.L.O.S.)
Maximum sampling rate: 80 samples per second (±90° range configuration)
Integrated temperature sensor for equipment/structure temperature monitoring
Non-contact Power ON/OFF for faster and safer installation
Current consumption in Battery Saver Mode: < 40uA @3.3V
Embedded Data Logger: up to 8 million data points (with events dating)
Integrated Lithium-Polymer rechargeable battery with industrial battery charger (8-28VDC)

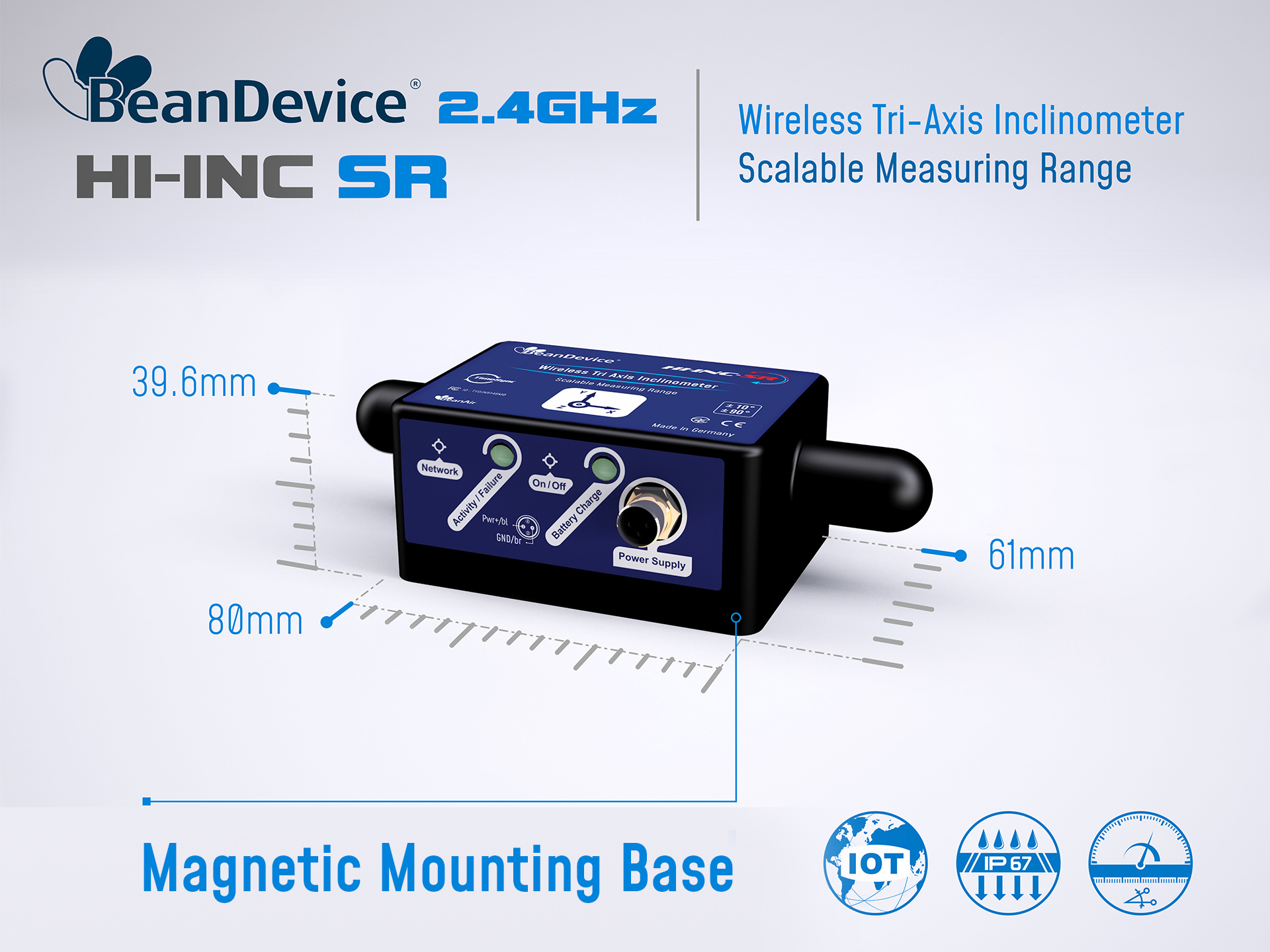

Waterproof (IP67 \| Nema 6) aluminum casing (dimensions Lxlxh: 100x71x38 mm)
Mounting process: screw mounting or magnetic mounting

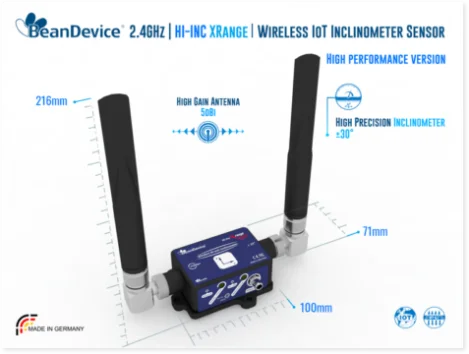

High Gain Antenna Pointing to Vertical position, BeanGateway® Installed on a mast 10 meters height with 9dBi Antenna *Low Profile Antenna Pointing to Vertical position, BeanGateway® Installed on a mast 10 meters height with 9dBi Antenna

Applications

The BeanDevice® HI-INC SR is suitable for a wide range of use cases, including:

• Land Surveying

• Structural Health Monitoring (SHM)

• Test and Measurement

• Railway Sleeper Monitoring

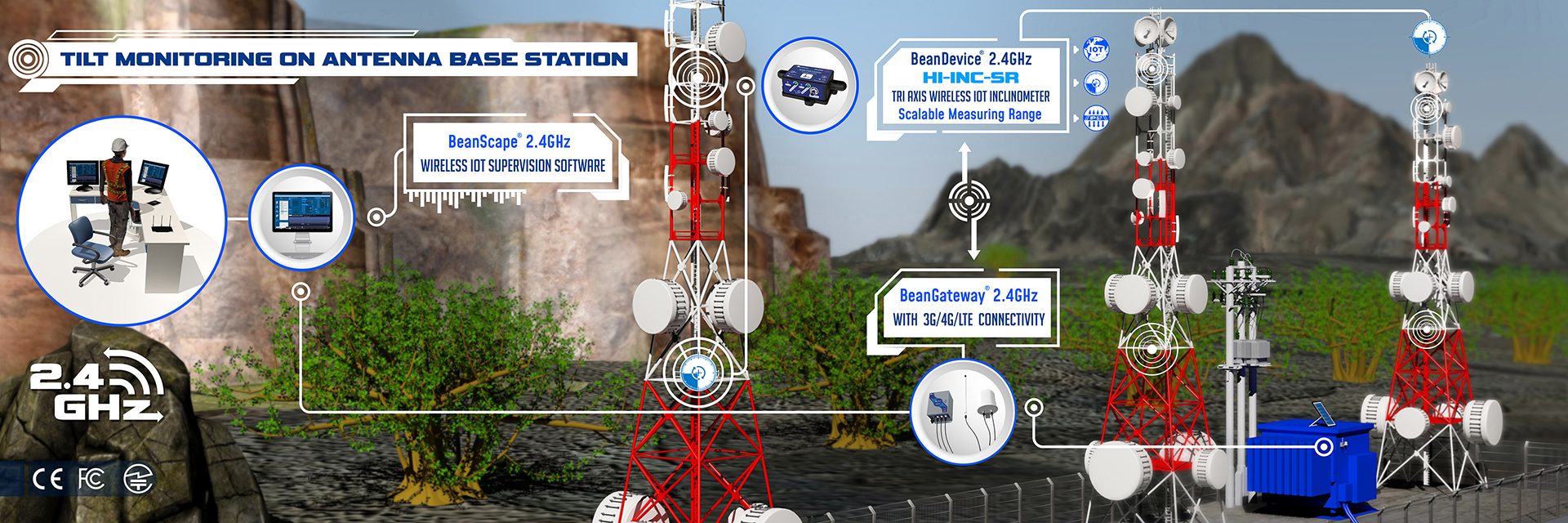

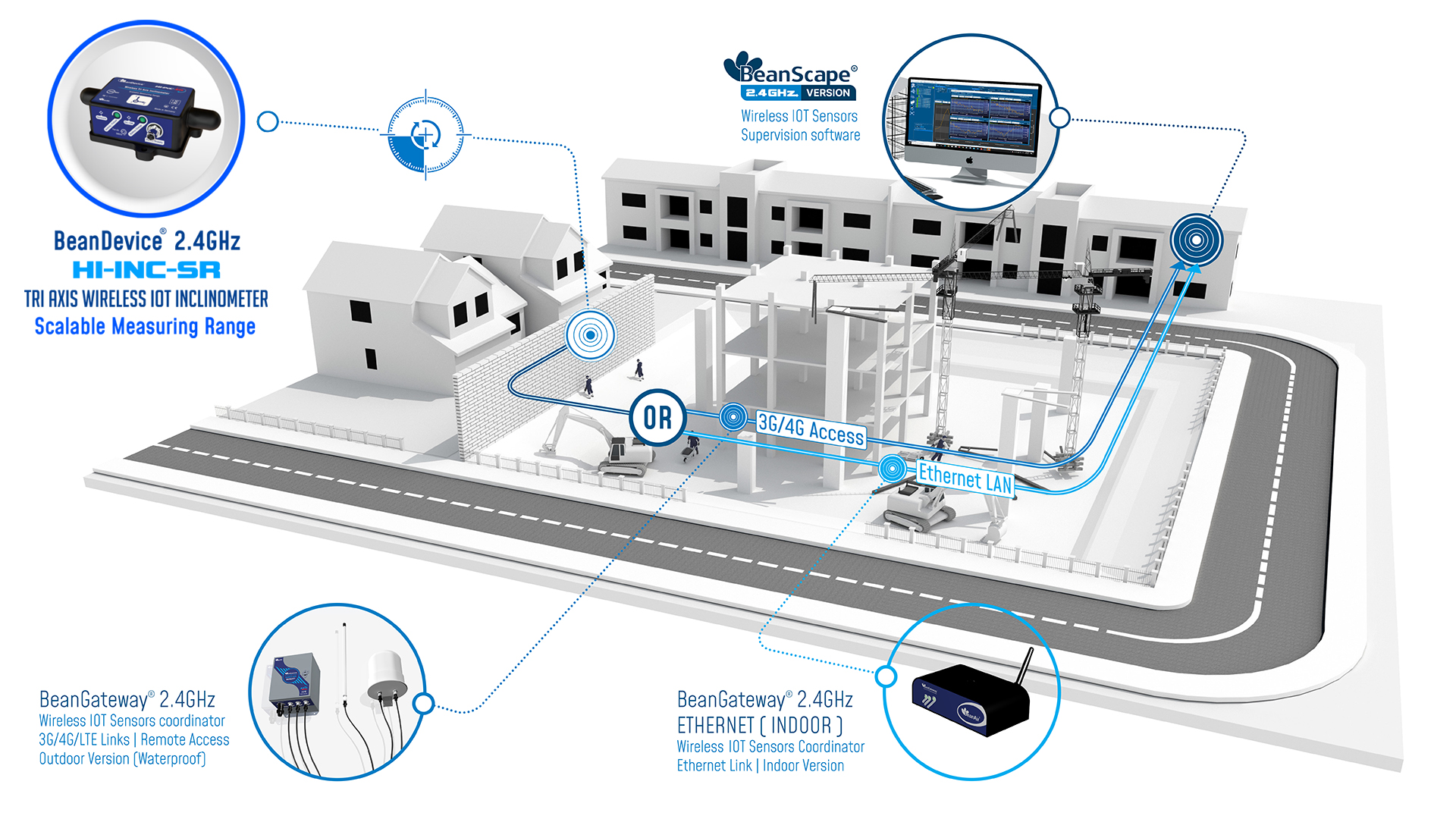

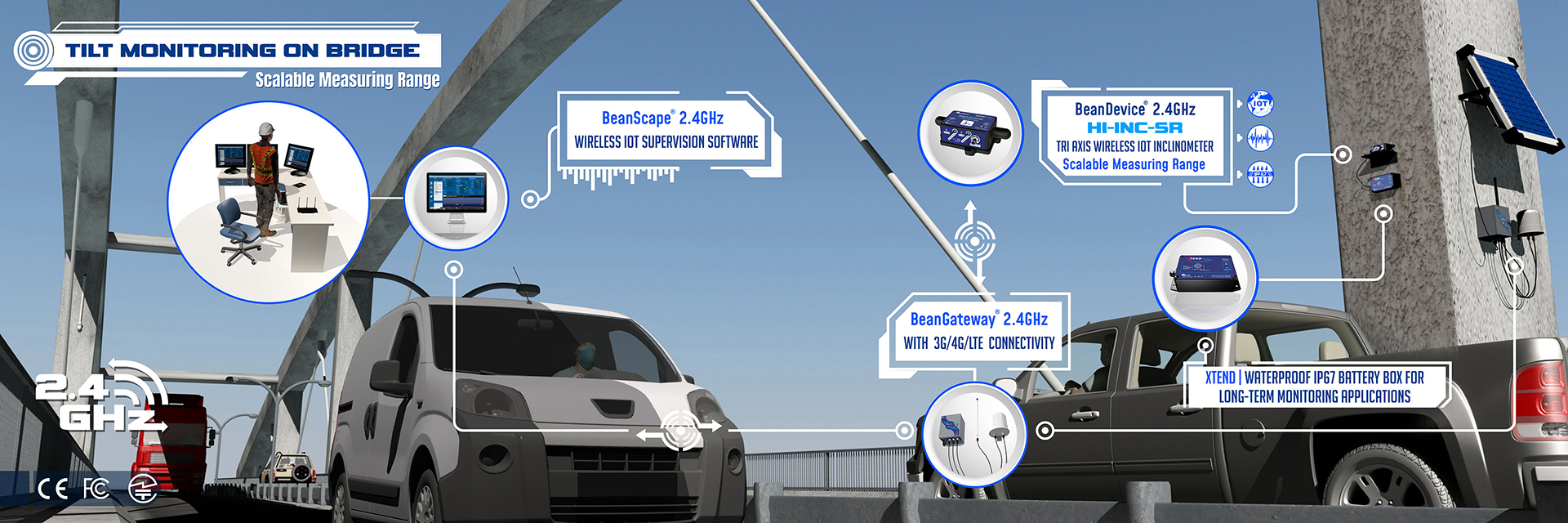

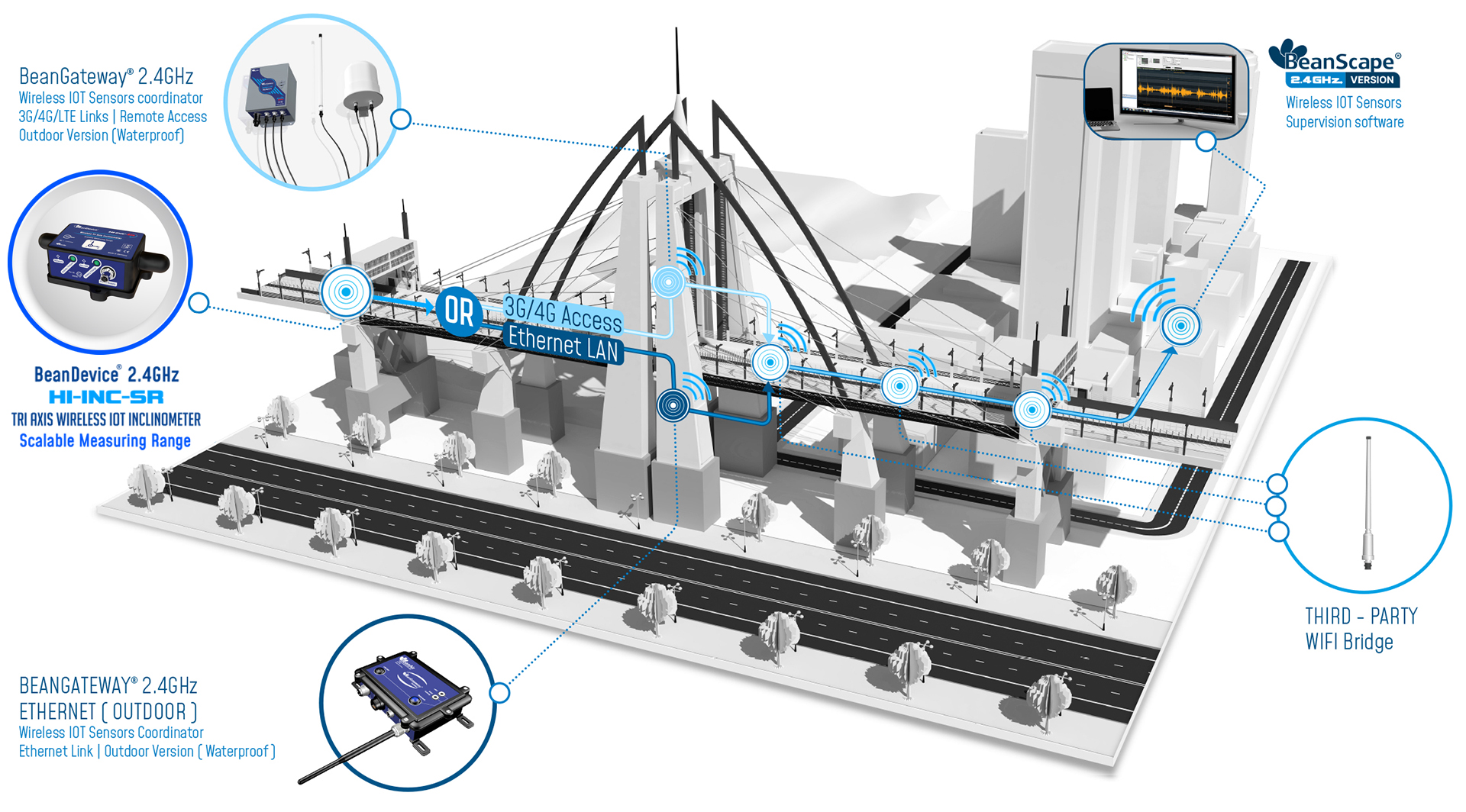

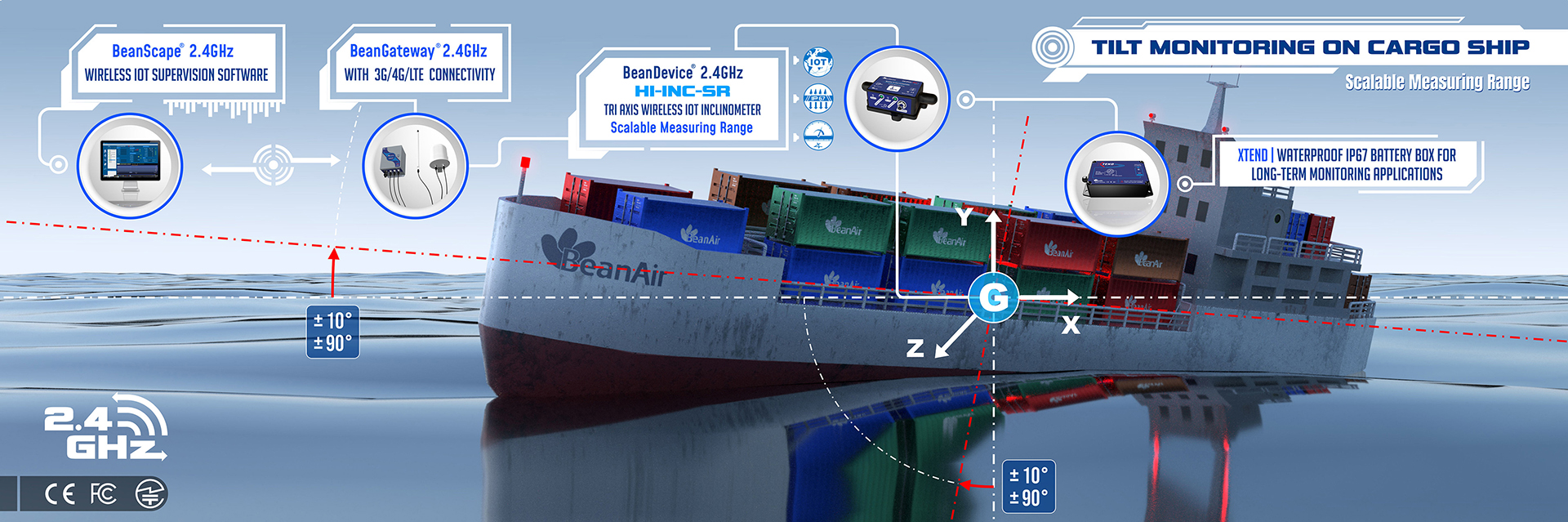

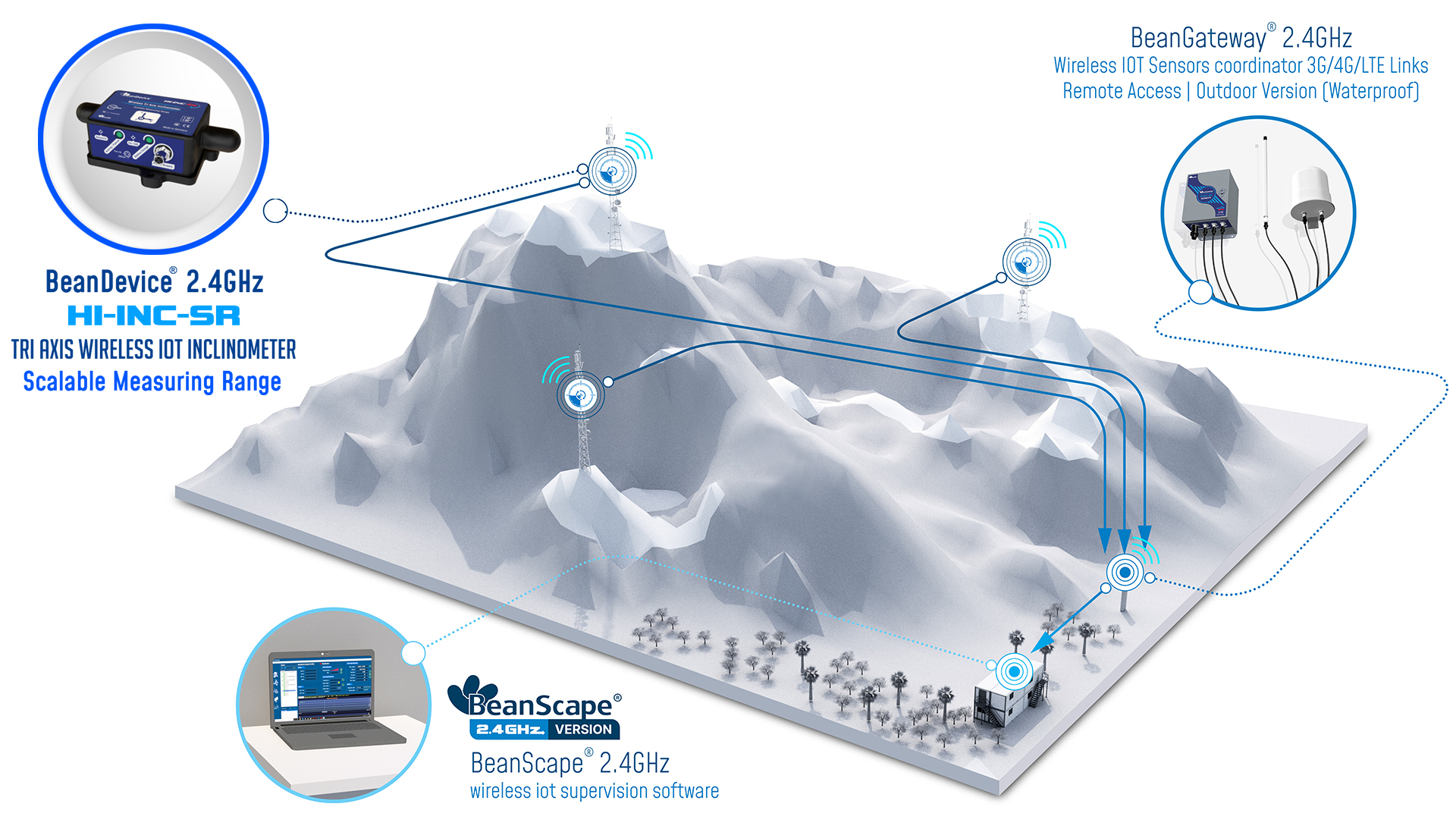

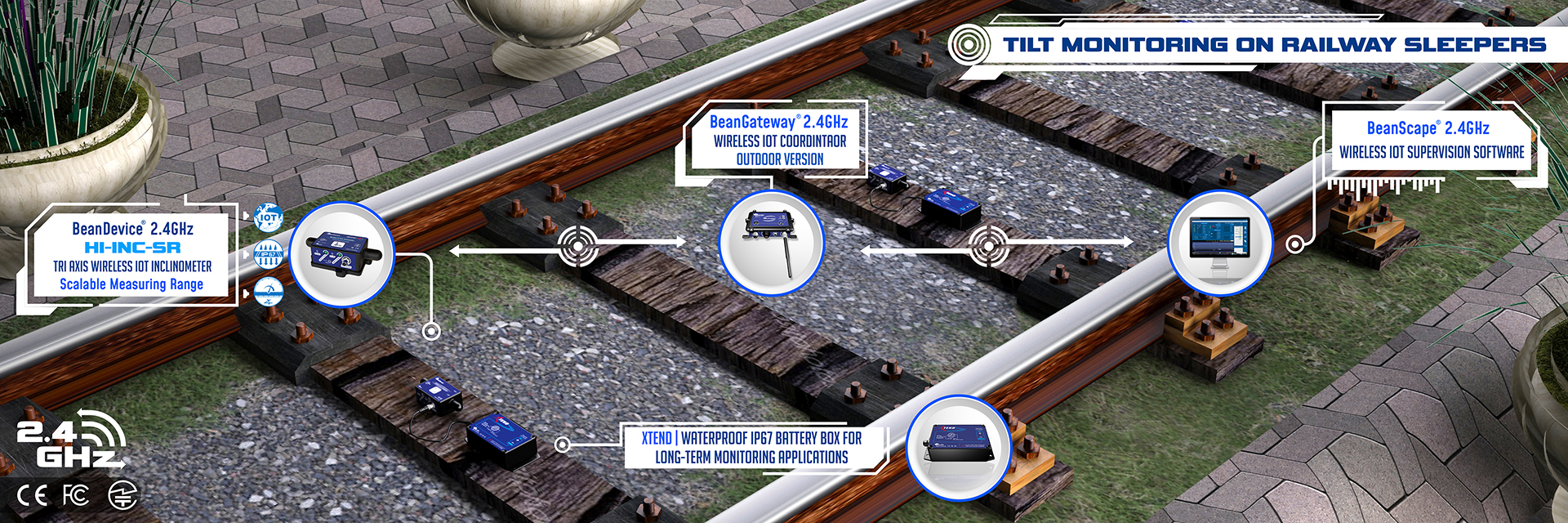

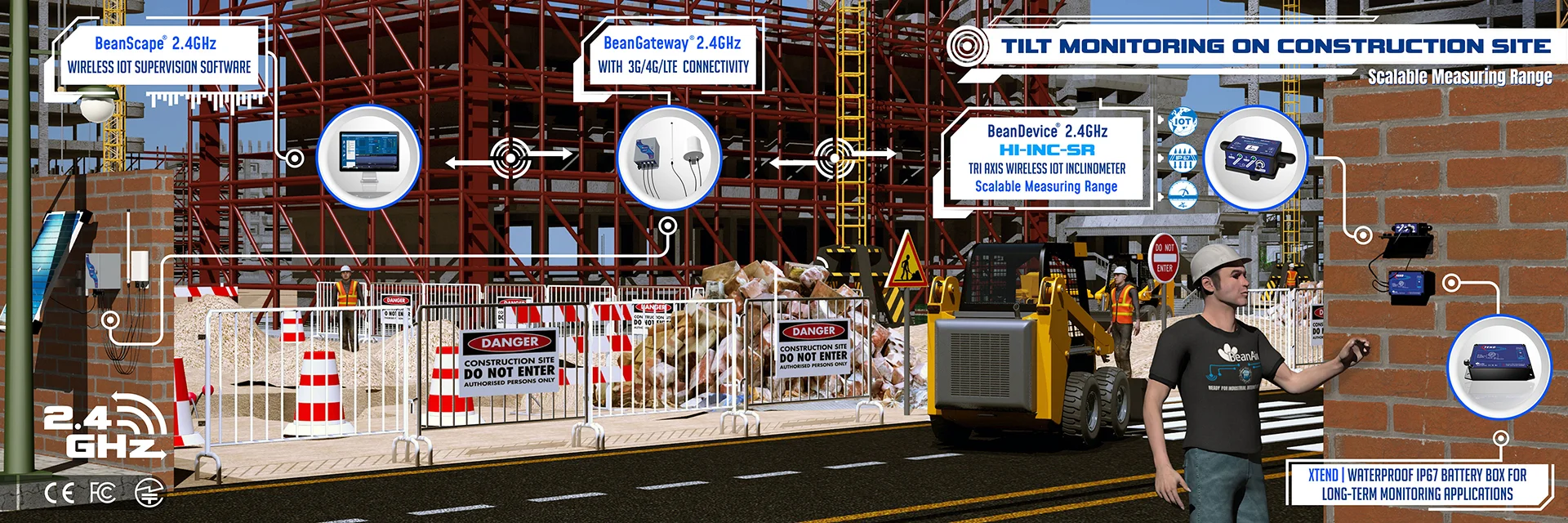

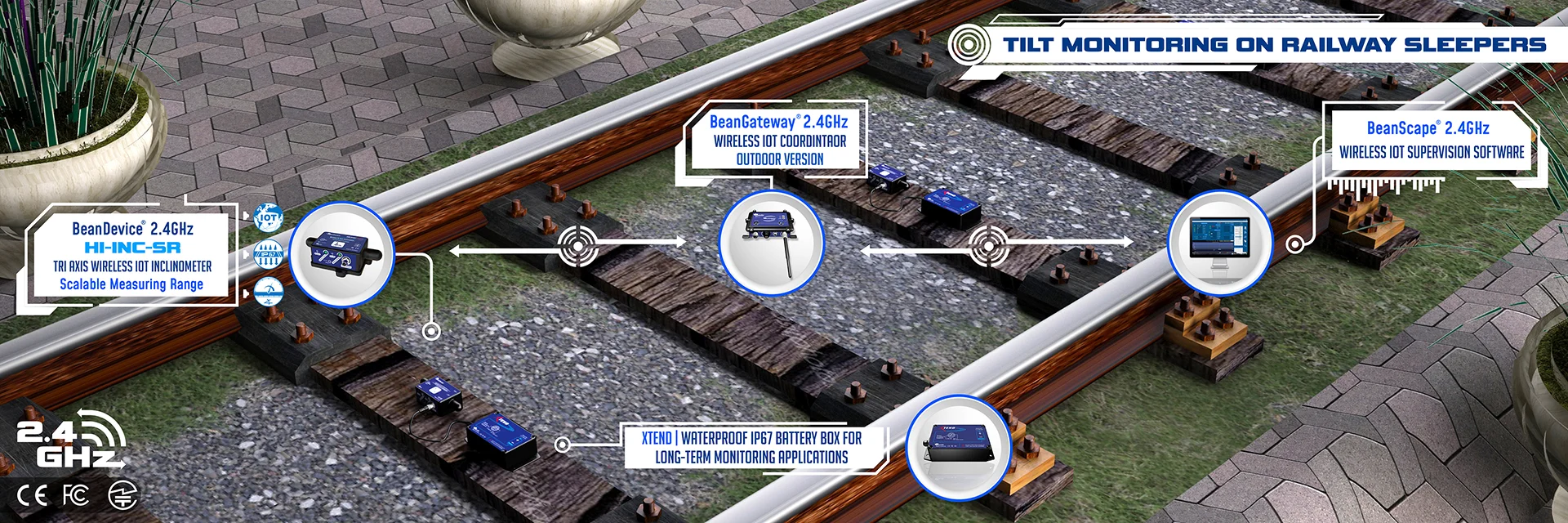

Bridge Monitoring Antenna Base Station Cargo Ship Monitoring Construction Site Railway Sleepers Monitorning

Video

WSN dedicated to Structural Health Monitoring

Product Video

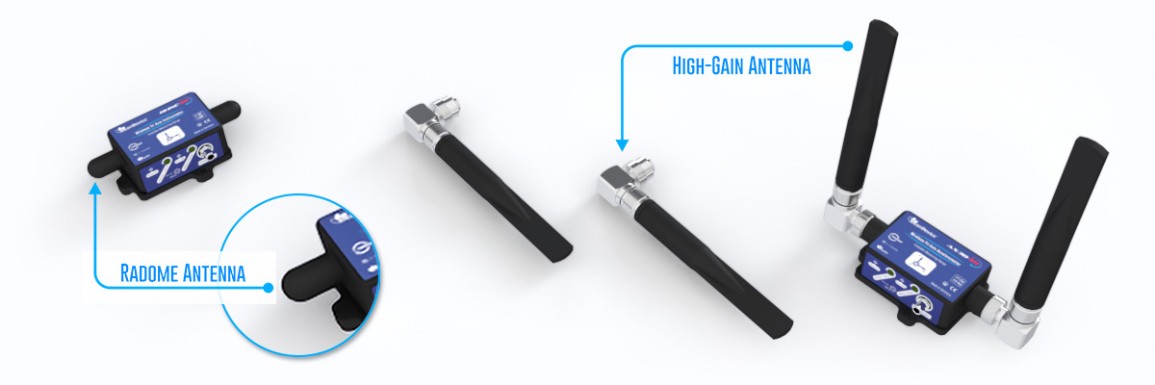

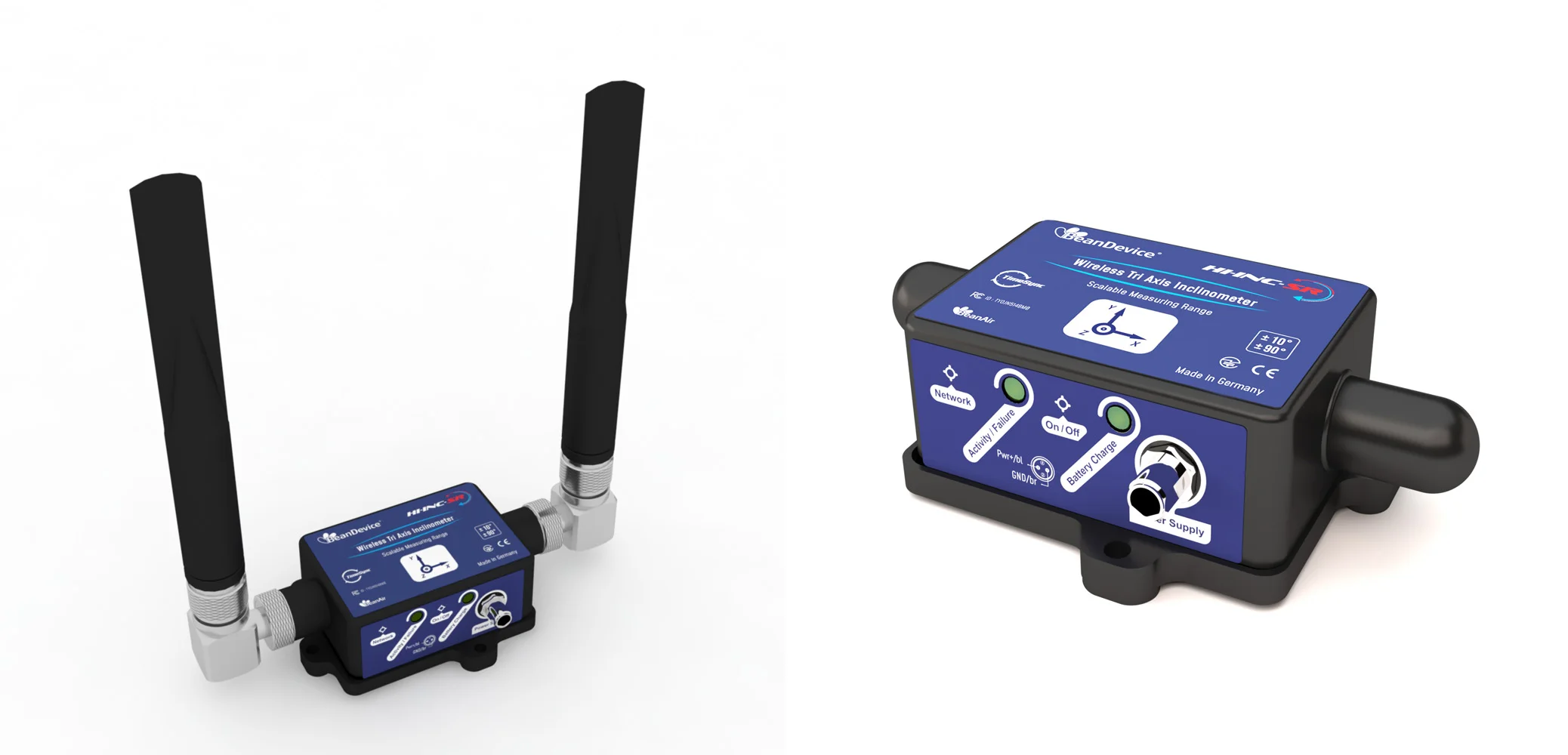

Antenna Options for Different Applications

Our antenna solutions are designed to provide reliable wireless connectivity across a variety of operational environments:
• Radome Antenna:
This compact antenna is perfectly suited for applications with space constraints, offering robust performance without requiring a large footprint.
-Typical Wireless Range:
150m (Line of Sight*) | 30-60m (Non-Line-of-Sight)
• High-Gain Antenna:
Optimized for maximum reach, this antenna is the premier choice for long-distance data transmission, ensuring signal integrity over extended areas.
-Typical Wireless Range:
400m (Line of Sight*) | 60-120m (Non-Line-of-Sight)

*Line-of-Sight (LOS) range is based on field tests conducted with the device antenna oriented vertically and a BeanGateway® installed on a 10-meter mast utilizing a 9dBi antenna.

Software and Integration

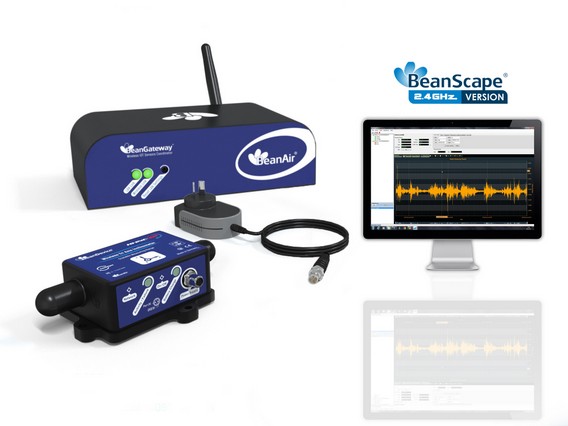

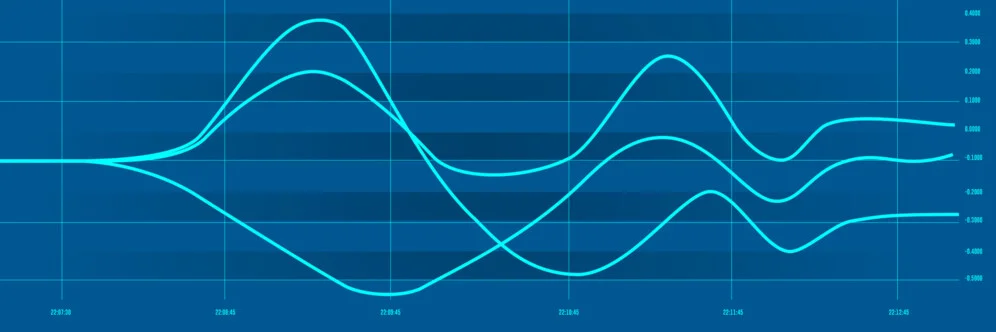

The BeanDevice® HI-INC SR comes with a complimentary version of BeanScape® 2.4GHz Lite, offering:

• Real-time data visualization for quick, on-the-spot monitoring.

• Data logging and backups in CSV format, enabling easy analysis and reporting.

For seamless integration with third-party systems, users can utilize:

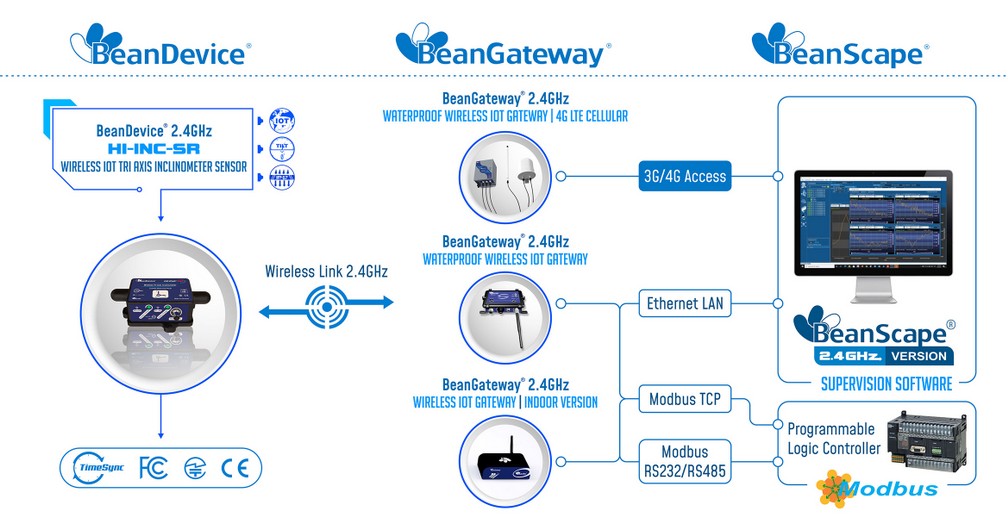

• Modbus TCP/RTU/ASCII protocol (via BeanGateway®).

Mounting Options for Every Environment

Deploy your sensor faster and smarter with our versatile mounting solutions—engineered for any surface, any environment, and zero installation hassle.
Standard Screw Mounting Base
• Permanent & secure for long-term applications.
• Ideal for industrial, outdoor, or high-vibration setups.
Dual-Mode Base (Add -M to Product Code)
• Magnetic + screw in one—no extra parts needed.
• Snap on magnetically (10+ kg hold) or screw for permanence.
• Perfect for fast deployments or reusable setups.

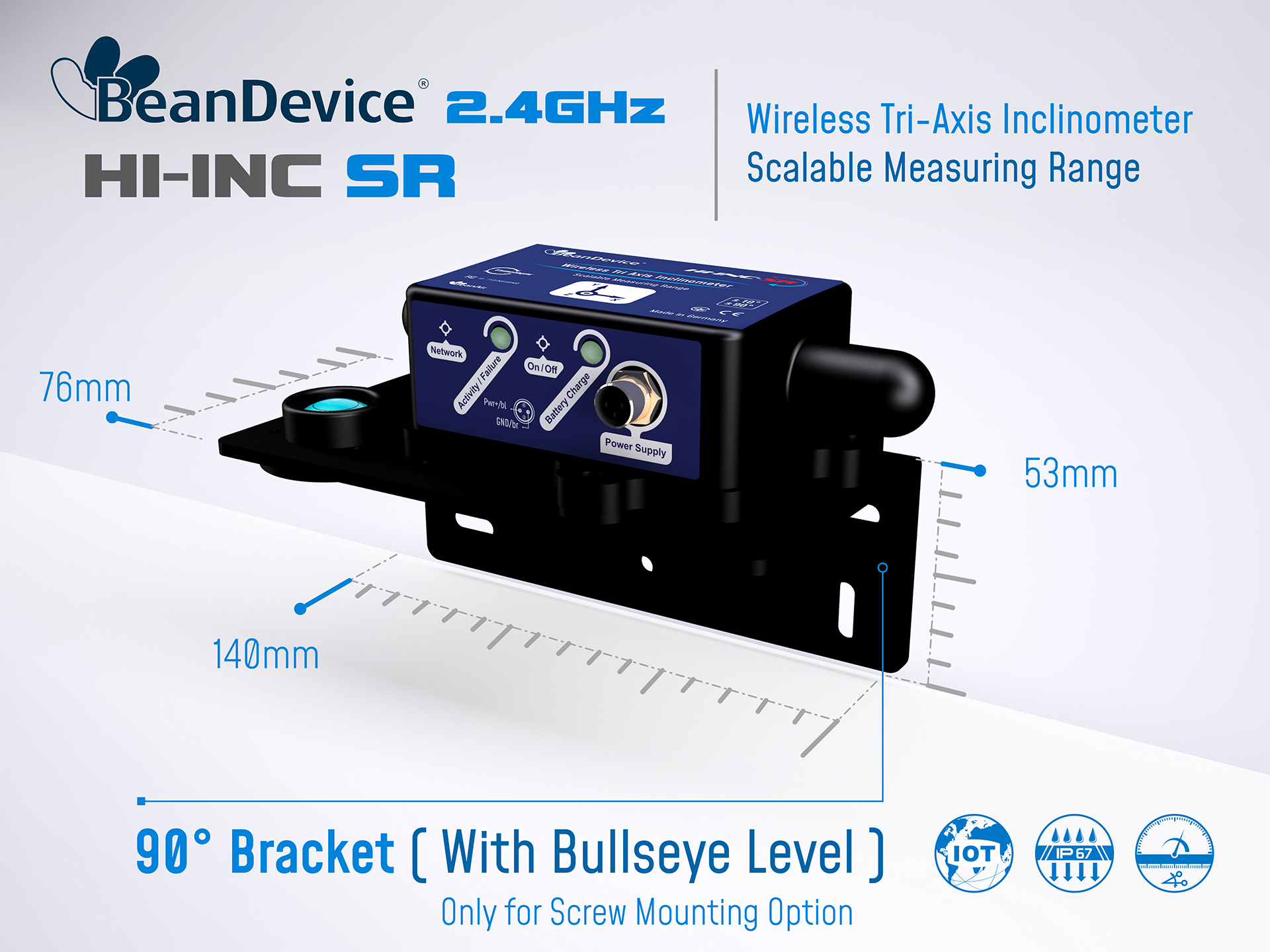

Optional: 90° Wall Bracket with Bullseye
• Precision alignment for vertical/wall mounting.
• Compatible with both mounting bases.

Accessories

INCLUDED ACCESSORIES

M8 plastic cap

1 x M8 Cap for Power Supply

Magnet for Power ON | Power OFF

1pcs Magnet.

OPTIONAL ACCESSORIES AND SERVICES

Standalone Solar System

High efficiency solar panel with Solar charging controller and Lead-acid battery

Ref: X-SOL-14AH-20W-4CH-4V-5M for XT version

Ref: X-SOL-14AH-20W-4CH-12V-5M for RB version

Ref: X-SOL-14AH-80W-4CH-4V-5M for XT version

Ref: X-SOL-14AH-80W-4CH-12V-5M for RB version

Ref.: X-SOL-7AH-20W-4V-5M for XT version

Ref.: X-SOL-7AH-20W-12V-5M for RB version

More options and references are available on X-SOLAR datasheet

Molded Cable, M8 Male Plug to Bare wire

For sensor power supply (8-28VDC)

Material: PVC

IP Rating : Waterproof-IP67 ( M8 Plug side in locked conditions )

Cable length: 2 meters , Ref: CBL-M8-2M

Cable length : 5 meters, Ref: CBL-M8-5M

Cable length: 10 meters, Ref: CBL-M8-10M

Mechanical Mounting Options

• 90° Bracket for BeanDevice

(Xrange smartsensor) with 4 x M5 screws + Locknut

Ref: SMART-BRACK-MNT

Switch-Mode Power Supply 12V with M8-3Pins plug

Power supply complies with IS 13252 (Part 1)/IEC 60950

1-Safety Standards

Cable Lenght: 1.5meters

IP Rating : Waterproof-IP67 ( M8 Plug side in locked conditions )

Ref: M8-PWR-12V

External Primary Cell in a Waterproof IP67 Casing

Waterproof IP67 battery box for long-term monitoring applications

IP67 Battery Holder + Battery Pack with 3 x 6500mAh Li-SOCL2 Lithium Primary cell (Capacity 3x 6.5Ah)

Ref: PRIM-XTEND

Compatible with :

BND-2.4GHZ-HI-INC-SR-10T-XT-MM & BND-2.4GHZ-HI-INC-SR-10T-XT-SCM

Calibration Certificate

Calibration certificate provided by Beanair GmbH

A static calibration method is used on a granite surface plate DIN876

Ref: CERT-CAL-SMART

Download Resources

Presentation SR Sub Series users

Drawing

Battery Life simulation - 2.4GHZ Sensors

Datasheet

Selection Guide

Quick Start

Inclinometer IOT Sensor repeatbility Test Report

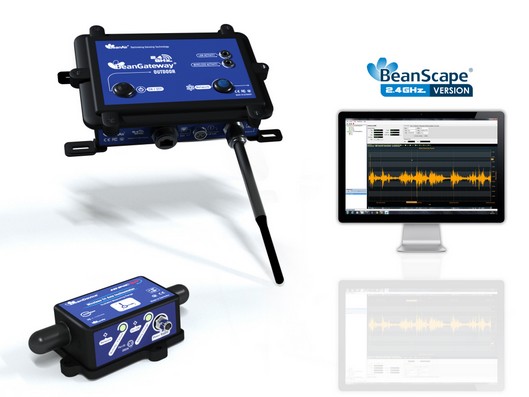

StarterKit BeanGateway®Outdoor + Beandevice® 2.4GHZ Tri-axis-inclinometer-Sensor-HI-INC-SR-10T with Radome Antenna 1.9dBi

StarterKit BeanGateway®Outdoor + Beandevice® 2.4GHZ Tri-axis-inclinometer-Sensor HI-INC-SR-10T-HG with HG Antenna 5dBi

User GUIDE

Step File

StarterKit BeanGateway® Indoor + Beandevice® 2.4GHZ Tri-axis-inclinometer-Sensor-HI-INC-SR-10T with Radome Antenna 1.9dBi

StarterKit BeanGateway® Indoor + Beandevice® 2.4GHZ Tri-axis inclinometer Sensor HI-INC-SR-10T-HG with HG Antenna 5dBi

Calibration Files

Technical & Product FAQ

Support

SUPPORT MANUAL

Do you need help with any of our SATEVIS® products ?

Contact our Technical Support >

2 YEAR LIMITED WARRANTY

We’re confident of the quality of our products and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.

PRODUCT REFERENCE
BND-2.4GHZ-HI-INC-SR-MR-PS-MO-HG
MR – Measurement Range: - 10T : Tri-axis ±10° / ±90°	PS - Power supply : - RB : Internal rechargeable battery - XT : External power supply 4VDC ( Compatible with X-SOLAR-4VDC and PRIM-XTENDER)	MO - Mounting Option SCM - Screw Mounting base MM - Magnetic Mounting base	HG: High Gain External Antenna 5dBi If this field is left blank,Integrated Radome Antenna will be provided
Example 1: BND-2.4GHZ-HI-INC-SR-10T-SCM, High performance wireless Tri-axis inclinometer with ±10°/±90° measurement range, internal rechargeable battery, Screw mounting , Integrated Radome Antenna Example 2: BND-2.4GHZ-HI-INC-SR-10T-XT-MM, High performance wireless Tri-axis inclinometer with ±10°/±90° measurement range, external power supply, Magnetic Mounting, Integrated Radome Antenna Example 3: BND-2.4GHZ-HI-INC-SR-10T-SCM-HG, High performance wireless Tri-axis inclinometer with ±10°/±90° measurement range, internal rechargeable battery, Screw mounting , External High Gain Antenna
Stock Status : Available
Where to Buy ?

Sensor specifications
Inclinometer technology	Accurate and low power MEMS technology
Scalable Measuring Range	user-seletctable range ±10° or ±90°, with automatic range adjustment depending on the application
Sensor resolution	0.0055°
Noise density	for ±10° range : 0.0007 °/√Hz on Y Axis, 0.008 °/√Hz on X, Z Axis for ±90° range : 0.0012 °/√Hz on all axis
Sensor precision (full scale, @ 25°C, Static Measurement Mode every 2s)	±0.01° for ±10° measurement range ±0.02° for ±90° measurement range
Sensitivity temperature dependency (temperature range –25°C to +85°C)	±0.1 %
Offset LifeTime Drift (@25°C) ±0.23 ° Sensor	±0.08 °
Sensor frequency Response (-3 dB)	DC to 10 Hz for ±10° measurement range DC to 40 Hz for ±90° measurement range (Automatic Range) DC to 70 Hz for ±90° measurement range
Calibration	Factory calibrated for ±10° range and ±90° with calibration settings backed up on the sensor Flash memory. Calibration method used : Back-to-back calibrated with a reference sensor. Re-calibration procedures are available on our website, and sensor can be re-calibrated by the user or with an external Lab.

Integrated Temperature sensor
Temperature Range	-40°C to +60°C
Measurement resolution	±0.06°C
Sensor Precision	±1°C

Configurable settings from the BeanScape® 2.4GHz software
Data Acquisition mode (SPS = sample per second)	Static Data Acquisition: Low Duty Cycle Data Acquisition (LDCDA) and Alarm Mode (based on alarm thresholds) . Measurement heartbeat 1s to 24 hour Dynamic data acquisition(not available on devices with ref. extension XT ): Streaming and S.E.T. (Streaming with Event Trigger) Mode
Alarm Threshold	Three-level alarms : Alert < Action < Alarm
Sampling Rate (in streaming and S.E.T mode)	Minimum: 1 SPS Maximum: 20 SPS on each axis , for ±10° measurement range (Static and Auto Range) , for ±90° measurement range (Auto Range) , Maximum: 80 SPS on each axis , for ±90° measurement range (Static Range)
Scalable Mesurement Range	±10° , ±90° and automatic ±10°/±90°
Power Mode	Battery saver mode & Active power mode (not available on XT version, External power supply)

RF Specifications
Wireless Protocol Stack	Ultra-Power and license-free 2.4Ghz radio technology (IEEE 802.15.4E)
WSN Topology	Point-to-Point / Star
Data rate	250 Kbits/s
RF Characteristics	ISM 2.4GHz – 16 Channels. Antenna diversity architecture designed by BeanAir®
TX Power	+18 dBm
Receiver Sensitivity	-104 dBm
Maximum Radio Range	High Gain Antenna : 400m max (L.O.S, Antenna Pointing to Vertical position, BeanGateway Installed on a mast 10 meters height), 60-120m (N.L.O.S.) Integrated Radome Antenna : 150m max (L.O.S, Antenna Pointing to Vertical position, BeanGateway Installed on a mast 10 meters height), 30-60m (N.L.O.S.)
Antenna	Antenna diversity : High Gain Antenna version : 2 x N-Type Antenna 5dBi , IP67 Radome Antenna version: 2 x Antenna 1.9 dBi , IP67
