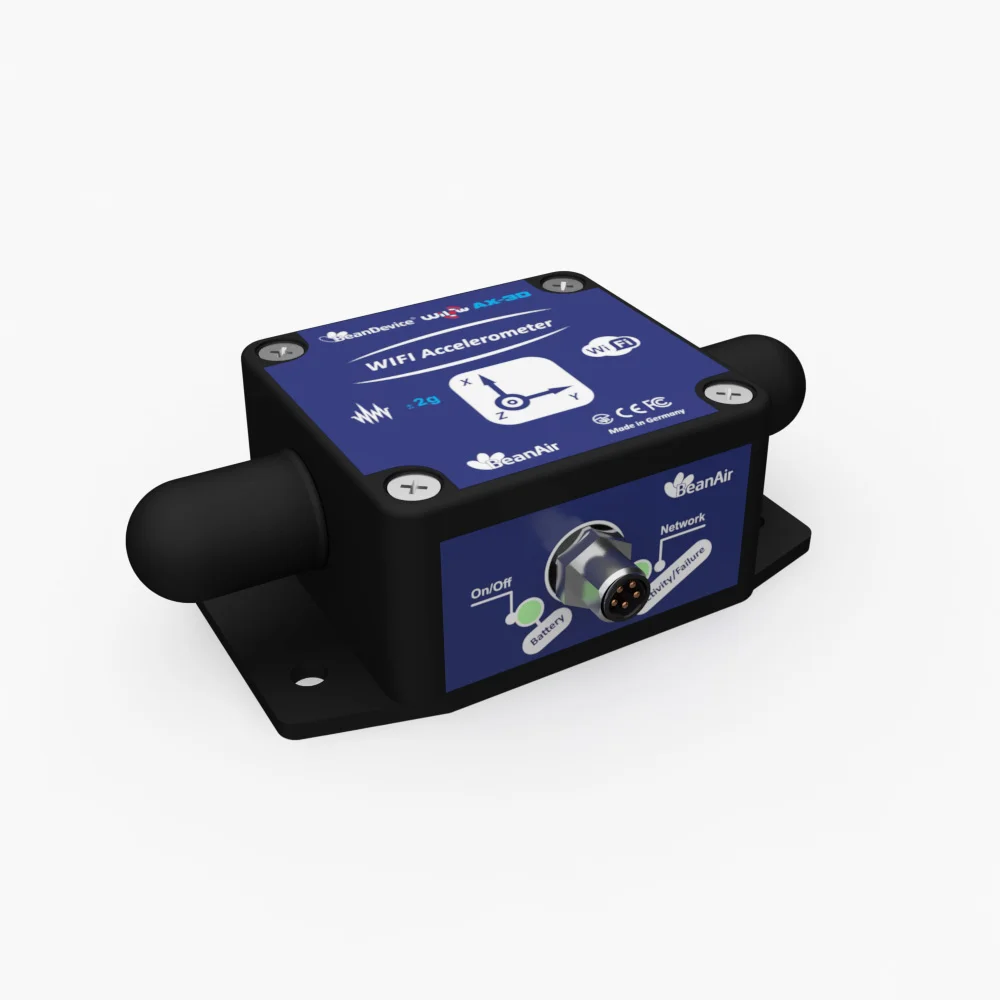

BeanDevice® WIFI | Wilow® AX-3D
Wireless IOT Vibration Sensor | Acceleration
Available with several measurements range (±2g), the BeanDevice® WIFI | WiLow® AX-3D is a ULP (Ultra-Low-Power) WIFIvibration sensor (acceleration, peak particle velocity and amplitude) with a built-in data logger.
Thanks to WIFI technology, this wireless IOT sensor can be used for dynamic measurement (up to 3kHz)without network bottleneck issues.
Characterized by a waterproof (IP67/Nema 6) and a lightweight aluminum casing (65x59x35mm, 220g), an ultra-low powermode (0.2mA in battery savermode), a built-in data logger which can reach 5 million data logs, as well as a tiny radome omni antenna enabling a maximum wireless range of 200 meters (L.O.S.), this outstandingULP WIFI accelerometer is dedicated to Structural Health Monitoring, Condition Monitoring and many kind of industrial monitoring applications.
While the clear majority of wireless IOT sensors are not suitable for harsh industrial environment, the BeanDevice® WIFI | WiLow® AX-3D integrates an innovative antenna diversity design, boosting the radio link quality in environments subject to random and diverse disturbances. The wireless range can be extended by adding third-party WIFI Repeaters.
● IOT Ready: integrates MQTT data exchange, an open-source Internet of Things (IOT) protocol. | ||
● High precision accelerometer (measurement range ±2g ) with FFT, PPV (Peak-Particle Velocity) and Amplitude calculations. | ||
● ULP (Ultra Low Power) Wifi technology. | ||
● Waterproof (IP67|NEMA 6) and Rugged aluminum casing. | ||
● Smart and Flexible power supply : Internal Rechargeable Lithium Battery (780 mAh) USB 5VDC power and optional auxiliary power supply 6-24VDC compatible with solar energy harvesting | ||
● Embedded data logger: up to 5 million data points (with events dating) | ||
● USB 2.0 link for device configuration (including firmware upgrade) | ||
● Excellent radio link relying on the radio antenna diversity designed by Beanair® | ||
● Virtual Inclinometer | ||
● Over the Air Firmware upgrade via WIFI | ||
● Store and Forward+: lossless data transmission |

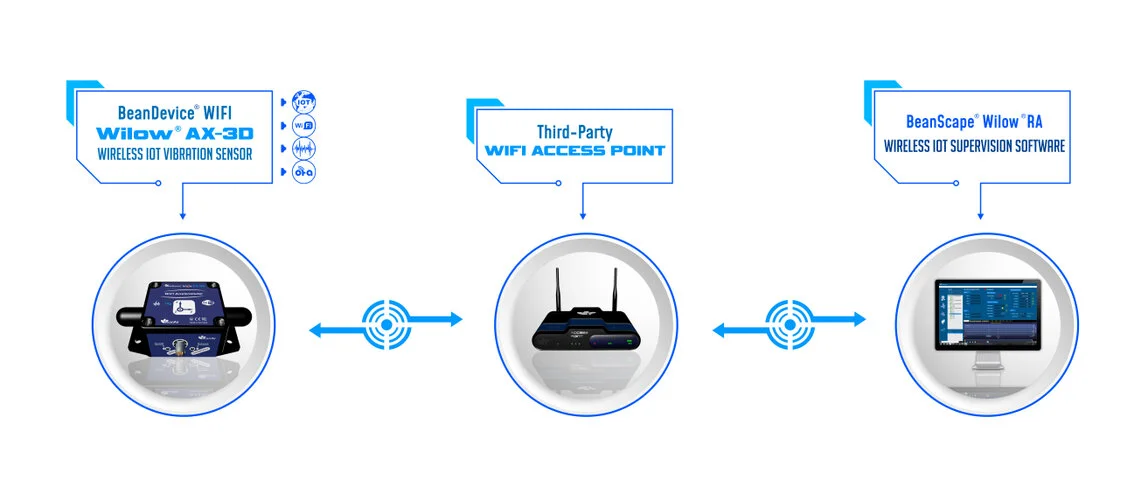

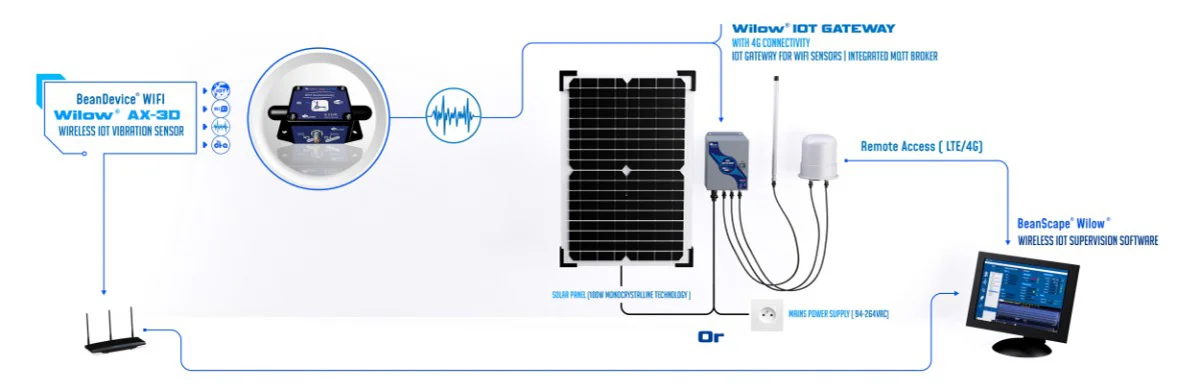

HOW IT WORKS ? | |
Wilow® sensors can easily work with a third-party WIFI access point. Just simply connect your PC/Laptop and your Beandevice Wilow® to your WIFI Access point, and start to receive real-time data stream on your own IOT software ( thanks to MQTT) or our supervision software (BeanScape® Wilow®). | |
 | |
By default , our Wilow® sensors are provided with a free version of our supervision software ( BeanScape® Wilow® Lite) , users can get an access to the IOT sensor Dashboard, visualize real-time graph display , configure MQTT framework and backup data measurement on a log file. | |
Technical Documents |

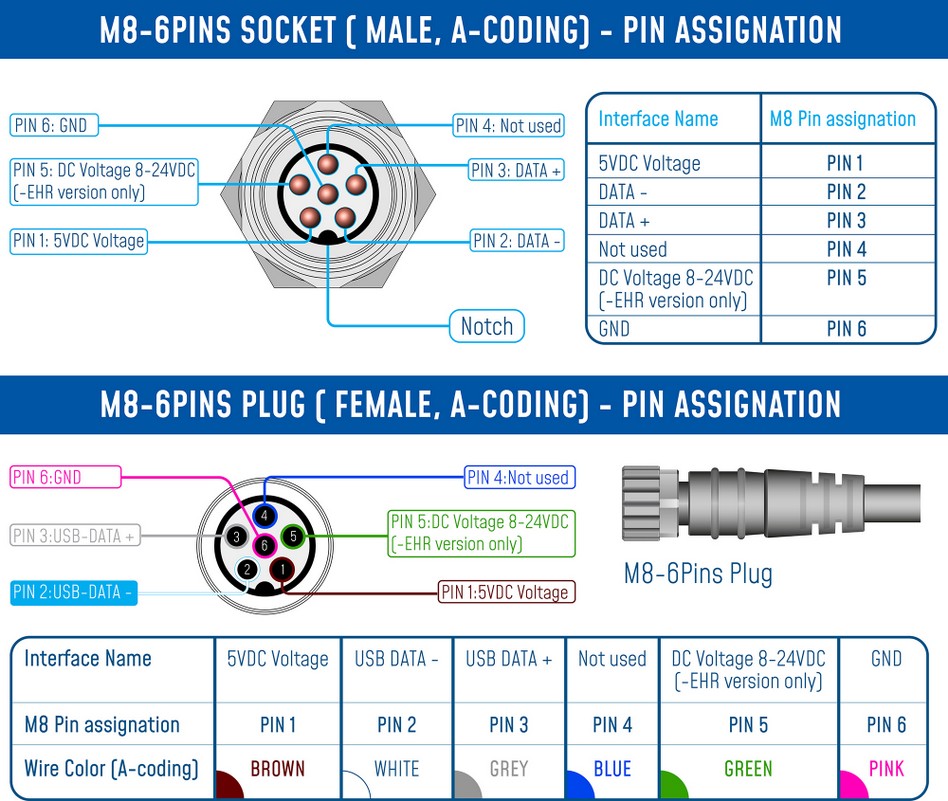

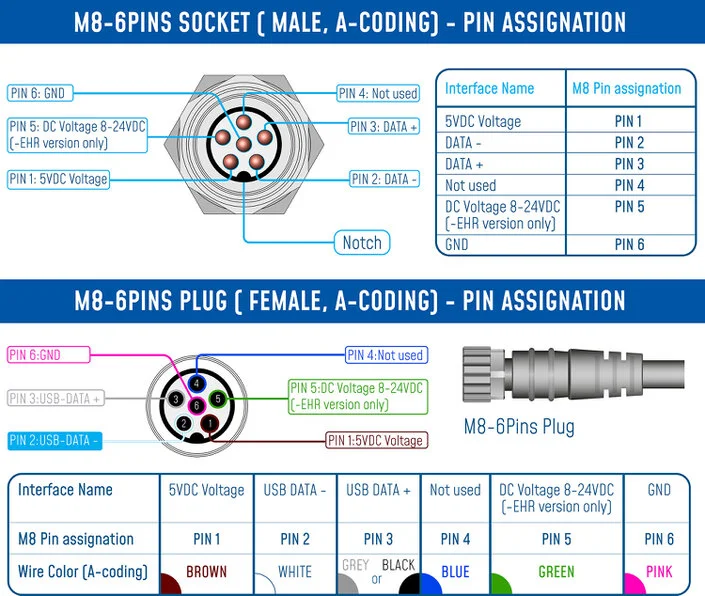

How to connect to external Power supply ? | ||
 | ||
PRODUCT REFERENCE | |||
BND-WILOW-WIFI-AX3D-MR-MO-EXPWR-HG | |||

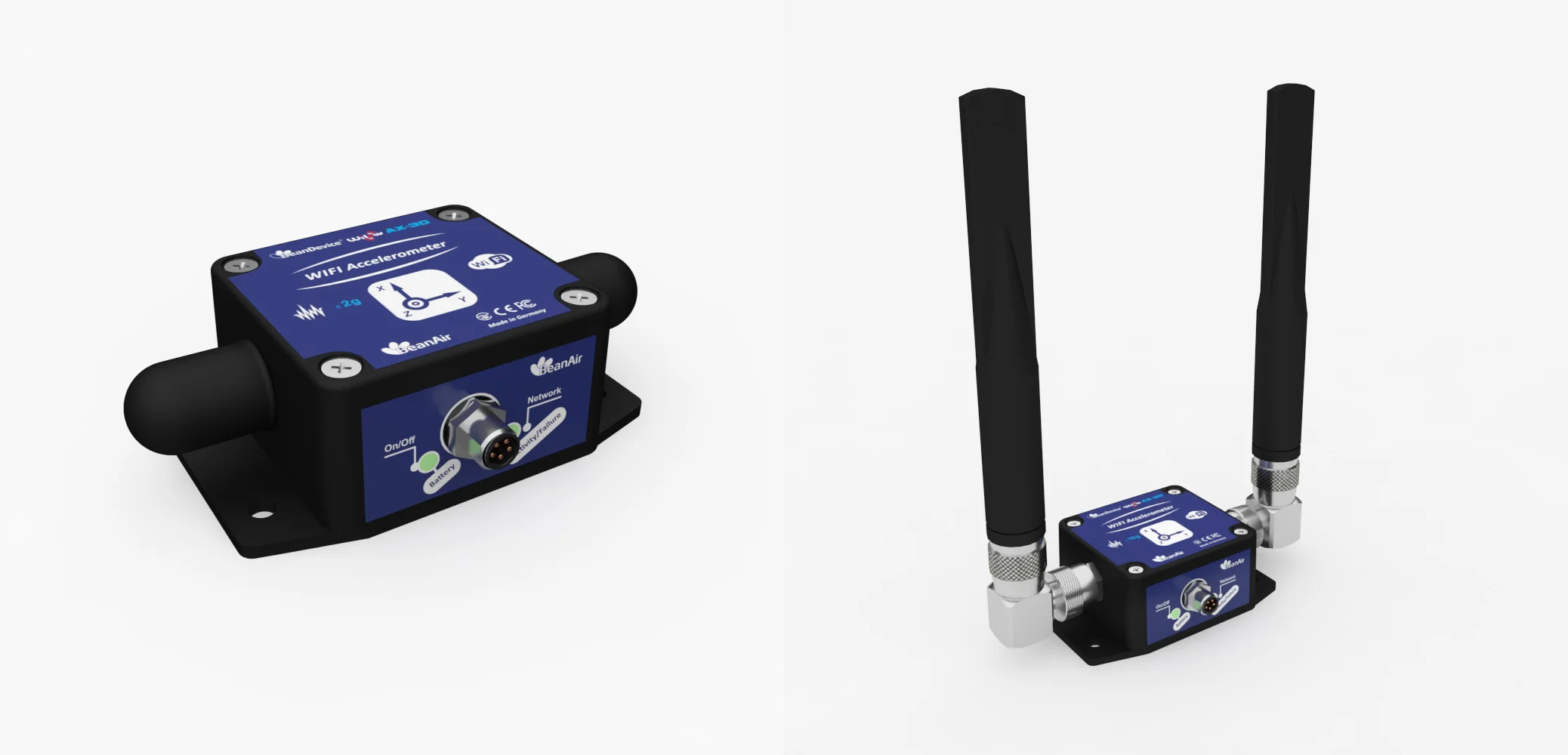

MR - Measurement Range: | MO - Mounting option | EXPWR -Auxiliary External Power supply | -HG - High Gain External Antenna 5dBi |
2G: ±2g measurement range | BR - 90° Mounting bracket | Leave it blank if auxiliary external power supply is not needed (only USB power +5VDC is available) | |
M - Magnetic Mounting | EHR - Auxiliary power supply compatible with solar energy harvesting 8-24VDC | ||
Example 1: BND-WILOW-WIFI-AX3D-2G-BR ULP WIFI accelerometer with ±2g range with 90° Mounting bracket | |||
Example 2: BND-WILOW-WIFI-AX3D-2G-M ULP WIFI accelerometer with ±2g range with magnetic mounting | |||
Example 3: BND-WILOW-WIFI-AX3D-2G-EHR ULP WIFI accelerometer with ±2g range, with auxiliary external Power supply compatible with Energy Harvesting 8-24VDC | |||
Example 4: BND-WILOW-WIFI-AX-3D-2G-HG - ULP WIFI bi-axis inclinometer (measurement range ±30°) with High Gain External Antennas | |||
 Stock Status : Available | |||
Advanced vibration analysis tools
The combination of a high-performance accelerometer and a 24-bit delta-sigma analog-to-digital converterenables a very low noise operation (45 µg/√Hz for the ±2g version).
A smart energy management (USB and Energy Harvesting) allows to power supply the BeanDevice® Wilow® from the internal Lithium-Polymer rechargeable battery, USB Power Bank or from a solar panel.
Store and Forward+, a lossless data transmission mechanism, enables alarge-scale deployment of WiLow® sensors on industrial applications where data transmission is critical.

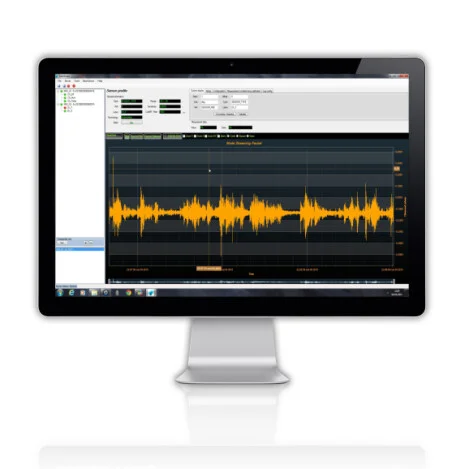

The BeanScape® Wilow® (only Premium and RA versions), a supervision software dedicated to our Wireless IOT sensors comes with a complete real-time vibration diagnostic and report:
• Real-Time vibration, FFT and Peak Particle Velocity display
• Advanced vibration analysis tool: FFT, PPV (Peak Particle Velocity) on the ±2g version only,
• Amplitude measurement for structure movement monitoring
• Automatic FFT and Peak Particle Velocity reports (meeting the DIN4150-3 standard)
• Alarm generation by email when a vibration threshold is reached
• Alarm generation by email when a vibration threshold is reached
Ready for IOT (Industrial Internet of things) applications, the BeanDevice® WIFI | WiLow® AX-3D integrates MQTT (Message Queuing Telemetry Transport) data frame, a lightweight and open-source Internet of Things protocol.
User can quickly setup an affordable and scalable IOT application, discover our MQTT Ecosystem: MQTT Toolkit for IOT Sensors
How to setup a remote access ?
Applications
Test and Measurement
Ground Vibration Monitoring
Condition Monitoring
Land Surveying
Structural Health Monitoring

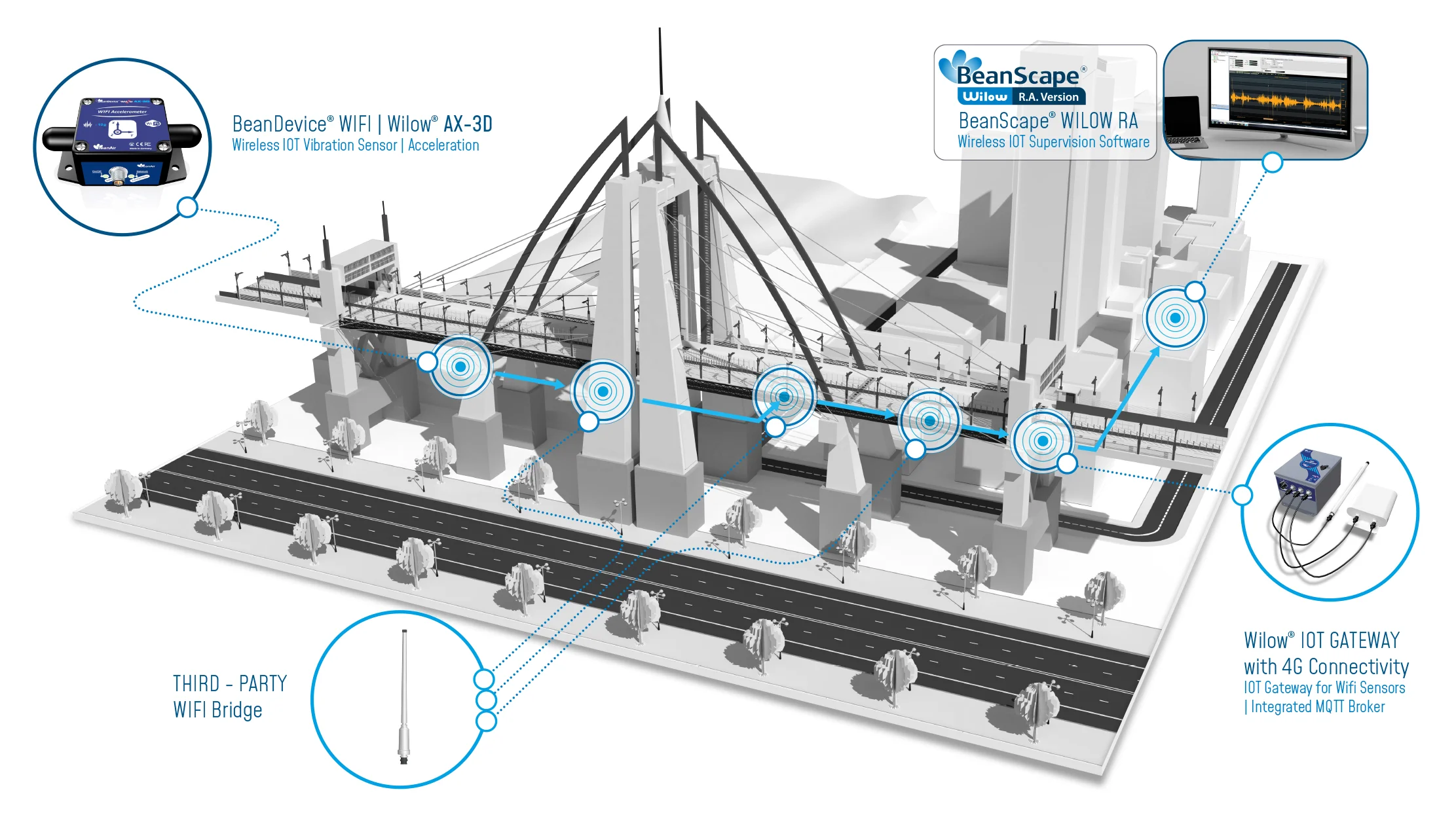

Vibration Monitoring on Bridge | |||
 |

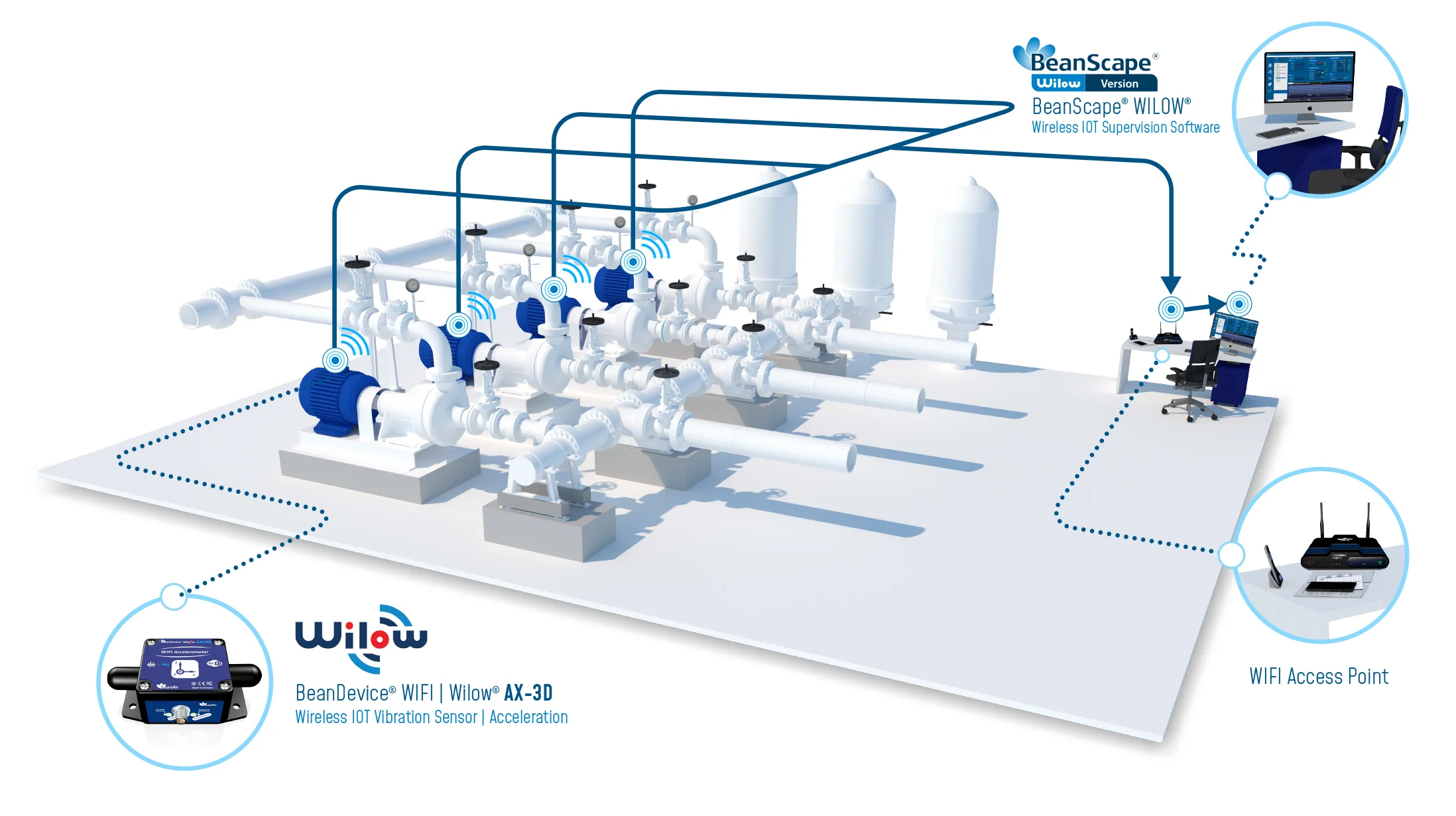

Vibration Monitoring on Water Pump | |
 | |

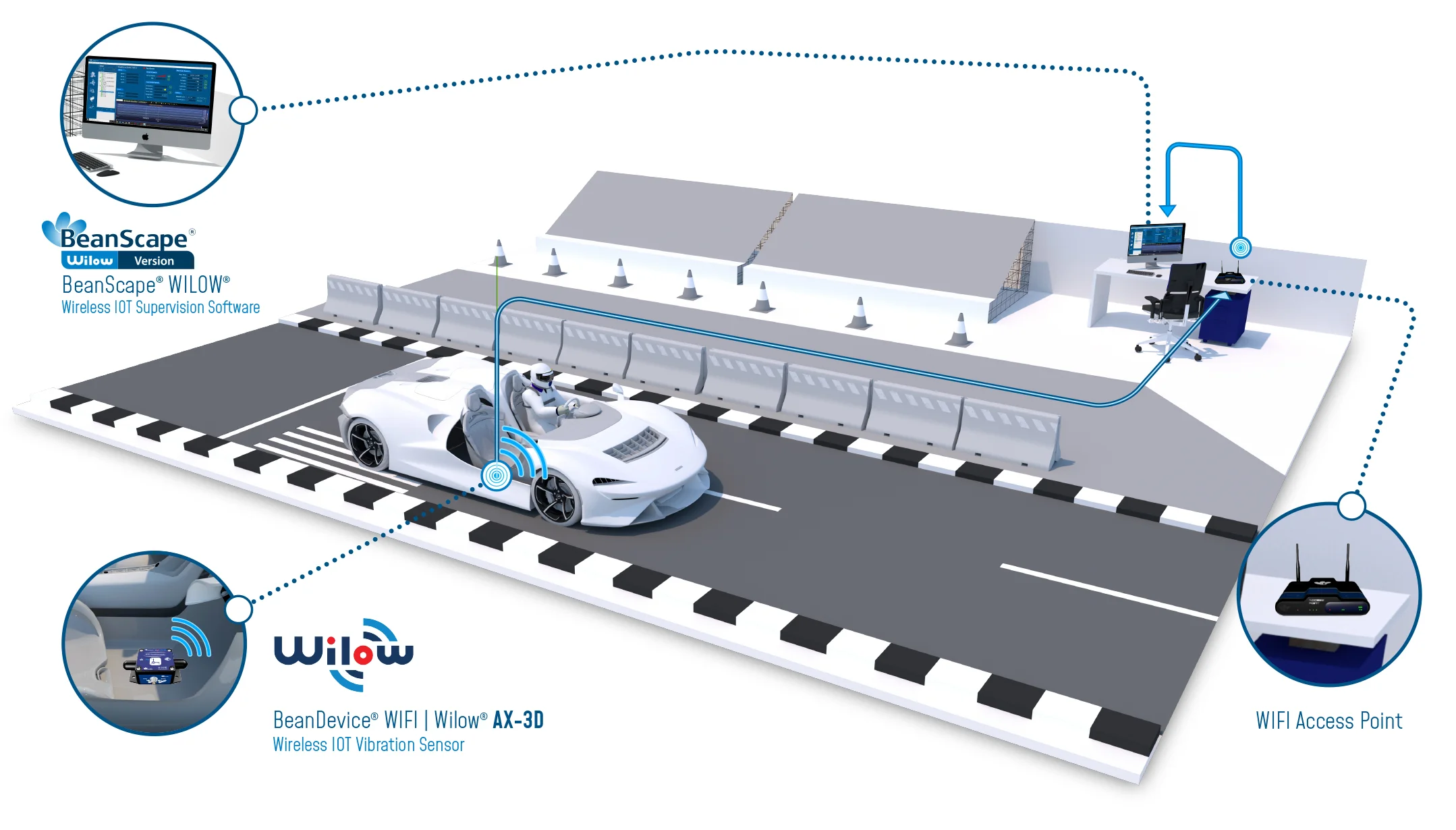

Automotive Testing | ||
 | ||

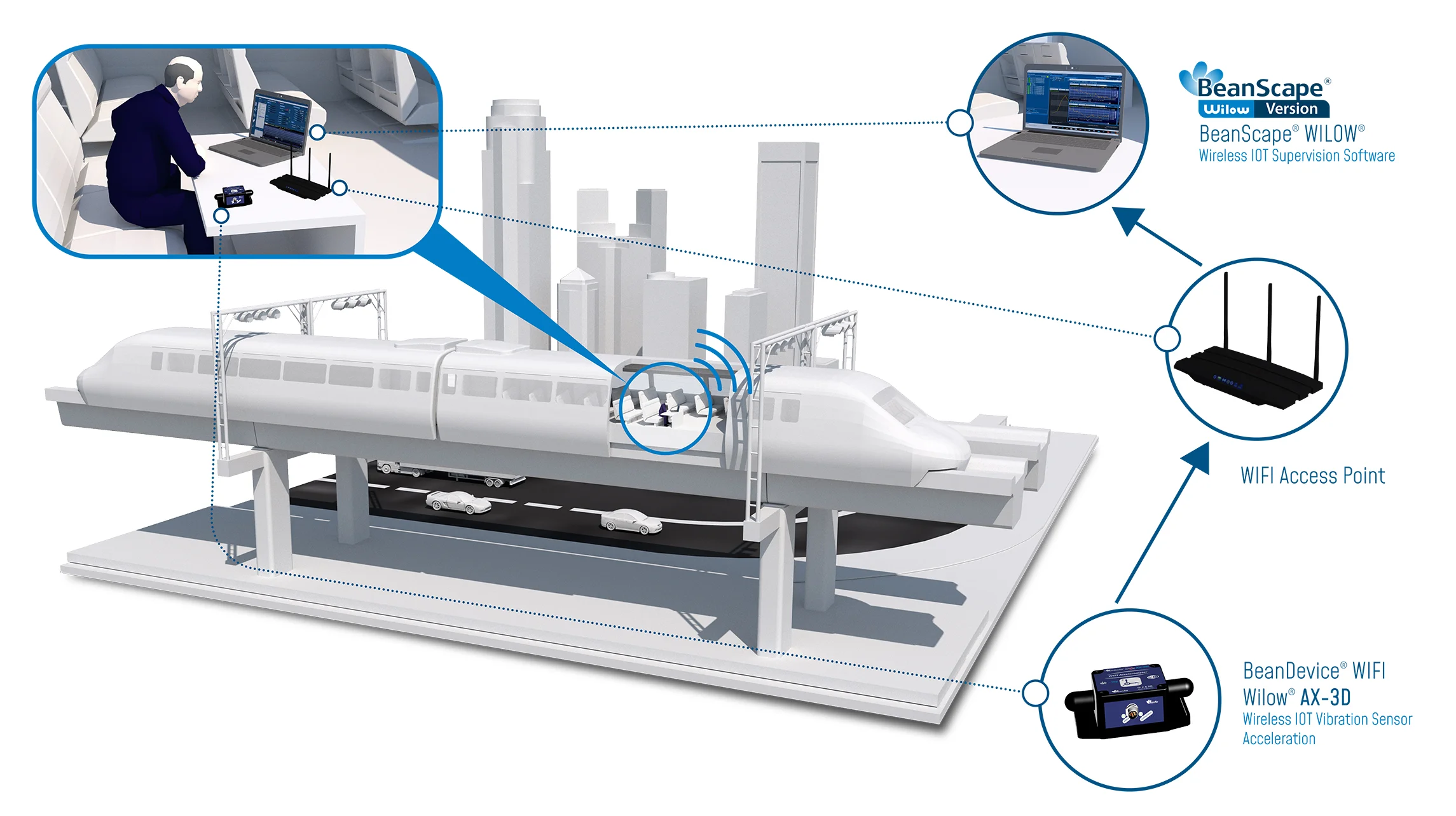

Vibration Monitoring on Train | ||
 | ||
